INVENTOR V5MDI32-18WiFiR/U5MRS32-18 Installations-Handbuch Seite 14

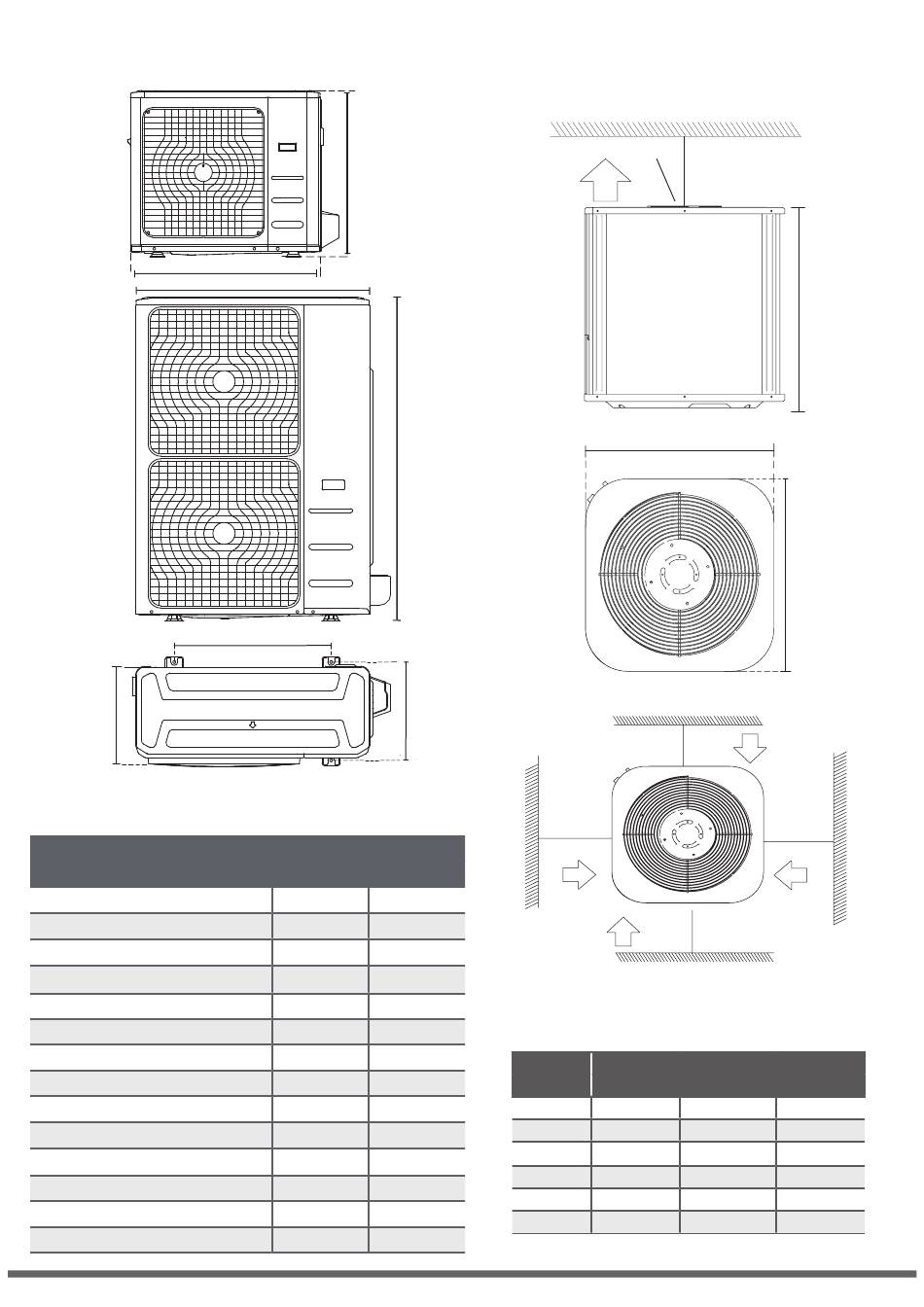

Split Type Outdoor Unit
(Refer to Fig 5.4, 5.5, 5.6, 5.10 and Table 5.1)
Fig. 5.4
Fig. 5.5
D
Fig. 5.6
Table 5.1: Length Specifications of Split
Type Outdoor Unit (unit: mm/inch)
Outdoor Unit Dimensions
W x H x D
760x590x285 (29.9x23.2x11.2)
810x558x310 (31.9x22x12.2)
845x700x320 (33.27x27.5x12.6)
900x860x315 (35.4x33.85x12.4)
945x810x395 (37.2x31.9x15.55)
990x965x345 (38.98x38x13.58)
938x1369x392 (36.93x53.9x15.43) 634 (24.96)
900x1170x350 (35.4x46x13.8)
800x554x333 (31.5x21.8x13.1)
845x702x363 (33.27x27.6x14.3)
946x810x420 (37.24x31.9x16.53)
946x810x410 (37.24x31.9x16.14)
952x1333x410 (37.5x52.5x16.14)
952x1333x415 (37.5x52.5x16.34)
Page 14
ƒ „
ƒPage 14
„
H
W
W
A
Mounting Dimensions
Distance A Distance B
530 (20.85) 290 (11.4)
549 (21.6) 325 (12.8)
560 (22) 335 (13.2)
590 (23.2) 333 (13.1)
640 (25.2) 405 (15.95)
624 (24.58) 366 (14.4)
404 (15.9)
590 (23.2) 378 (14.88)
514 (20.24) 340 (13.39)
350 (13.8)
540 (21.26)
403 (15.87)
673 (26.5)
403 (15.87)
673 (26.5)
404 (15.9)
634 (24.96)
404 (15.9)
634 (24.96)
Vertical Discharge Type Outdoor Unit
(Refer to Fig 5.7, 5.8, 5.9 and Table 5.2)
Fig. 5.7
H
Fig. 5.8
B
>45.7cm / 18"
Air inlet
Table 5.2: Length Specifications of Vertical
Discharge Outdoor Unit (unit: mm/inch)
MODEL
18
24
36
36
48
60
(Wall or obstacle)
Air Outlet
>152.4cm / 60"
W
(Wall or obstacle)
Air inlet
>45.7cm / 18"
>45.7cm / 18"
Air inlet
Air inlet
>45.7cm / 18"
Fig. 5.9
DIMENSIONS
W H
554/21.8 633/25
554/21.8 633/25
554/21.8 759/29.8
600/23.6 633/25
710/28 759/29.8
710/28 843/33
H
D
D
554/21.8
554/21.8
554/21.8
600/23.6
710/28
710/28
