Assembling the Device

NOTE!
■ Use only original spare parts from the manufacturer!
1. Carefully place all accessories on a level surface. As a precautionary measure, set
down a protective foil to prevent any damage to sensitive surfaces.
Attaching / removing the cleaning head and nozzles
08337_DE-EN-FR-NL_A5_V4.indb 22 08337_DE-EN-FR-NL_A5_V4.indb 22
22

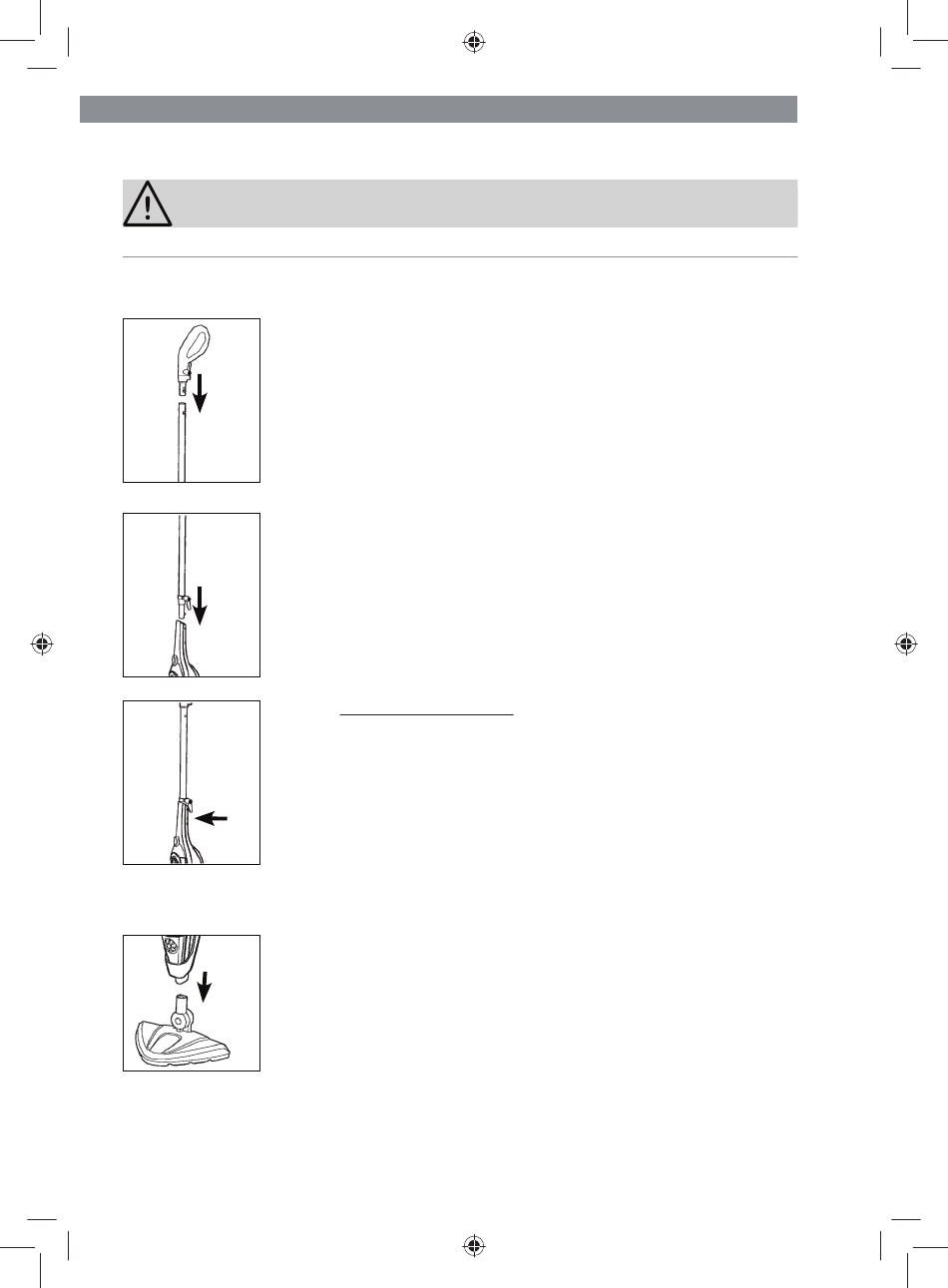

2. Insert the handle end piece (C) in the handle bar (B). If
applicable, depress the catch on the handle end piece so
that it fi ts into the handle bar. The catch must lock into
the handle bar opening. Turn the handle back and forth
for this.
3. Insert the end of the handle bar in the top opening of the
main unit (A).The handle bar must audibly lock into place.
To remove the handle bar depress the release button (14) and
pull the handle bar out at the same time.
4. Turn the top hook for winding up the cord (2) up and the
bottom one down and wind the power cord around both
hooks.
In order to quickly unwind the power cord again, turn the
top hook of the cord spool down.
• Insert the end piece of the cleaning head (N) in the steam
nozzle (9) of the main unit until the catch locks into the
opening next to the steam nozzle.
