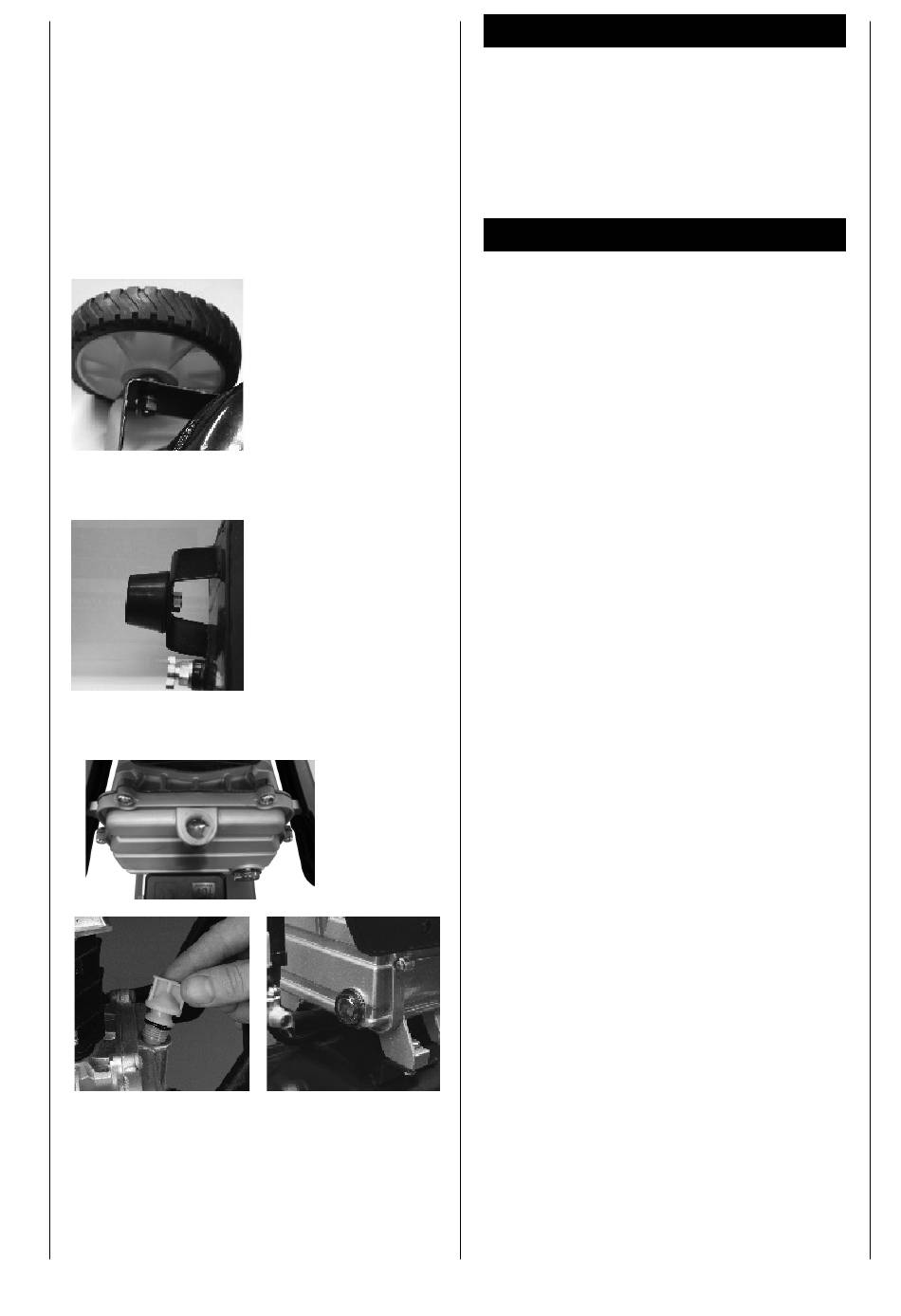

Fig. 2
Fig. 3
Fig. 4 -7
70 international
Unpacking
Due to modern series production it is improbable that
your compressor has any defects or that a part is miss-
ing. Should you note a fault, however, do not switch the
machine on before the parts are replaced or the fault has
been remedied. Not observing this instruction can lead to
serious injuries.
Assembly
Wheels, Fig. 2
1 For fixing the wheels (11), first put one axle pin through
the wheel. Then place the spacer washer to the under-
side of the wheel.
2 Fasten the wheel unit through the hole in the bracket
underneath the tank.
3 Fasten the flat washer, the split washer, and the nut.
Tighten the nut from the underside of the wheel and
attach the wheel cover.
4 Repeat the procedure for the second wheel.
Rubber feet, Fig. 3
Fix the rubber feet to the bracket on the front of the tank
using the screws, washers and nuts supplied.
Oil, Fig. 4 - 7
Warning: For the first use, check the oil level of the compres-
sor.
1. Operating the machine without oil will cause irreparable
damage and render the warranty invalid.
2 Remove the plastic oil inlet plug on top of the crank
box of the compressor casing.
3 Check the oil level in the sight glass. The oil level should
be in the centre of the red circle.
4
Attach the closing plug, which is included and pull it tight.
