�.5

Device description

The KTS 200 is a modular, portable diagnostic system
for control unit diagnosis that can be used anywhere.
The KTS 200 contains a computer unit with memory
card and a 3.5 inch LCD display. The KTS 200 control
unit diagnosis software is pre-installed on the memory
card in the factory.
The selection and function keys located next to the LCD
display are used to operate the unit.
The KTS 200 and the accessories are housed in a
protective case.
3
4
6

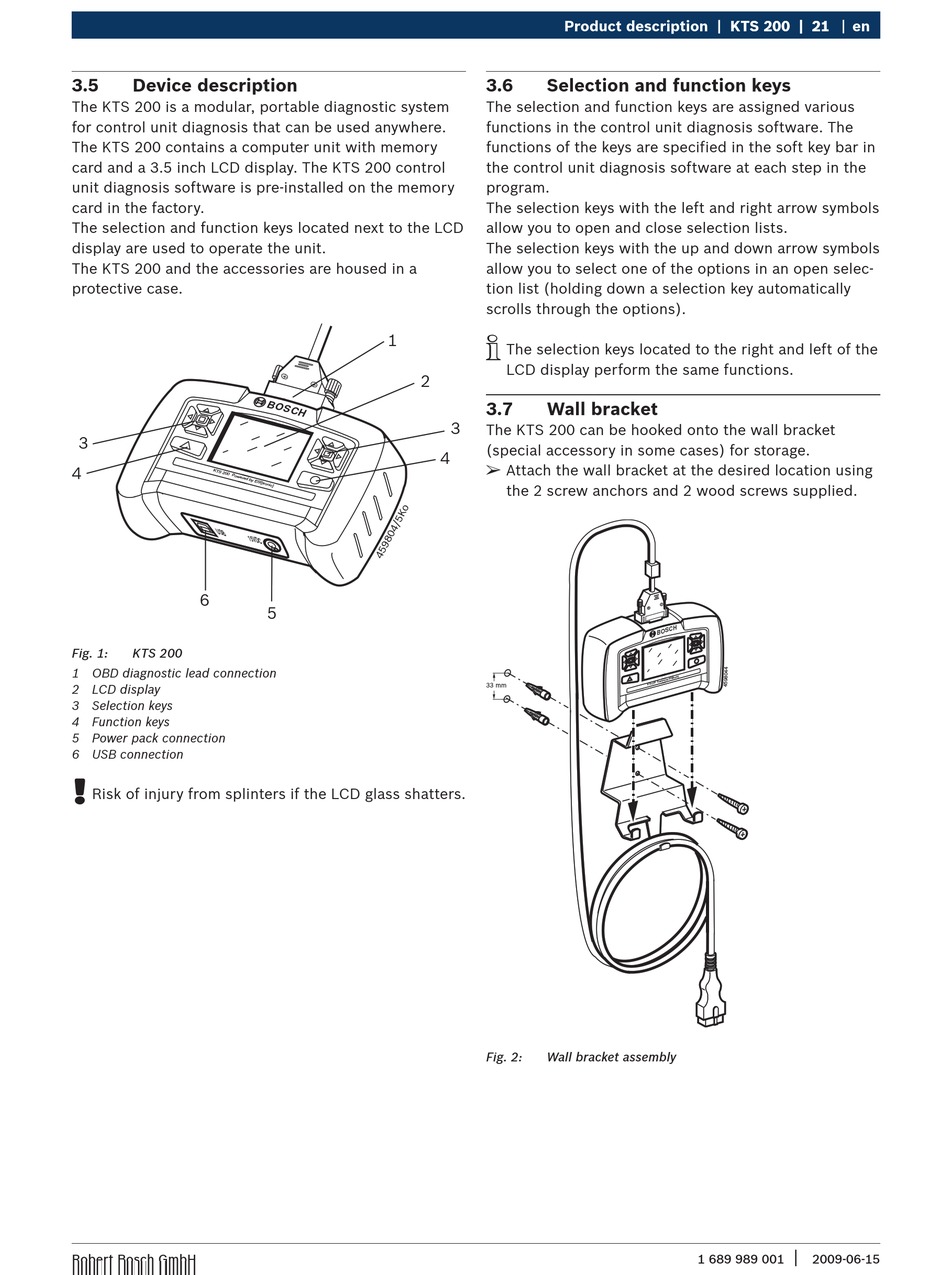

Fig. 1: KTS 200
1 OBD diagnostic lead connection
2 LCD display
3 Selection keys
4 Function keys
5 Power pack connection
6 USB connection
!
Risk of injury from splinters if the LCD glass shatters.
Robert Bosch GmbH
1
2
4
5
Product description | KTS ��� | �1
�.6

Selection and function keys

The selection and function keys are assigned various
functions in the control unit diagnosis software. The
functions of the keys are specified in the soft key bar in
the control unit diagnosis software at each step in the
program.
The selection keys with the left and right arrow symbols
allow you to open and close selection lists.
The selection keys with the up and down arrow symbols
allow you to select one of the options in an open selec-
tion list (holding down a selection key automatically
scrolls through the options).
i
The selection keys located to the right and left of the
LCD display perform the same functions.
�.7

Wall bracket

3
The KTS 200 can be hooked onto the wall bracket
(special accessory in some cases) for storage.
¶
Attach the wall bracket at the desired location using
the 2 screw anchors and 2 wood screws supplied.
33 mm
Fig. 2: Wall bracket assembly
KTS ��� | �1 | �1 en
|
1 689 989 001 2009-06-15
