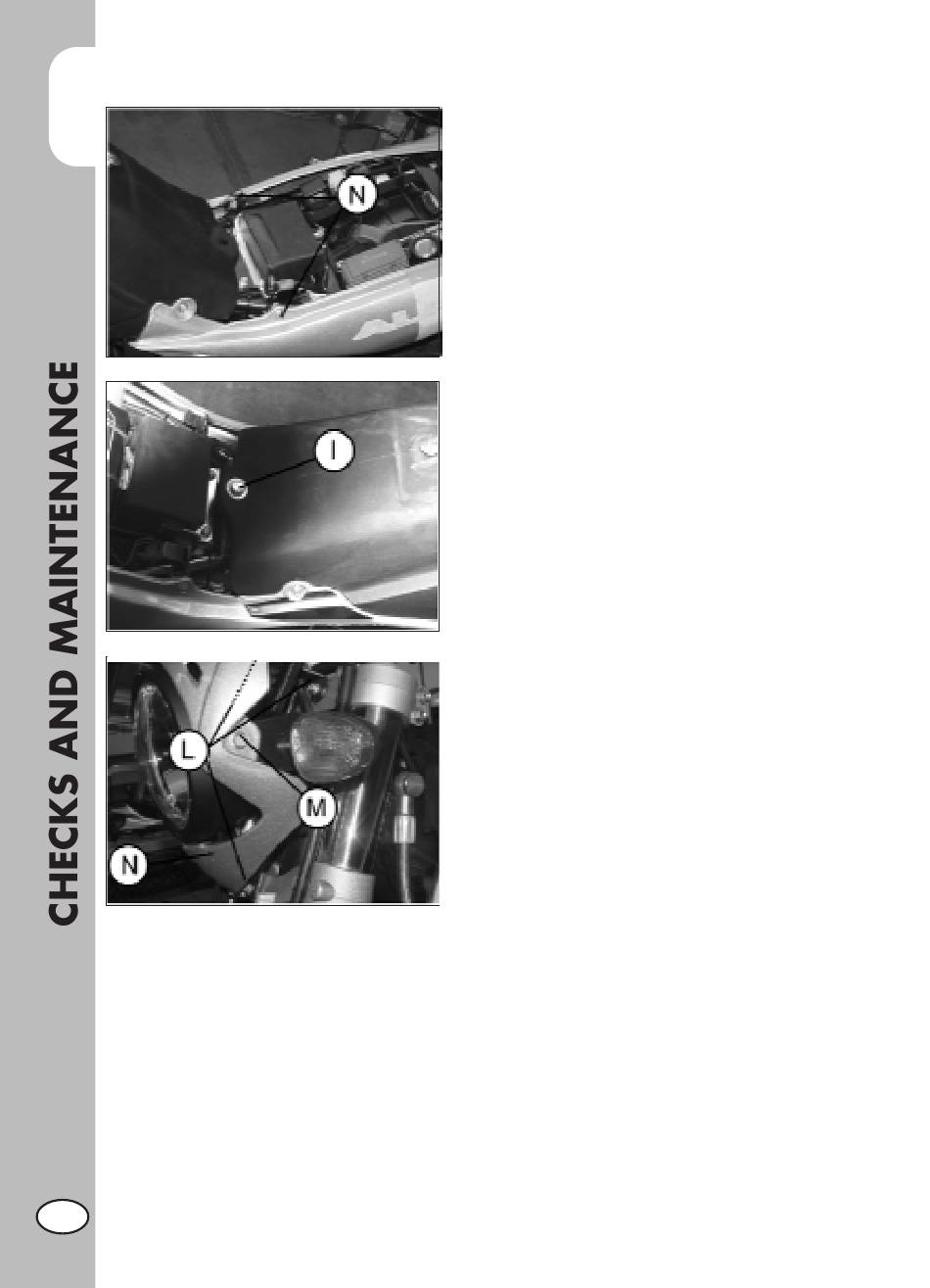

Disassembling rear sides
• Unscrew the clamping screws N, after
having removed the rear handles and thus
slide the sides out.
Removing the fuel tank
• Remove screw I fixing the fuel tank to the
frame, detach the fuel cock line and then
remove the tank by pulling it towards the
rear of the vehicle.
Note:
The tank can be completely removed along
with the front sides, removing though, the
two lower screws G.
Disassembling front optic support group
• Detach all the electrical connections and
unscrew the three fixing screws L, one of
which located under the headlight.
Removing the headlight
• Remove the optic group N by unscrew-
ing the right and left screw M.
