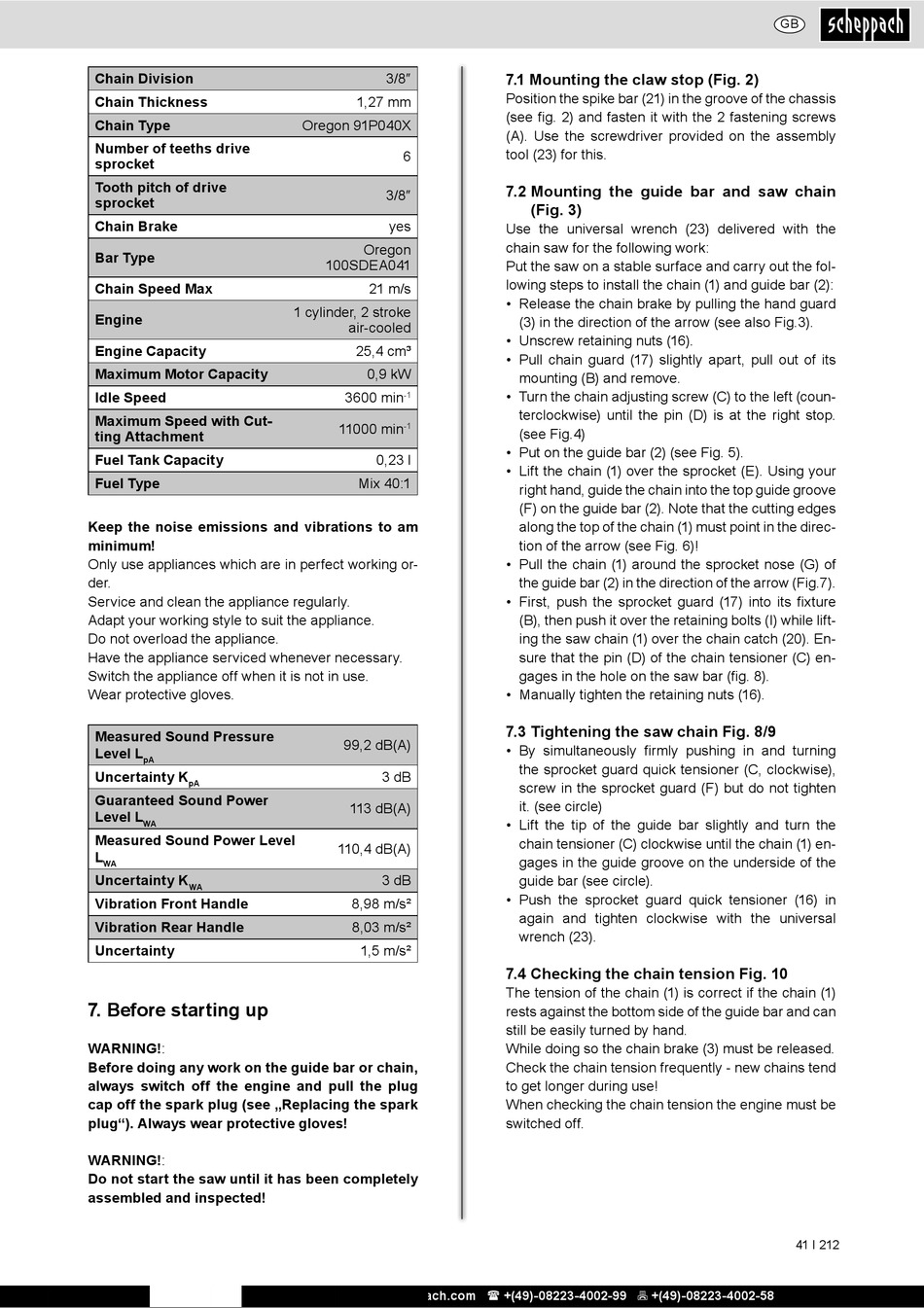

Before Starting Up - Scheppach CSP2540 Originalbetriebsanleitung

Chain Division
Chain Thickness
Chain Type
Number of teeths drive
sprocket
Tooth pitch of drive
sprocket
Chain Brake
Bar Type
Chain Speed Max
Engine
Engine Capacity
Maximum Motor Capacity
Idle Speed
Maximum Speed with Cut-
ting Attachment
Fuel Tank Capacity
Fuel Type
Keep the noise emissions and vibrations to am
minimum!
Only use appliances which are in perfect working or-
der.
Service and clean the appliance regularly.
Adapt your working style to suit the appliance.
Do not overload the appliance.
Have the appliance serviced whenever necessary.
Switch the appliance off when it is not in use.
Wear protective gloves.
Measured Sound Pressure
Level L
pA
Uncertainty K
pA
Guaranteed Sound Power
Level L
WA
Measured Sound Power Level
L
WA
Uncertainty K
WA
Vibration Front Handle
Vibration Rear Handle
Uncertainty

7. Before starting up

WARNING!:
Before doing any work on the guide bar or chain,
always switch off the engine and pull the plug
cap off the spark plug (see „Replacing the spark
plug"). Always wear protective gloves!
WARNING!:
Do not start the saw until it has been completely
assembled and inspected!
