HYDRIM M2 G4 Installation Instructions

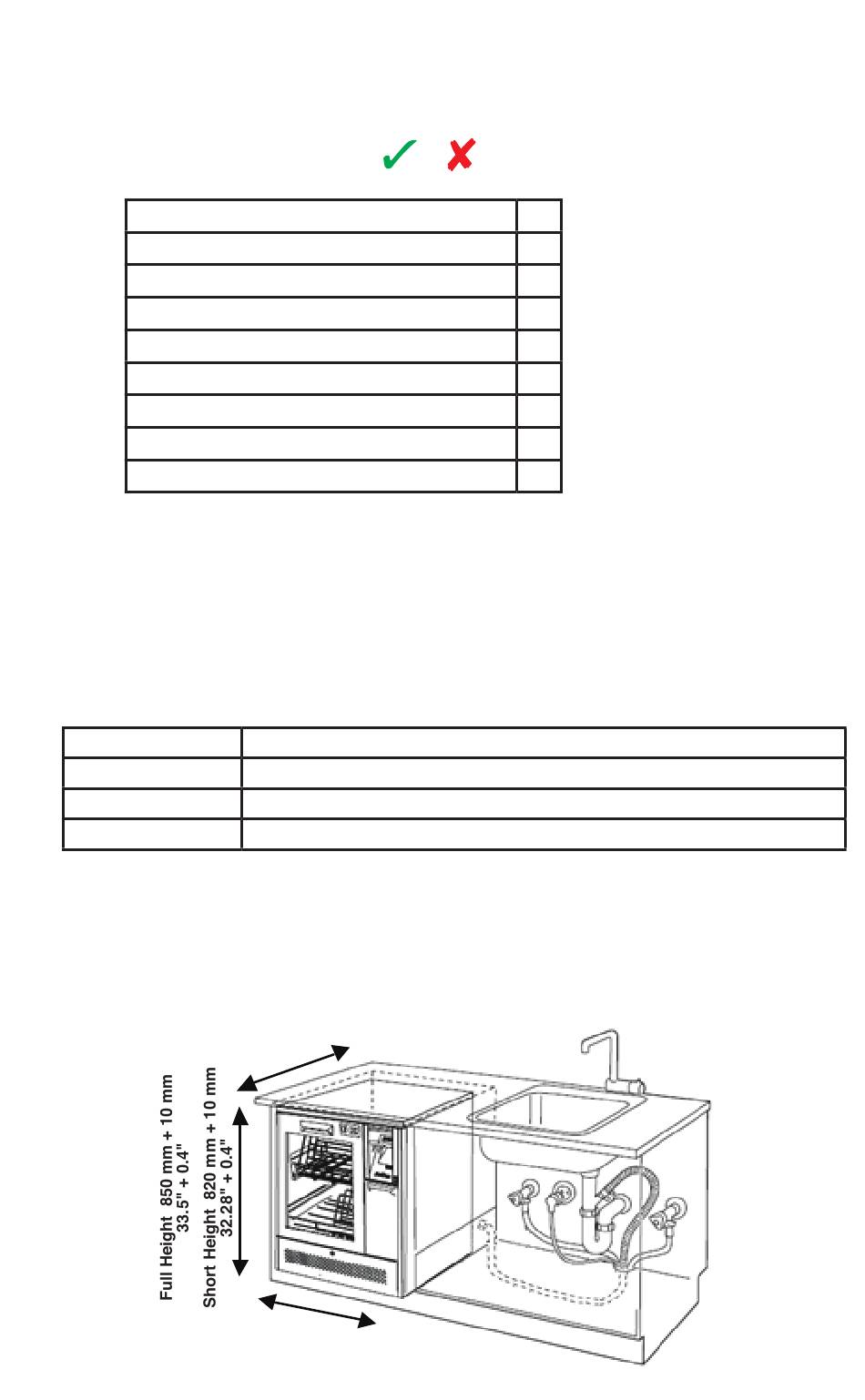

Unit installation checklist

NOTE: Refer to Operator's manual during installation for operating the machine.
1. Inventory Check
Open box and check contents (add
HYDRIM M2 G4 unit
Operators manual
2 x Carrier (trolley)
Water feed hose (red) – 'hot'
Water feed hose (blue) – 'cold'
Drain tube
Water feed hose (yellow) - R/O water
Water hardness test kit
Salt for regeneration unit
NOTE: Additional racks/baskets will be needed to run the unit with instruments. Please refer
to the Operator's Manual for different configurations.
NOTE! HIP™ cleaning solution (CS-HIPL) is required to run the machine and is NOT included
with the machine. Please ensure cleaning solution has been separately provided prior to
installation.
2.

Unit installation

Installation configurations

M2-WD-D02
M2-WD-D02-SH
M2-WD-D04
M2-WD-D04-SH
The HYDRIM M2 G4 may be installed under-bench or free standing dependent on space and
service availability.
The configuration options are:
Option 1. Under Bench
Hydrim M2 Large Instrument Washer / Disinfector, EU model, Full height – 850mm
Hydrim M2 Large Instrument Washer / Disinfector, EU model, Short height – 820mm
Hydrim M2 Large Instrument Washer / Disinfector, UK model, Full height – 850mm
Hydrim M2 Large Instrument Washer / Disinfector, UK model, Short height – 820mm
m
0 m
+ 1
0 . 4 "
m m
" +
6 0 0
2 3 . 6
5 9 8 m
m + 1 0
2 3 . 5 4 " m m
+ 0 . 4 "
or as appropriate):
Page 4
