HYDRIM M2 G4 Installation Instructions
Connect drain tube to machine and relevant services
Drain requirements:
• Maximum distance from installation is 1.50
meters with supplied drain hose
• The maximum length of an extended drain
hose should not exceed 3.30 meters
• Drain should be no more than 1 meter
above the base of the HYDRIM unit

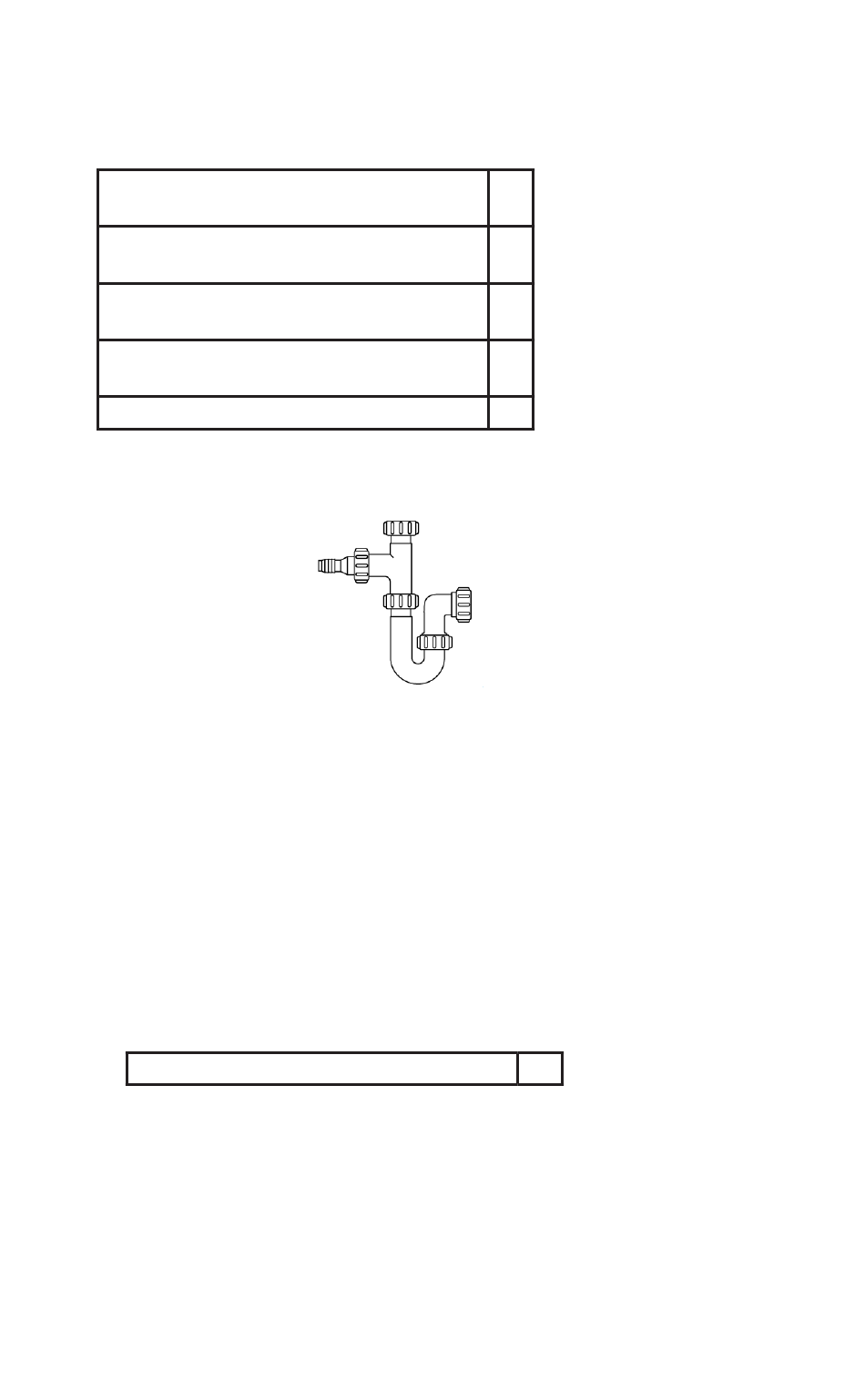

• 'P' trap spur connection (preferred
method) OR
• Standpipe connection
NOTE 1 – The preferred method of connection of the HYDRIM to the drain is by the use of a
'spurred' 'P' trap fitting.
NOTE 2 – The waste connection pipe is clamped on to the spur by the clips provided with
the HYDRIM. Wherever possible, if the HYDRIM is located close to a sink unit, then this
method should be used. If the HYDRIM is not close to a sink unit and a 'P' trap cannot be
used, then a standpipe with 'U' bend fitting can be used. This must be a dedicated
standpipe. Under no circumstances should any other equipment share the standpipe.
NOTE 3 – Waste connection should be adjacent to the machine and not behind it.

Connecting the drain hose:

Connect the drain hose to the drain outlet. The drain hose can be attached to existing drain
lines using a 3.5 cm or larger standpipe/ P-trap combination. If the hose is connected
directly to the drain line, fittings and adapters should not reduce water flow. A floor drain is
acceptable (check local codes).
Level machine in final position with adjustable legs
For the unit to function properly, it will need to be correctly leveled. To level the unit, follow
these steps:
1. Adjust the legs underneath the unit.
2. Use a level as a guide
