HYDRIM M2 G4 Installation Instructions

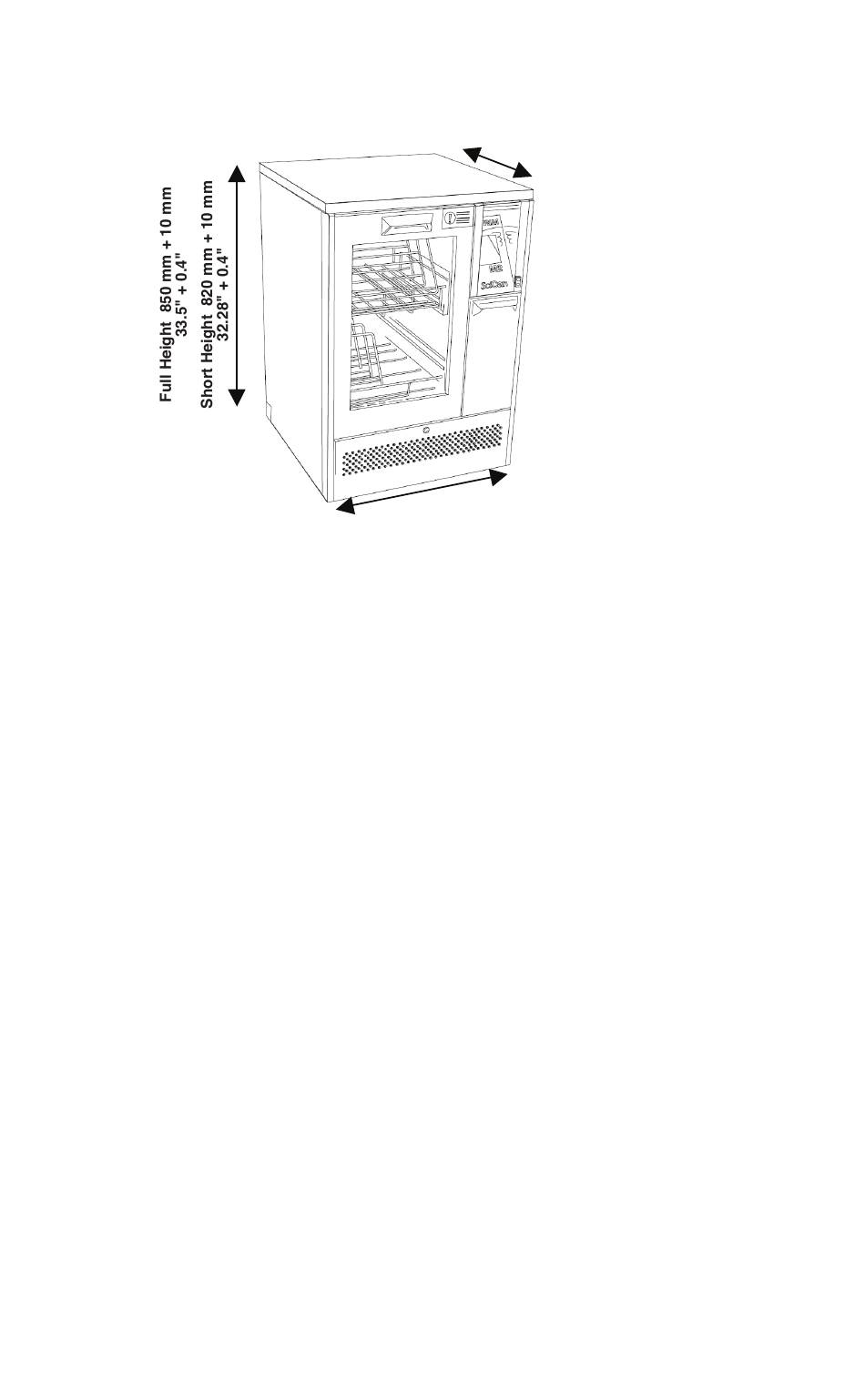

Option 2. Free-Standing
NOTE 1 - Although not required, if the HYDRIM is installed under a counter, it is
recommended to allow a 10 mm space at the top, back and both sides of the unit.
This will facilitate installation, levelling, and service access to the HYDRIM.
NOTE 2 - Important! Ventilation during drying is via the front of the machine. Some increase
in humidity may be apparent during this drying phase and it is imperative that sufficient air
circulation is available surrounding the machine to enable this humidity to be dissipated.
Failure to provide adequate ventilation may lead to equipment or cabinetry damage
(depending on installation configuration).
6 0 0
m m
2 3 .
6 "
m
5 9 8 m
"
2 3 . 5 4
Page 5
