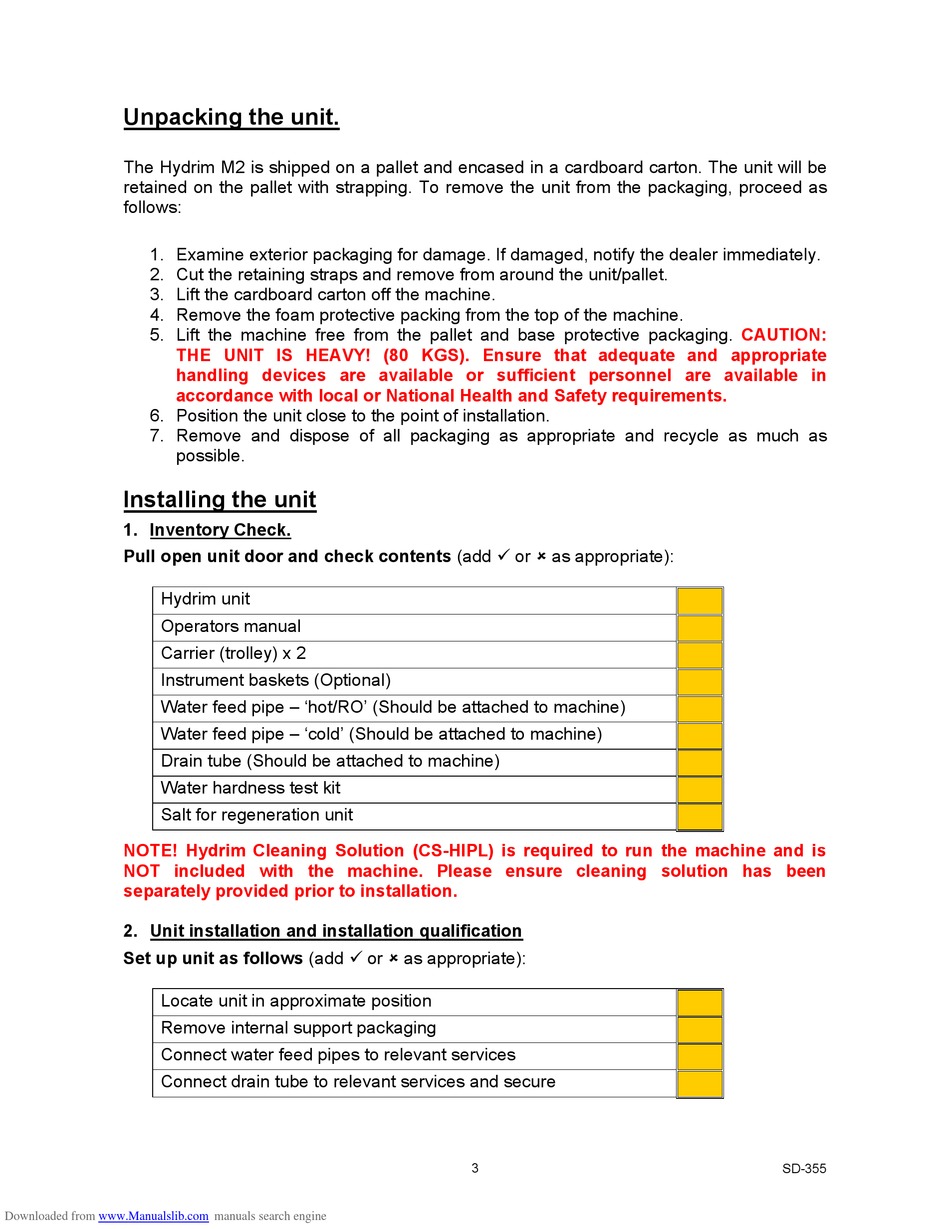

Unpacking the unit.
The Hydrim M2 is shipped on a pallet and encased in a cardboard carton. The unit will be
retained on the pallet with strapping. To remove the unit from the packaging, proceed as
follows:
1. Examine exterior packaging for damage. If damaged, notify the dealer immediately.
2. Cut the retaining straps and remove from around the unit/pallet.
3. Lift the cardboard carton off the machine.
4. Remove the foam protective packing from the top of the machine.
5. Lift the machine free from the pallet and base protective packaging.
THE UNIT IS HEAVY! (80 KGS). Ensure that adequate and appropriate
handling devices are available or sufficient personnel are available in
accordance with local or National Health and Safety requirements.
6. Position the unit close to the point of installation.
7. Remove and dispose of all packaging as appropriate and recycle as much as
possible.

Installing the unit

1. Inventory Check.
Pull open unit door and check contents (add  or  as appropriate):
Hydrim unit
Operators manual
Carrier (trolley) x 2
Instrument baskets (Optional)
Water feed pipe – 'hot/RO' (Should be attached to machine)
Water feed pipe – 'cold' (Should be attached to machine)
Drain tube (Should be attached to machine)
Water hardness test kit
Salt for regeneration unit
NOTE! Hydrim Cleaning Solution (CS-HIPL) is required to run the machine and is
NOT included with the machine. Please ensure cleaning solution has been
separately provided prior to installation.
2. Unit installation and installation qualification
Set up unit as follows (add  or  as appropriate):
Locate unit in approximate position
Remove internal support packaging
Connect water feed pipes to relevant services
Connect drain tube to relevant services and secure
Downloaded from www.Manualslib.com manuals search engine
3
CAUTION:
SD-355
