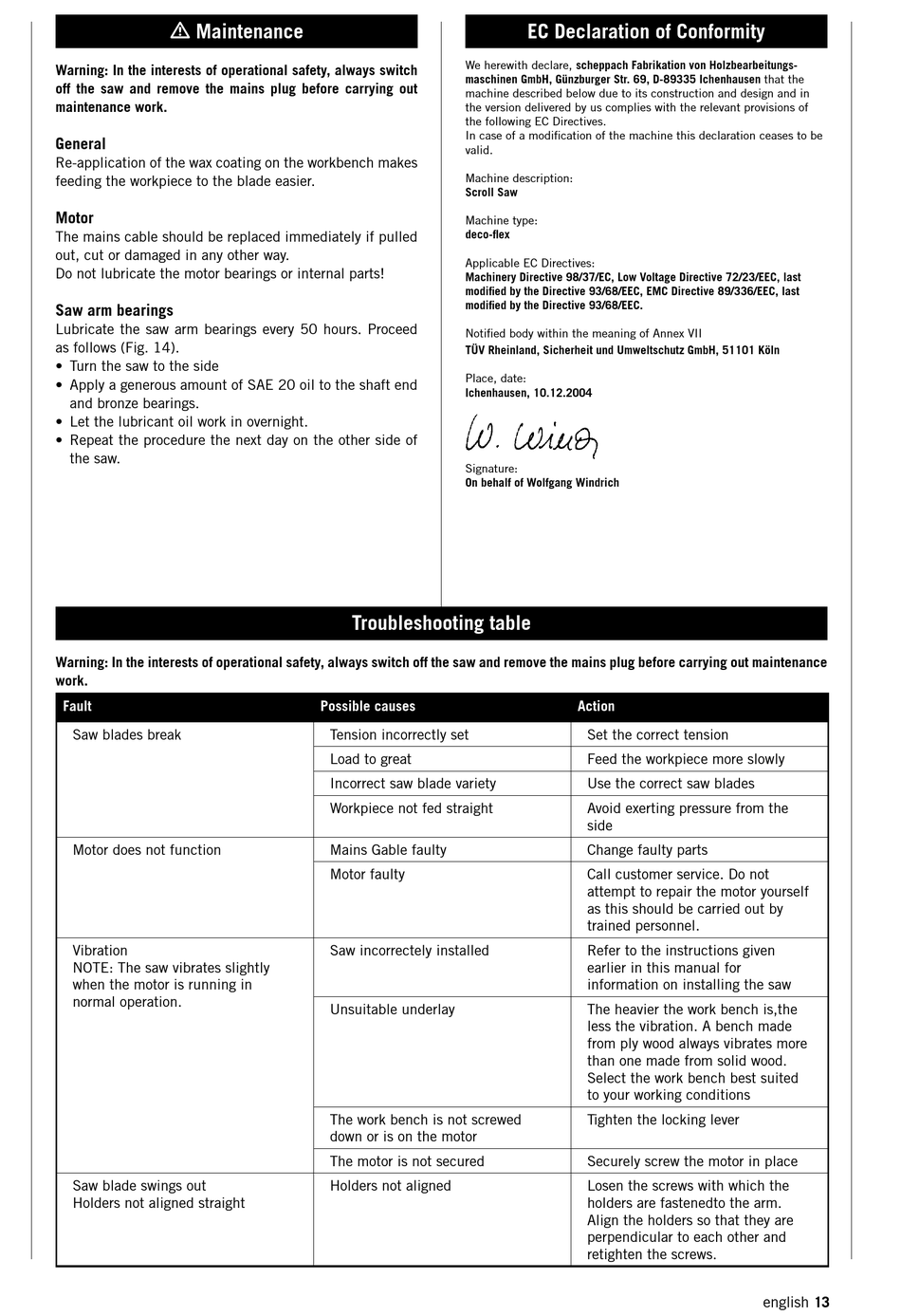

 Maintenance

Warning: In the interests of operational safety, always switch
off the saw and remove the mains plug before carrying out
maintenance work.
General
Re-application of the wax coating on the workbench makes
feeding the workpiece to the blade easier.
Motor
The mains cable should be replaced immediately if pulled
out, cut or damaged in any other way.
Do not lubricate the motor bearings or internal parts!
Saw arm bearings
Lubricate the saw arm bearings every 50 hours. Proceed
as follows (Fig. 14).
• Turn the saw to the side
• Apply a generous amount of SAE 20 oil to the shaft end
and bronze bearings.
• Let the lubricant oil work in overnight.
• Repeat the procedure the next day on the other side of
the saw.
Warning: In the interests of operational safety, always switch off the saw and remove the mains plug before carrying out maintenance
work.
Fault
Saw blades break
Motor does not function
Vibration
NOTE: The saw vibrates slightly
when the motor is running in
normal operation.
Saw blade swings out
Holders not aligned straight
We herewith declare, scheppach Fabrikation von Holzbearbeitungs-
maschinen GmbH, Günzburger Str. 69, D-89335 Ichenhausen that the
machine described below due to its construction and design and in
the version delivered by us complies with the relevant provisions of
the following EC Directives.
In case of a modification of the machine this declaration ceases to be
valid.
Machine description:
Scroll Saw
Machine type:
deco-flex
Applicable EC Directives:
Machinery Directive 98/37/EC, Low Voltage Directive 72/23/EEC, last
modified by the Directive 93/68/EEC, EMC Directive 89/336/EEC, last
modified by the Directive 93/68/EEC.
Notified body within the meaning of Annex VII
TÜV Rheinland, Sicherheit und Umweltschutz GmbH, 51101 Köln
Place, date:
Ichenhausen, 10.12.2004
Signature:
On behalf of Wolfgang Windrich

Troubleshooting table

Possible causes
Tension incorrectly set
Load to great
Incorrect saw blade variety
Workpiece not fed straight
Mains Gable faulty
Motor faulty
Saw incorrectely installed
Unsuitable underlay
The work bench is not screwed
down or is on the motor
The motor is not secured
Holders not aligned

EC Declaration of Conformity

Action
Set the correct tension
Feed the workpiece more slowly
Use the correct saw blades
Avoid exerting pressure from the
side
Change faulty parts
Call customer service. Do not
attempt to repair the motor yourself
as this should be carried out by
trained personnel.
Refer to the instructions given
earlier in this manual for
information on installing the saw
The heavier the work bench is,the
less the vibration. A bench made
from ply wood always vibrates more
than one made from solid wood.
Select the work bench best suited
to your working conditions
Tighten the locking lever
Securely screw the motor in place
Losen the screws with which the
holders are fastenedto the arm.
Align the holders so that they are
perpendicular to each other and
retighten the screws.
english 13
