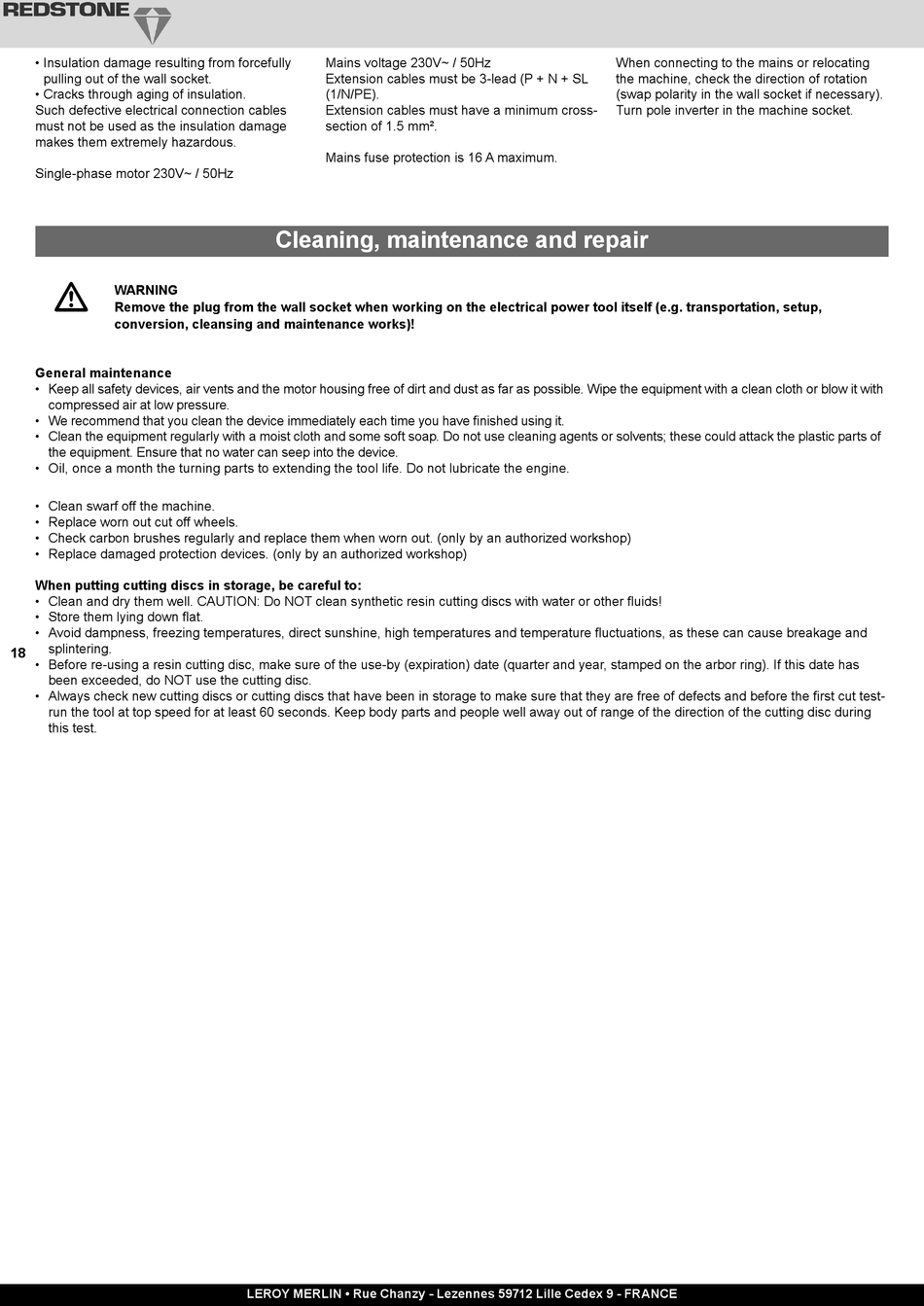

Cleaning, Maintenance And Repair - Scheppach REDSTONE MT100 Originalanleitung

Inhaltsverzeichnis

Werbung

Verfügbare Sprachen
  • DE

Verfügbare Sprachen

  • DEUTSCH, seite 1
• Insulation damage resulting from forcefully
pulling out of the wall socket.
• Cracks through aging of insulation.
Such defective electrical connection cables
must not be used as the insulation damage
makes them extremely hazardous.
Single-phase motor 230V~ / 50Hz
m
WARNING
Remove the plug from the wall socket when working on the electrical power tool itself (e.g. transportation, setup,
conversion, cleansing and maintenance works)!
General maintenance
• Keep all safety devices, air vents and the motor housing free of dirt and dust as far as possible. Wipe the equipment with a clean cloth or blow it with
compressed air at low pressure.
• We recommend that you clean the device immediately each time you have finished using it.
• Clean the equipment regularly with a moist cloth and some soft soap. Do not use cleaning agents or solvents; these could attack the plastic parts of
the equipment. Ensure that no water can seep into the device.
• Oil, once a month the turning parts to extending the tool life. Do not lubricate the engine.
• Clean swarf off the machine.
• Replace worn out cut off wheels.
• Check carbon brushes regularly and replace them when worn out. (only by an authorized workshop)
• Replace damaged protection devices. (only by an authorized workshop)
When putting cutting discs in storage, be careful to:
• Clean and dry them well. CAUTION: Do NOT clean synthetic resin cutting discs with water or other fluids!
• Store them lying down flat.
• Avoid dampness, freezing temperatures, direct sunshine, high temperatures and temperature fluctuations, as these can cause breakage and
splintering.
18
• Before re-using a resin cutting disc, make sure of the use-by (expiration) date (quarter and year, stamped on the arbor ring). If this date has
been exceeded, do NOT use the cutting disc.
• Always check new cutting discs or cutting discs that have been in storage to make sure that they are free of defects and before the first cut test-
run the tool at top speed for at least 60 seconds. Keep body parts and people well away out of range of the direction of the cutting disc during
this test.
Mains voltage 230V~ / 50Hz
Extension cables must be 3-lead (P + N + SL
(1/N/PE).
Extension cables must have a minimum cross-
section of 1.5 mm².
Mains fuse protection is 16 A maximum.

Cleaning, maintenance and repair

LEROY MERLIN • Rue Chanzy - Lezennes 59712 Lille Cedex 9 - FRANCE
When connecting to the mains or relocating
the machine, check the direction of rotation
(swap polarity in the wall socket if necessary).
Turn pole inverter in the machine socket.
