Please Note: Calibration can only be adjusted in a positive direction,
as the MicroRPM measures the highest peak value. Therefore, if the
reading was greater than that on the Water Manometer, the
calibration screw must be turned anti-clockwise first, before
calibration is attempted.
Serial
port

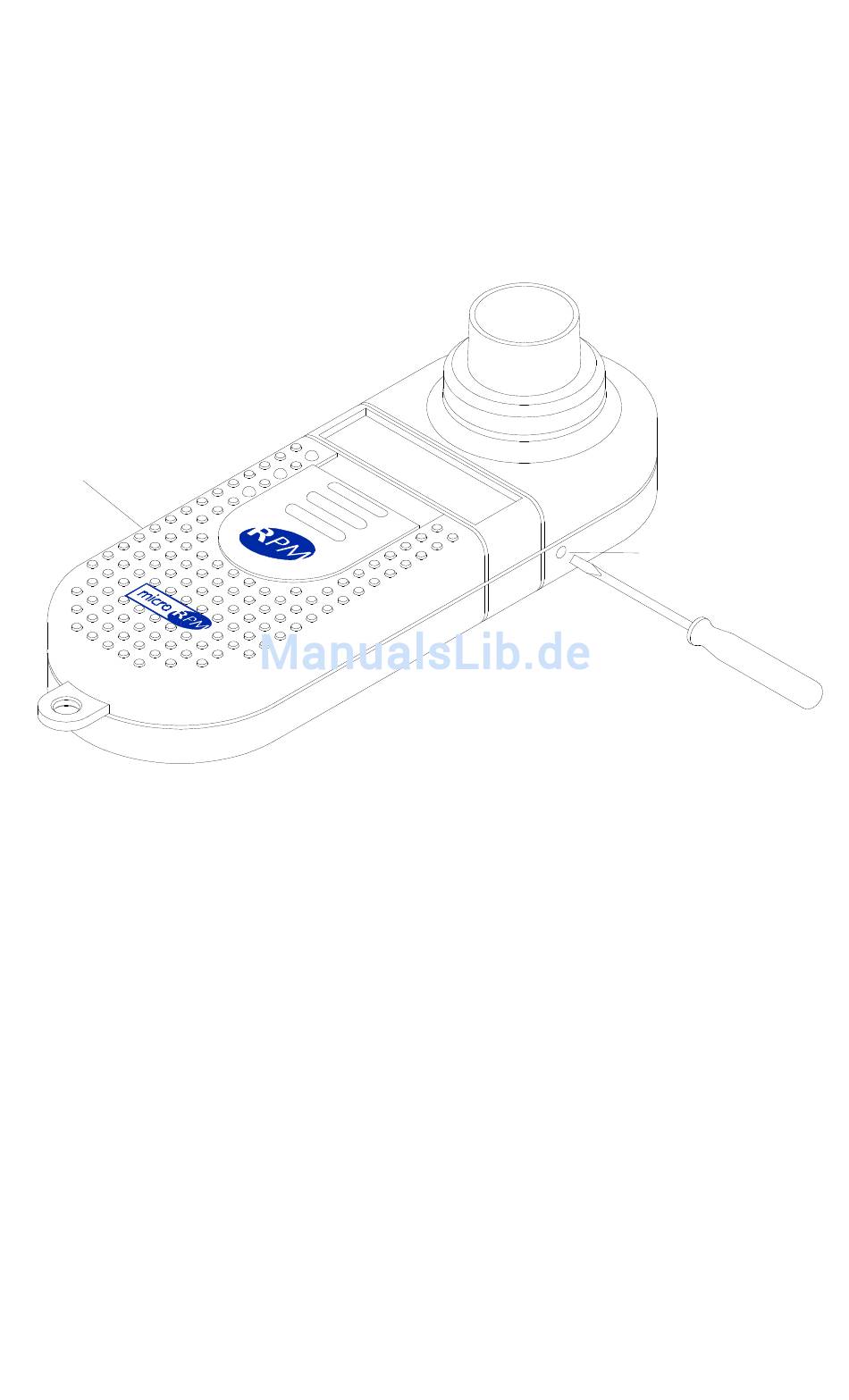

To calibrate the MicroRPM, connect to the Water Manometer as
before, filling the syringe to obtain the required negative pressure. To
change the calibration, slowly turn the calibration screw in a clockwise
direction until the same value is displayed on the MicroRPM.

Servicing

If your unit requires service or repair please see page 141 for contact
details.
A full service manual including circuit diagrams and parts list is
available on request.
18
Calibration
screw
