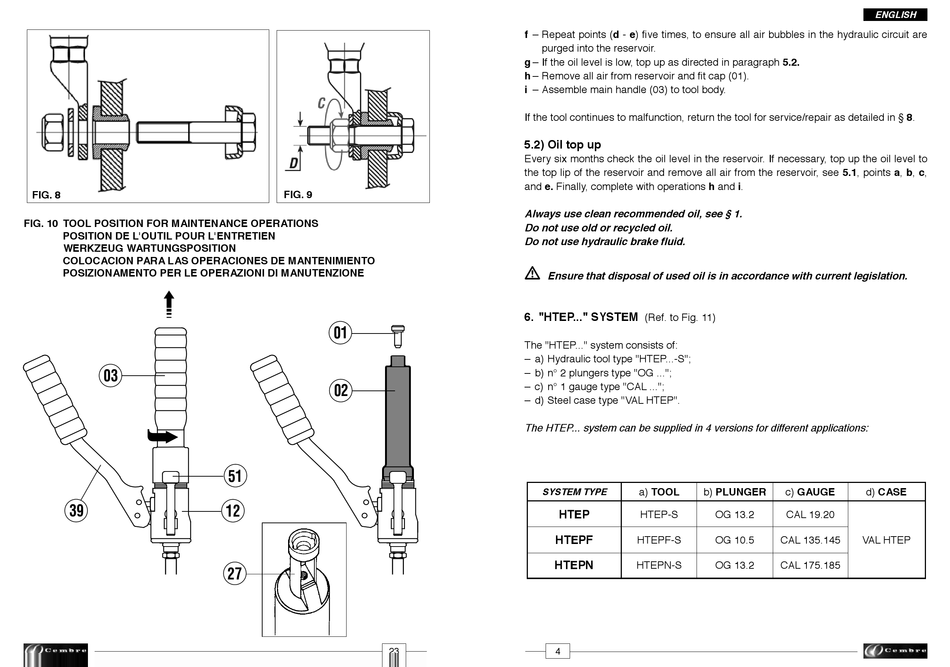

FIG. 8
FIG. 10 TOOL POSITION FOR MAINTENANCE OPERATIONS
POSITION DE L'OUTIL POUR L'ENTRETIEN
WERKZEUG WARTUNGSPOSITION
COLOCACION PARA LAS OPERACIONES DE MANTENIMIENTO
POSIZIONAMENTO PER LE OPERAZIONI DI MANUTENZIONE
03
39
FIG. 9
01
02
51
12
27
23
f – Repeat points (d - e) five times, to ensure all air bubbles in the hydraulic circuit are
purged into the reservoir.
g – If the oil level is low, top up as directed in paragraph 5.2.
h – Remove all air from reservoir and fit cap (01).
i – Assemble main handle (03) to tool body.
If the tool continues to malfunction, return the tool for service/repair as detailed in § 8.
5.2) Oil top up
Every six months check the oil level in the reservoir. If necessary, top up the oil level to
the top lip of the reservoir and remove all air from the reservoir, see 5.1, points a, b, c,
and e. Finally, complete with operations h and i.
Always use clean recommended oil, see § 1.
Do not use old or recycled oil.
Do not use hydraulic brake fluid.
Ensure that disposal of used oil is in accordance with current legislation.
6. "HTEP..." SYSTEM
(Ref. to Fig. 11)
The "HTEP..." system consists of:
– a) Hydraulic tool type "HTEP...-S";
– b) n° 2 plungers type "OG ...";
– c) n° 1 gauge type "CAL ...";
– d) Steel case type "VAL HTEP".
The HTEP... system can be supplied in 4 versions for different applications:
SYSTEM TYPE
a) TOOL
b) PLUNGER
HTEP
HTEP-S
HTEPF
HTEPF-S
HTEPN
HTEPN-S
4
ENGLISH
c) GAUGE
d) CASE
OG 13.2
CAL 19.20
OG 10.5
CAL 135.145
VAL HTEP
OG 13.2
CAL 175.185
