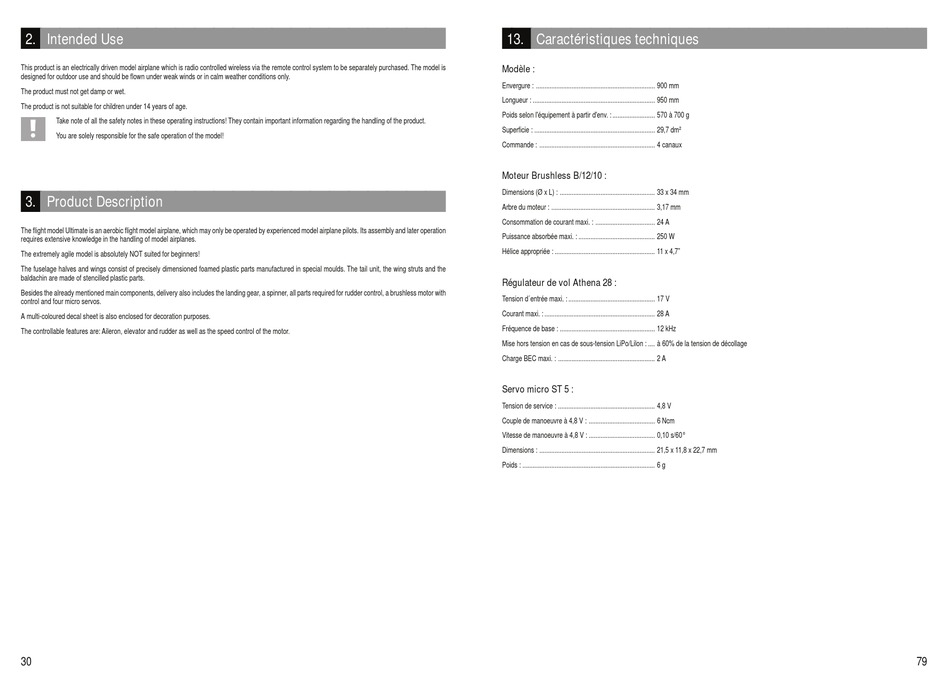

2. Intended Use
This product is an electrically driven model airplane which is radio controlled wireless via the remote control system to be separately purchased. The model is
designed for outdoor use and should be flown under weak winds or in calm weather conditions only.
The product must not get damp or wet.
The product is not suitable for children under 14 years of age.
Take note of all the safety notes in these operating instructions! They contain important information regarding the handling of the product.
You are solely responsible for the safe operation of the model!
3. Product Description
The flight model Ultimate is an aerobic flight model airplane, which may only be operated by experienced model airplane pilots. Its assembly and later operation
requires extensive knowledge in the handling of model airplanes.
The extremely agile model is absolutely NOT suited for beginners!
The fuselage halves and wings consist of precisely dimensioned foamed plastic parts manufactured in special moulds. The tail unit, the wing struts and the
baldachin are made of stencilled plastic parts.
Besides the already mentioned main components, delivery also includes the landing gear, a spinner, all parts required for rudder control, a brushless motor with
control and four micro servos.
A multi-coloured decal sheet is also enclosed for decoration purposes.
The controllable features are: Aileron, elevator and rudder as well as the speed control of the motor.
30
13. Caractéristiques techniques
Modèle :
Envergure : ...................................................................... 900 mm
Longueur : ........................................................................ 950 mm
Poids selon l'équipement à partir d'env. : ......................... 570 à 700 g
Superficie : ....................................................................... 29,7 dm²
Commande : .................................................................... 4 canaux
Moteur Brushless B/12/10 :
Dimensions (Ø x L) : ........................................................ 33 x 34 mm
Arbre du moteur : ............................................................. 3,17 mm
Consommation de courant maxi. : ................................... 24 A
Puissance absorbée maxi. : ............................................. 250 W
Hélice appropriée : ........................................................... 11 x 4,7"
Régulateur de vol Athena 28 :
Tension d´entrée maxi. : ................................................... 17 V
Courant maxi. : ................................................................. 28 A
Fréquence de base : ........................................................ 12 kHz
Mise hors tension en cas de sous-tension LiPo/Lilon : .... à 60% de la tension de décollage
Charge BEC maxi. : ......................................................... 2 A
Servo micro ST 5 :
Tension de service : ......................................................... 4,8 V
Couple de manoeuvre à 4,8 V : ....................................... 6 Ncm
Vitesse de manoeuvre à 4,8 V : ....................................... 0,10 s/60°
Dimensions : .................................................................... 21,5 x 11,8 x 22,7 mm
Poids : .............................................................................. 6 g
79
