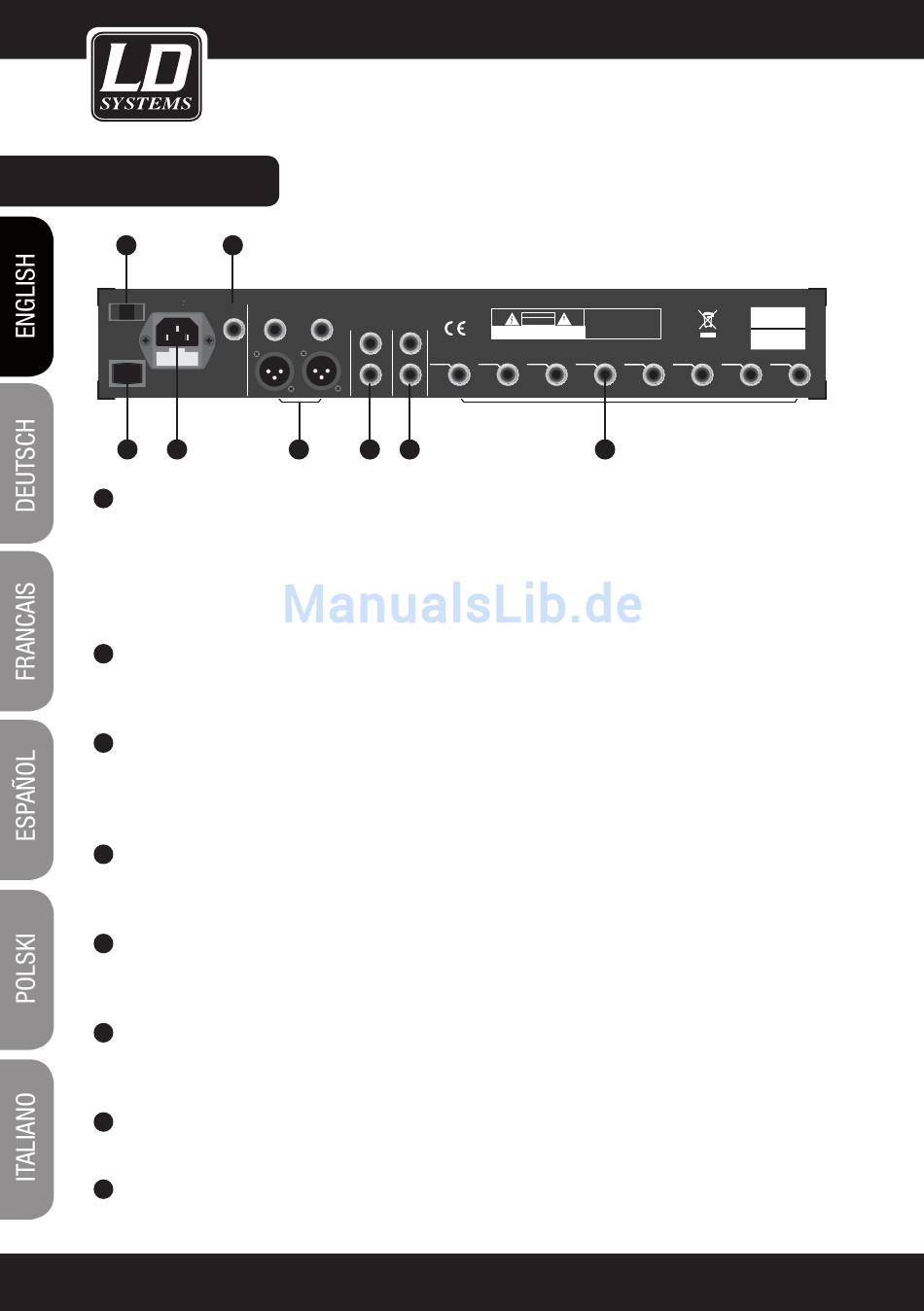

BACK PANEL:

44
PHANTOM
Apparaten skall anslutas
till jordat uttag nar den
ansluts till ett natverk
ON OFF
AC INPUT
£
100-240V 50/60Hz Fuse:T1.6AL 250V
POWER CONSUMPTION: 40W
POWER
43 45
38 INSERTS (MONO CHANNELS)
All mono MIC channels are additionally equipped with Insert sockets (stereo jack, TRS), via which external
effects devices or the like can be patched into the respective channel. The signal is sent immediately after
the input gain control (TRIM) to an external signal processor, for example, a compressor or limiter. Once the
signal has passed through the external signal processor, it is returned to the same channel immediately
before the EQ. Note: Connecting external devices to insert points requires a so-called "Y" cable.
39 CTRL ROOM OUTPUT
These 6.3 mm sockets are used to send the signal to studio monitor speakers (CONTROL ROOM) or a PA
system.
ALT OUTPUT
40
These unbalanced 6.3 mm sockets serve as additional outputs. Their level is controlled using the ALT 3-4
fader in the master section of the mixer (max. +22 dBu). The signals of all channels for which the Mute/Alt
3-4 button has been pushed are routed to this bus; they no longer reach the main mix.
MAIN MIX OUTPUT
41
The L/R MAIN MIX OUTPUT has both XLR and 6.3 mm TRS sockets via which the main mix output signal can
be sent to an amplifier. The output level is controlled by the MAIN MIX LEVEL fader (-∞ to +10 dB).
FOOT SW
42
This socket can be used to connect an external footswitch for activation/deactivation of the integral effects
processor (function identical with that of the DFX MUTE switch).
PHANTOM SWITCH
43
This switch activates the +48V phantom power for the four XLR microphone inputs.
Important: Make certain that the phantom power is off before connecting microphones.
POWER SWITCH
44
This switch is used to turn the mixer ON or OFF.
AC INPUT
45
This socket is used to connect the power adapter.
