Installation Arrangement; Name Plate - SystemAir AxZent Betriebsanleitung

6.2.1

Installation arrangement

2
3
4
2
5
6

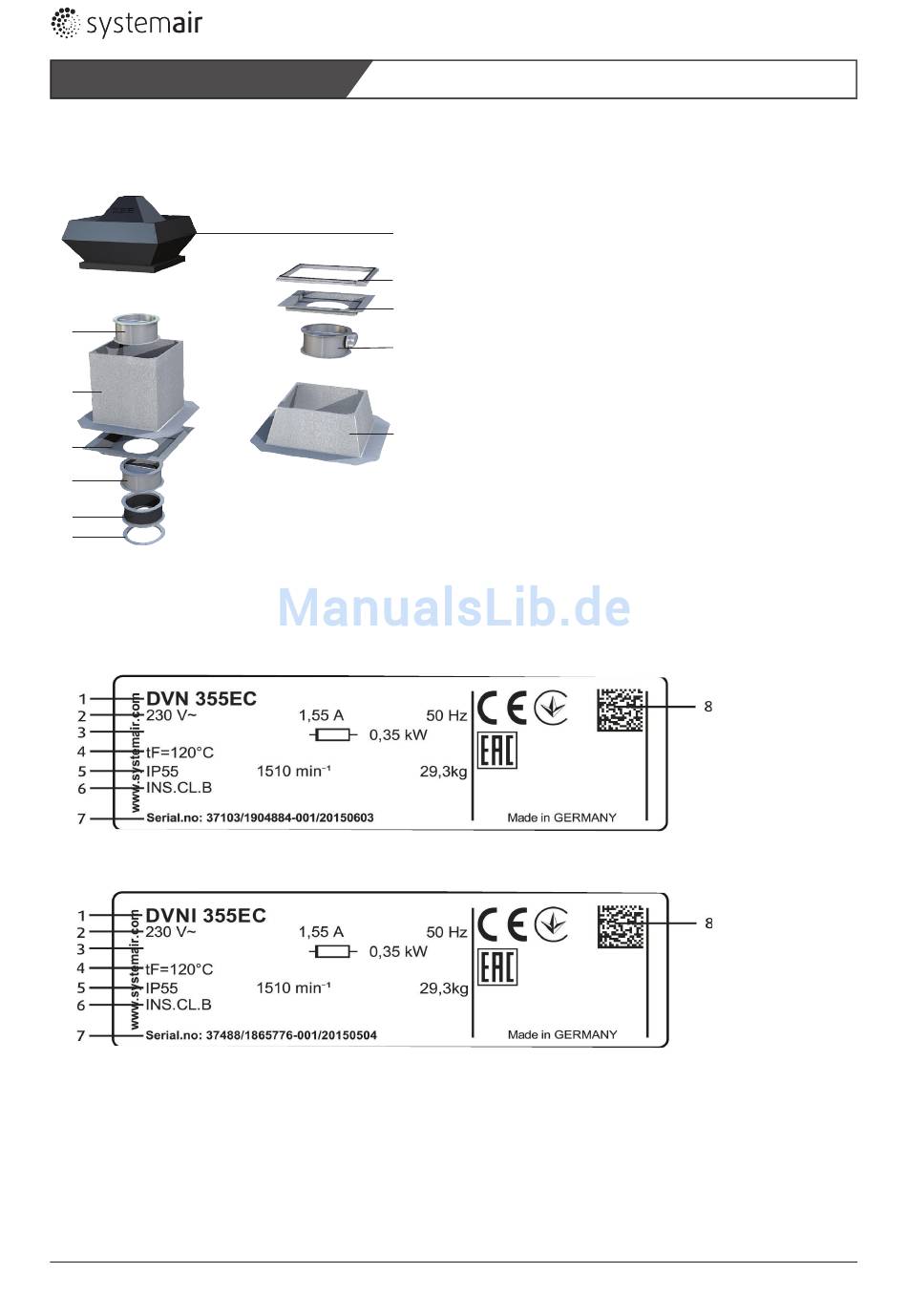

Fig. 3: Example of a DVN EC/DVNI EC installation arrangement with accessories
6.2.2

Name plate

Fig. 4: Name plate DVN EC
Fig. 5: Name plate DVNI EC
Legend for Fig. 4 and Fig. 5
1 Type designation
2 Voltage/current/frequency
3 Motor power
4 Medium temperature
36
Legend
1
1 DVN EC /
DVNI EC
2 VKS
7
3 SSD
8
4 ASK
9
5 ASS
6 ASF
7 FTG
10
8 TDA
9 VKM
10 FDS
5 Protection class/speed/weight
6 Insulation class motor
7 Article number/production number/date of manufacture
8 Certifi cations
Description
Fan
Automatic shutter
Base sound absorber
Intake chamber
Flexible connection
Intake fl ange
Hinged frame
Adaptor frame
Damper
Flat roof base
