Task 6: Connecting the Power

Plug-in the power cord on the power supply on the back of the VessJBOD
enclosure and switch on the power supply. If you have a VessJBOD 1840, plug-in
and turn on both power supplies.
When the power is switched on, the LEDs light up.

Front Panel LEDs

When boot-up is finished and the VessJBOD subsystem is functioning normally:
• Power, Global Enclosure Status, and Global RAID Status LEDs display
green continuously.
• Controller Activity LED flashes green when there is controller activity.
• System Heartbeat LED blinks green once per second.

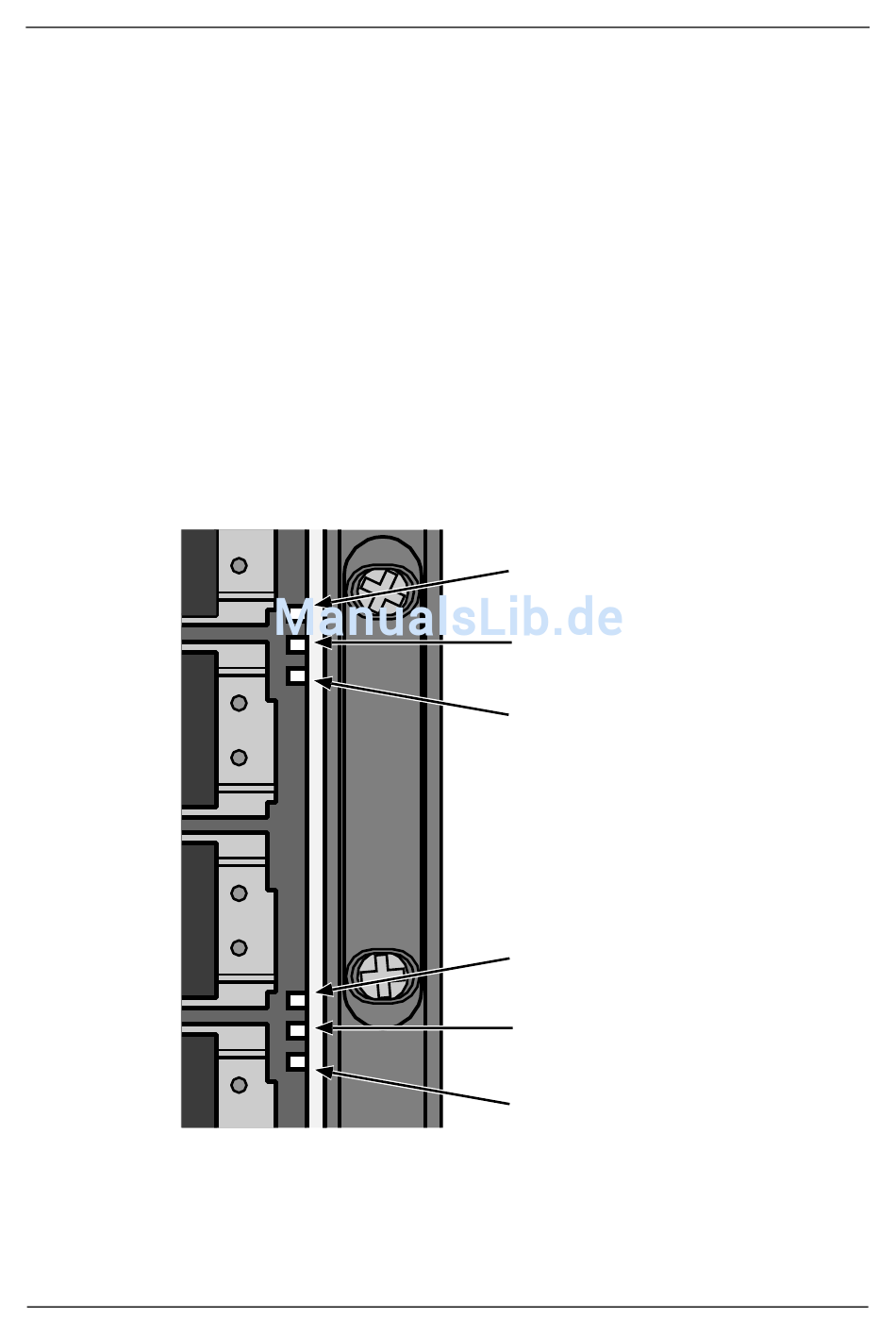

Figure 11. VessJBOD front panel LED display
Power
Global Enclosure Status
Global RAID Status
Controller Activity
Reserved
System Heartbeat
