VessJBOD 1740, 1840 Quick Start Guide

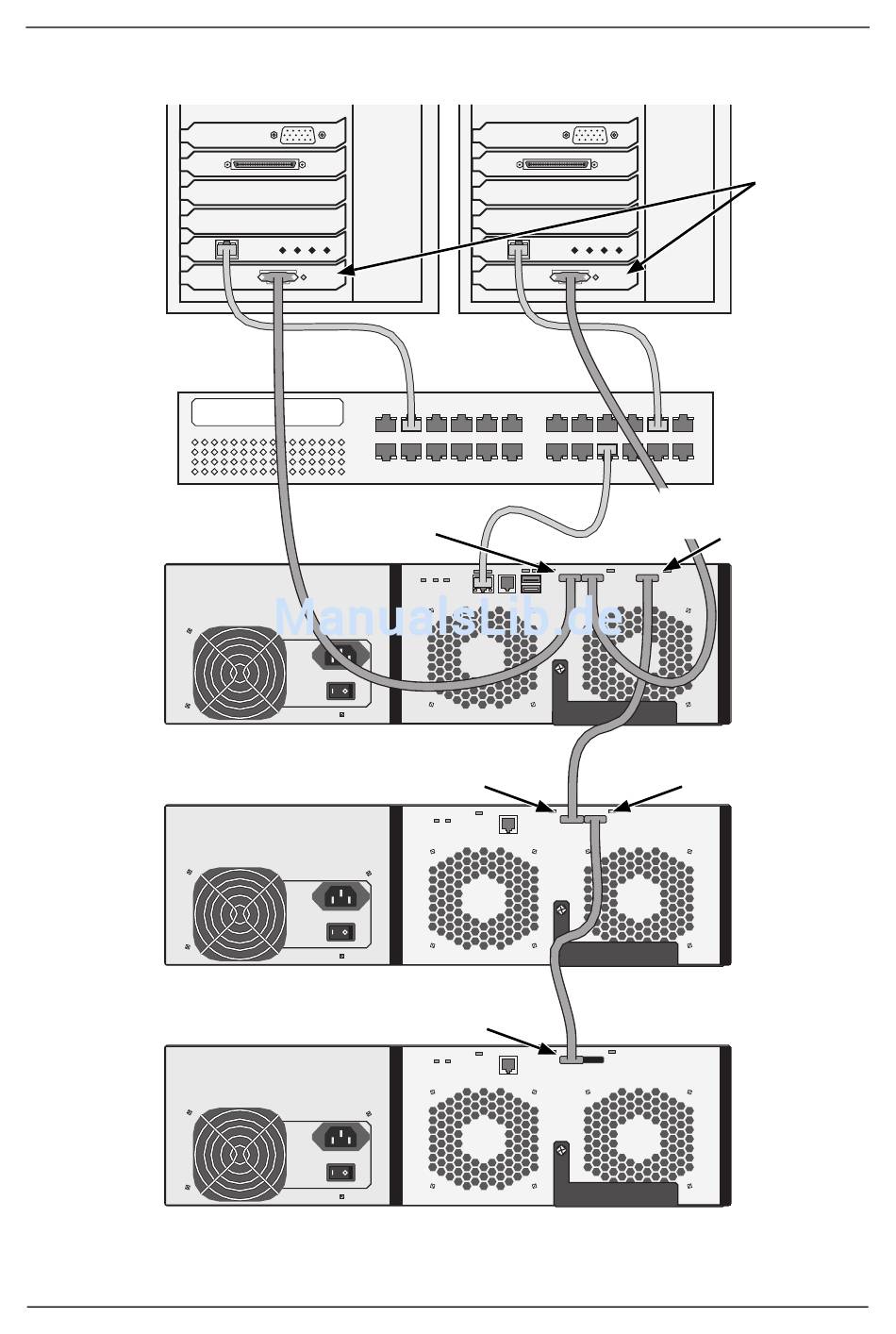

Figure 8. Data and management connections with VessRAID
Host PCs or
Servers
Network
Switch
VessRAID
VessJBOD
VessJBOD
This completes data and management connections. Go to "Task 5: Setting Up
Serial Cable Connections" on page 13.
SAS IN ports
Circle icon
SAS IN port
Circle icon
SAS IN port
Circle icon
10
SAS HBA
cards
SAS Expansion port
Diamond icon
SAS OUT port
Diamond icon
