VessJBOD 1740, 1840 Quick Start Guide
3. Attach the mounting rail assemblies to the outside of the rack posts, using
the attaching screws from your rack system.
Be sure the support is on the bottom facing inward.
4. Square the rail assemblies in the rack.
5. Tighten the adjustment screws and the attaching screws.
6. Place the VessJBOD subsystem onto the rails.
7. Secure the VessJBOD subsystem to the rack through each handle, using the
attaching screws from your rack system.

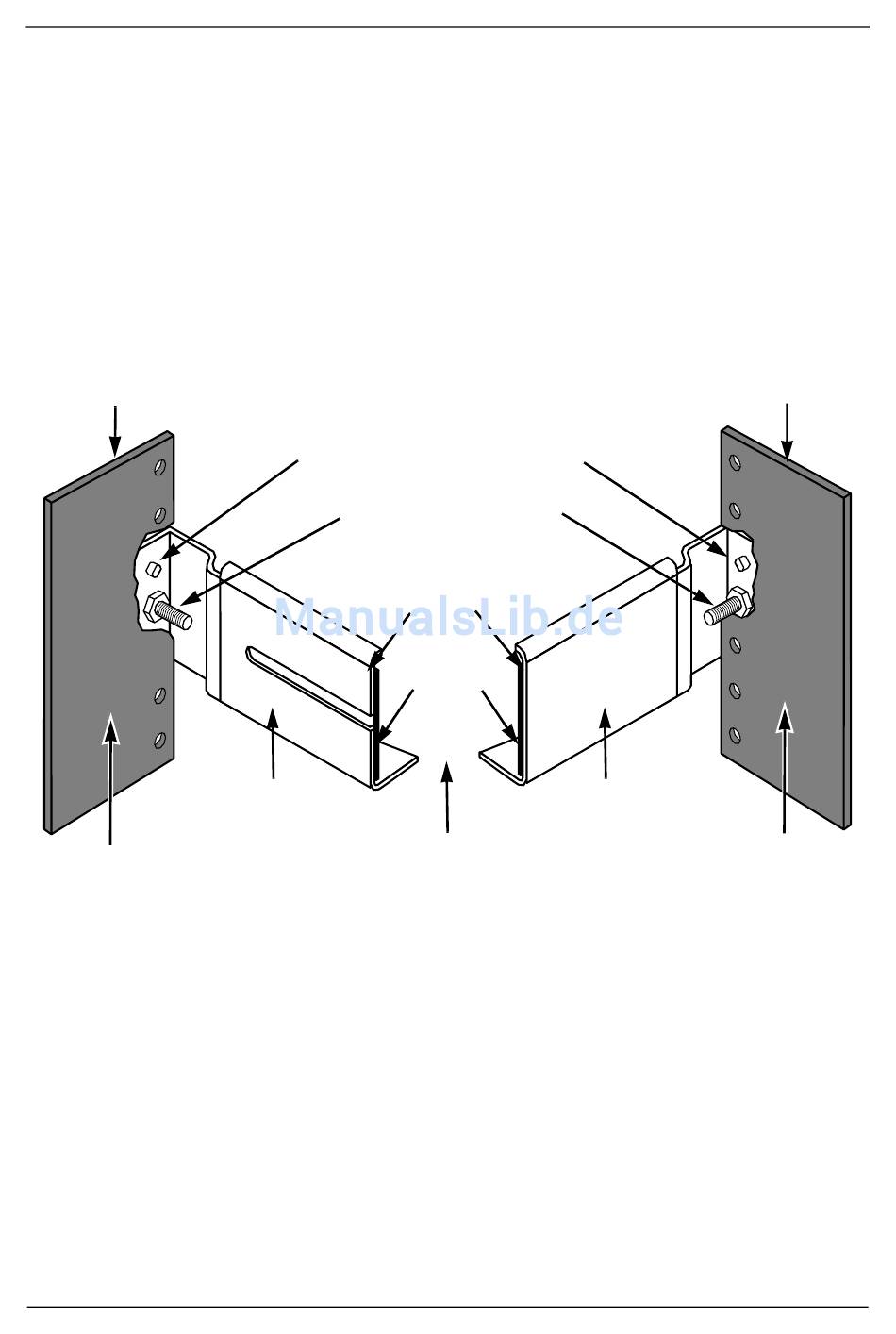

Figure 5. Rack mount assembly diagram
Rack front post
Inside of post
This completes rack mounting. Go to "Task 3: Installing Disk Drives" on page 7.
Locating pins (2 on each end)
Rail attaching screws
(not included)
Front rail
Rail adjustment screw
(center, outside of rail)
Flange
Support
Rear rail
6
Rack back post
Inside of post
