Task 7: Connecting the Power

Plug-in the power cord on the power supply on the back of the VessRAID
enclosure and switch on the power supply. If you have a redundant power supply,
plug-in both power supplies and turn on both power supplies.
When the power is switched on, the LEDs and LCD screen light up.

Front Panel LEDs

When boot-up is finished and the VessRAID subsystem is functioning normally:
• Power, Global Enclosure Status, and Global RAID Status LEDs display
green continuously.
• Controller Activity LED flashes green when there is controller activity.
• System Heartbeat LED blinks green seven times in three seconds, goes
dark for six seconds, then repeats the pattern.

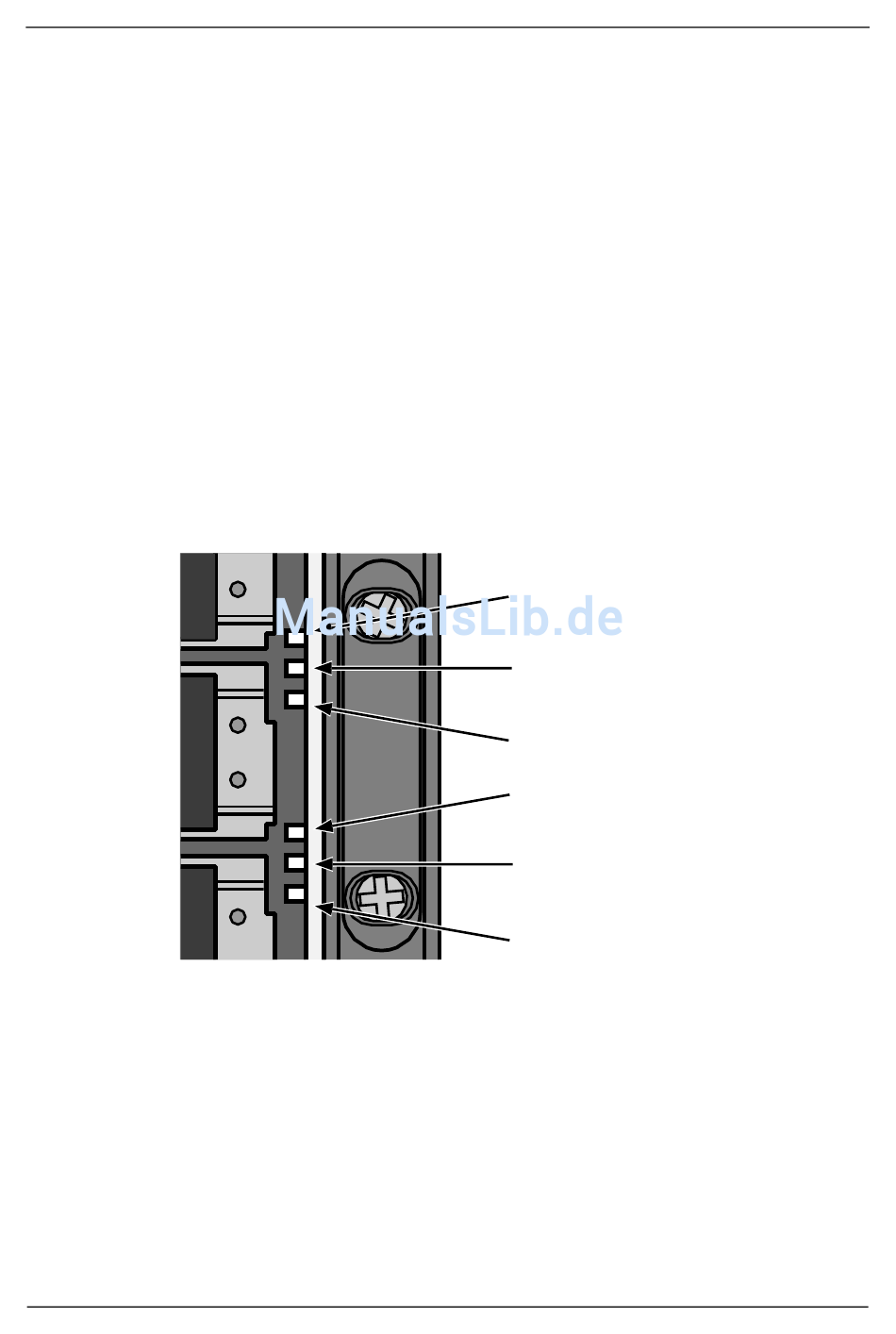

Figure 13.VessRAID front panel LED display
Power
Global Enclosure Status
Global RAID Status
Controller Activity
Reserved
System Heartbeat
