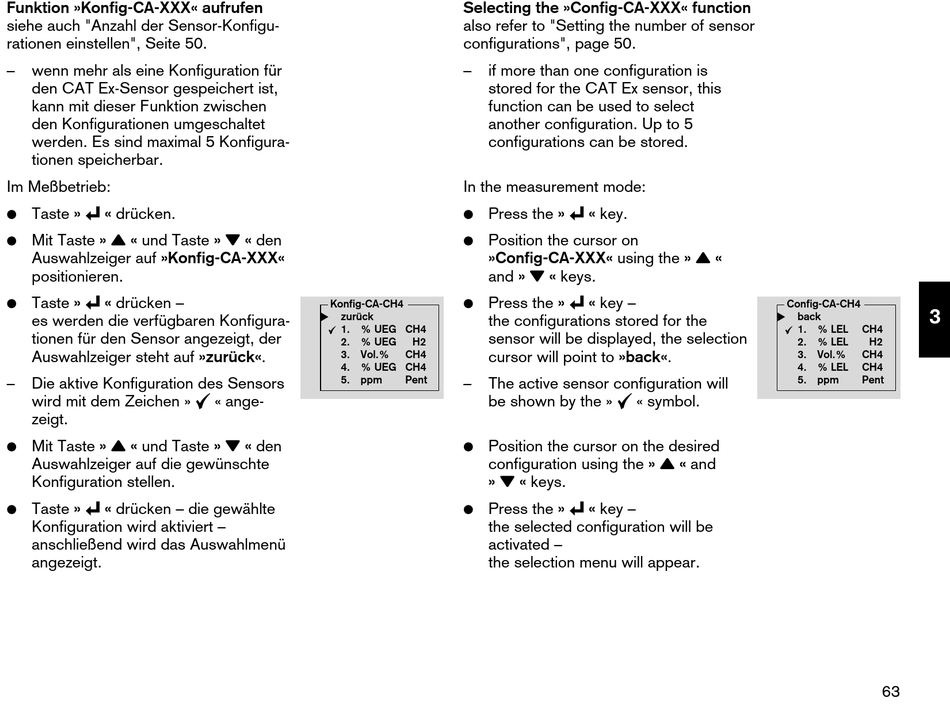

Funktion »Konfig-CA-XXX« aufrufen
siehe auch "Anzahl der Sensor-Konfigu-
rationen einstellen", Seite 50.
wenn mehr als eine Konfiguration für
den CAT Ex-Sensor gespeichert ist,
kann mit dieser Funktion zwischen
den Konfigurationen umgeschaltet
werden. Es sind maximal 5 Konfigura-
tionen speicherbar.
Im Meßbetrieb:
u
Taste »
« drücken.
q
Mit Taste »
« und Taste »
Auswahlzeiger auf »Konfig-CA-XXX«
positionieren.
u
Taste »
« drücken –
es werden die verfügbaren Konfigura-
tionen für den Sensor angezeigt, der
Auswahlzeiger steht auf »zurück«.
Die aktive Konfiguration des Sensors
n
wird mit dem Zeichen »
zeigt.
q
Mit Taste »
« und Taste »
Auswahlzeiger auf die gewünschte
Konfiguration stellen.
u
Taste »
« drücken – die gewählte
Konfiguration wird aktiviert –
anschließend wird das Auswahlmenü
angezeigt.
l
« den
Konfig-CA-CH4
zurück
n 1. % UEG CH4
2. % UEG
H2
3. Vol.%
CH4
4. % UEG CH4
5. ppm
Pent
« ange-
l
« den
Selecting the »Config-CA-XXX« function
also refer to "Setting the number of sensor
configurations", page 50.
if more than one configuration is
stored for the CAT Ex sensor, this
function can be used to select
another configuration. Up to 5
configurations can be stored.
In the measurement mode:
u
Press the »
« key.
Position the cursor on
»Config-CA-XXX« using the »
l
and »
« keys.
u
Press the »
« key –
the configurations stored for the
sensor will be displayed, the selection
cursor will point to »back«.
The active sensor configuration will
n
be shown by the »
« symbol.
Position the cursor on the desired
q
configuration using the »
l
»
« keys.
u
Press the »
« key –
the selected configuration will be
activated –
the selection menu will appear.
q
«
Config-CA-CH4
back
n 1. % LEL
CH4
2. % LEL
H2
3. Vol.%
CH4
4. % LEL
CH4
5. ppm
Pent
« and
