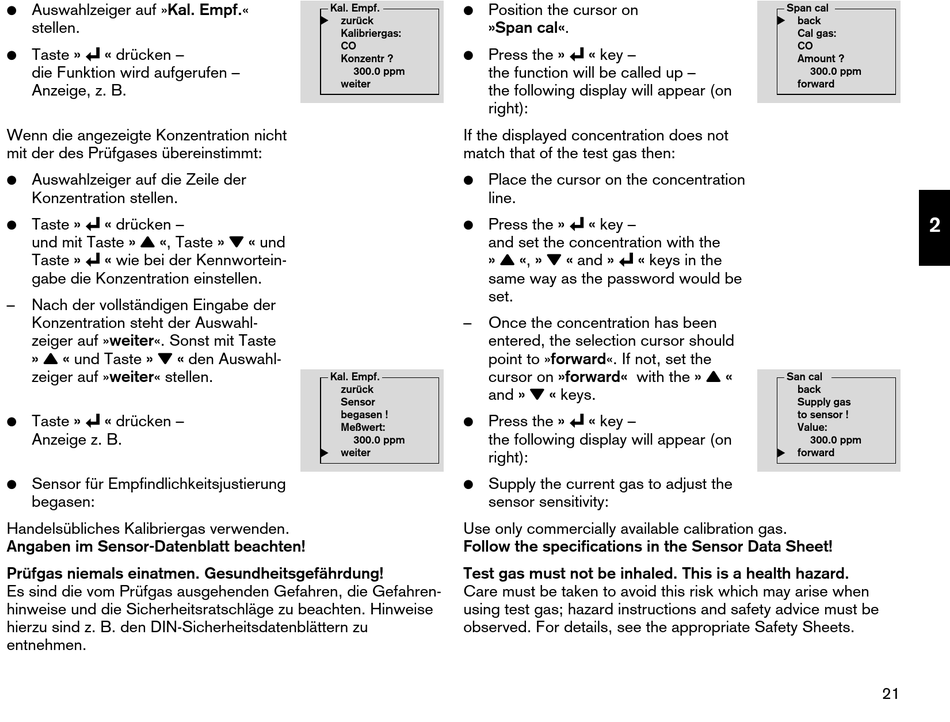

Auswahlzeiger auf »Kal. Empf.«
stellen.
u
Taste »
« drücken –
die Funktion wird aufgerufen –
Anzeige, z. B.
Wenn die angezeigte Konzentration nicht
mit der des Prüfgases übereinstimmt:
Auswahlzeiger auf die Zeile der
Konzentration stellen.
u
Taste »
« drücken –
q
und mit Taste »
«, Taste »
u
Taste »
« wie bei der Kennwortein-
gabe die Konzentration einstellen.
Nach der vollständigen Eingabe der
Konzentration steht der Auswahl-
zeiger auf »weiter«. Sonst mit Taste
q
l
»
« und Taste »
« den Auswahl-
zeiger auf »weiter« stellen.
u
Taste »
« drücken –
Anzeige z. B.
Sensor für Empfindlichkeitsjustierung
begasen:
Handelsübliches Kalibriergas verwenden.
Angaben im Sensor-Datenblatt beachten!
Prüfgas niemals einatmen. Gesundheitsgefährdung!
Es sind die vom Prüfgas ausgehenden Gefahren, die Gefahren-
hinweise und die Sicherheitsratschläge zu beachten. Hinweise
hierzu sind z. B. den DIN-Sicherheitsdatenblättern zu
entnehmen.
Kal. Empf.
zurück
Kalibriergas:
CO
Konzentr ?
300.0 ppm
weiter
l
« und
Kal. Empf.
zurück
Sensor
begasen !
Meßwert:
300.0 ppm
weiter
Position the cursor on
»Span cal«.
u
Press the »
« key –
the function will be called up –
the following display will appear (on
right):
If the displayed concentration does not
match that of the test gas then:
Place the cursor on the concentration
line.
u
Press the »
« key –
and set the concentration with the
q
l
u
»
«, »
« and »
« keys in the
same way as the password would be
set.
Once the concentration has been
entered, the selection cursor should
point to »forward«. If not, set the
cursor on »forward« with the »
l
and »
« keys.
u
Press the »
« key –
the following display will appear (on
right):
Supply the current gas to adjust the
sensor sensitivity:
Use only commercially available calibration gas.
Follow the specifications in the Sensor Data Sheet!
Test gas must not be inhaled. This is a health hazard.
Care must be taken to avoid this risk which may arise when
using test gas; hazard instructions and safety advice must be
observed. For details, see the appropriate Safety Sheets.
Span cal
back
Cal gas:
CO
Amount ?
300.0 ppm
forward
q
«
San cal
back
Supply gas
to sensor !
Value:
300.0 ppm
forward
