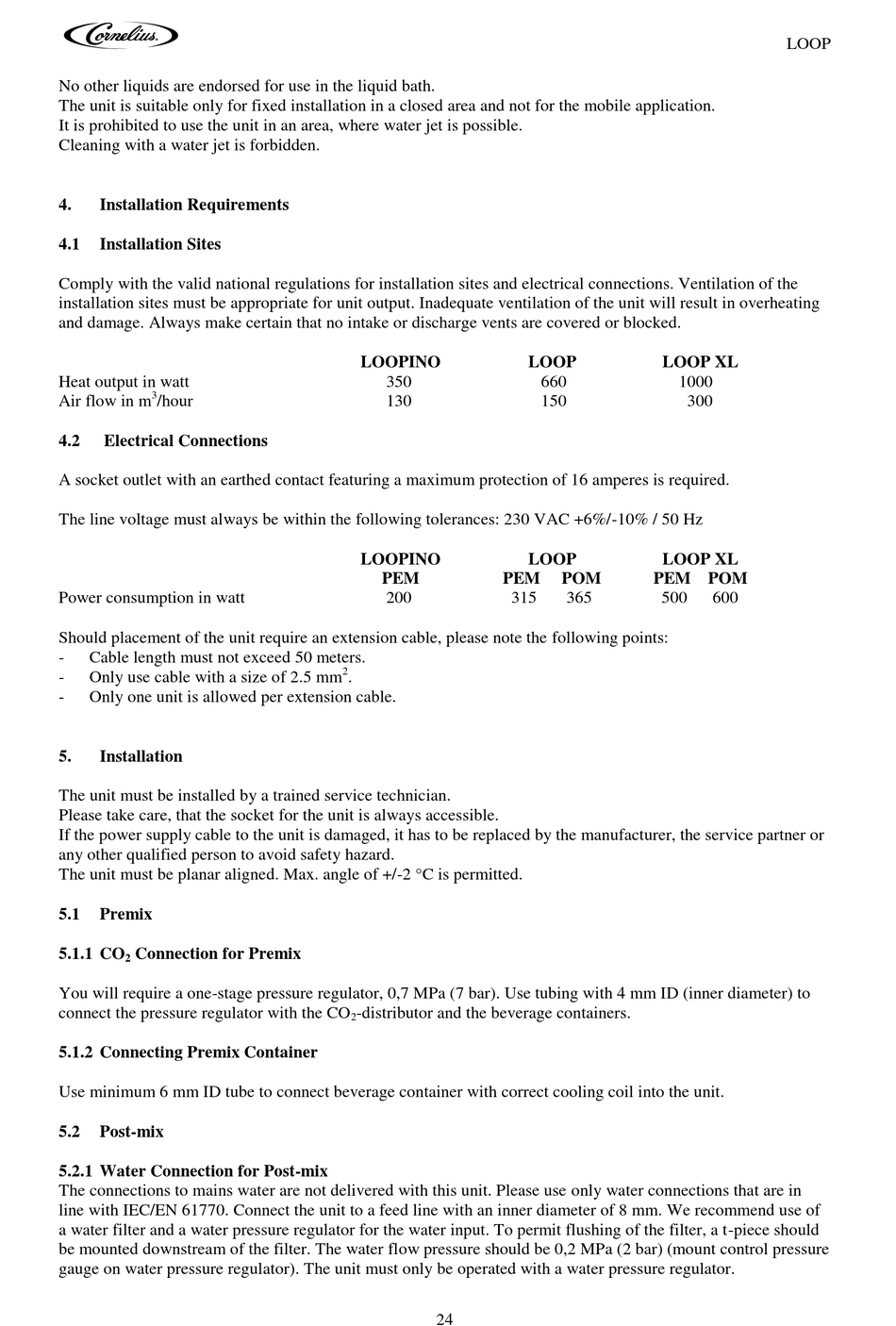

No other liquids are endorsed for use in the liquid bath.
The unit is suitable only for fixed installation in a closed area and not for the mobile application.
It is prohibited to use the unit in an area, where water jet is possible.
Cleaning with a water jet is forbidden.
4.

Installation Requirements

4.1

Installation Sites

Comply with the valid national regulations for installation sites and electrical connections. Ventilation of the
installation sites must be appropriate for unit output. Inadequate ventilation of the unit will result in overheating
and damage. Always make certain that no intake or discharge vents are covered or blocked.
Heat output in watt
3
Air flow in m /hour
4.2

Electrical Connections

A socket outlet with an earthed contact featuring a maximum protection of 16 amperes is required.
The line voltage must always be within the following tolerances: 230 VAC +6%/-10% / 50 Hz
Power consumption in watt
Should placement of the unit require an extension cable, please note the following points:
- Cable length must not exceed 50 meters.
- Only use cable with a size of 2.5 mm
- Only one unit is allowed per extension cable.
5.

Installation

The unit must be installed by a trained service technician.
Please take care, that the socket for the unit is always accessible.
If the power supply cable to the unit is damaged, it has to be replaced by the manufacturer, the service partner or
any other qualified person to avoid safety hazard.
The unit must be planar aligned. Max. angle of +/-2 °C is permitted.
5.1 Premix
5.1.1 CO Connection for Premix
2
You will require a one-stage pressure regulator, 0,7 MPa (7 bar). Use tubing with 4 mm ID (inner diameter) to
connect the pressure regulator with the CO
5.1.2 Connecting Premix Container
Use minimum 6 mm ID tube to connect beverage container with correct cooling coil into the unit.
5.2 Post-mix
5.2.1 Water Connection for Post-mix
The connections to mains water are not delivered with this unit. Please use only water connections that are in
line with IEC/EN 61770. Connect the unit to a feed line with an inner diameter of 8 mm. We recommend use of
a water filter and a water pressure regulator for the water input. To permit flushing of the filter, a t-piece should
be mounted downstream of the filter. The water flow pressure should be 0,2 MPa (2 bar) (mount control pressure
gauge on water pressure regulator). The unit must only be operated with a water pressure regulator.
