EN

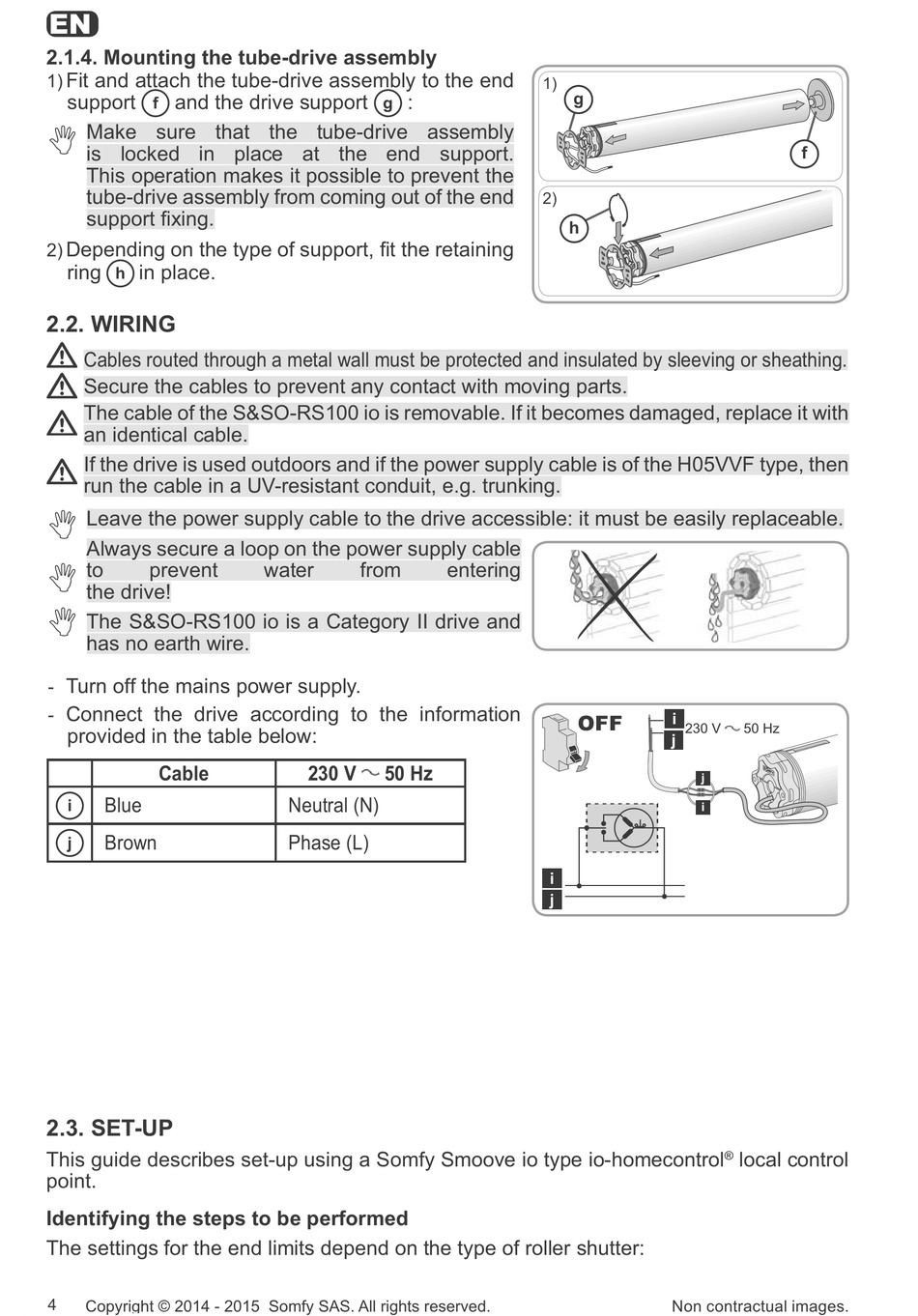

2.1.4. Mounting the tube-drive assembly
Fit and attach the tube-drive assembly to the end
1)
support and the drive support
f
1
Make sure that the tube-drive assembly
is locked in place at the end support.
This operation makes it possible to prevent the
tube-drive assembly from coming out of the end
VXSSRUW ¿[LQJ
'HSHQGLQJ RQ WKH W\SH RI VXSSRUW ¿W WKH UHWDLQLQJ
2)
ring in place.
h

2.2. WIRING

Cables routed through a metal wall must be protected and insulated by sleeving or sheathing.
Secure the cables to prevent any contact with moving parts.
The cable of the S&SO-RS100 io is removable. If it becomes damaged, replace it with
an identical cable.
If the drive is used outdoors and if the power supply cable is of the H05VVF type, then
run the cable in a UV-resistant conduit, e.g. trunking.
1
Leave the power supply cable to the drive accessible: it must be easily replaceable.
Always secure a loop on the power supply cable
1
to prevent
the drive!
1
The S&SO-RS100 io is a Category II drive and
has no earth wire.
Turn off the mains power supply.
-
Connect the drive according to the information
-
provided in the table below:
Cable
Blue
i
Brown
j

2.3. SET-UP

This guide describes set-up using a Somfy Smoove io type io-homecontrol
point.
Identifying the steps to be performed
The settings for the end limits depend on the type of roller shutter:
4
Copyright © 2014 - 2015 Somfy SAS. All rights reserved.
:
g
water from
230 V 50 Hz
Neutral (N)
Phase (L)
1)
g
2)
h
entering
OFF
i
j
f
i
230 V 50 Hz
j
j
i
® local control
Non contractual images.
