For a roller shutter
with rigid links
and with stops =
Plug&Play Operation
No setting to be performed:
the end limits are set
automatically.
1
Check that the roller
shutter and its
accessories are
UREXVWO\ ¿[HG
Please consult the roller
shutter manufacturer
or Somfy for information on
the compatibility of the drive
with the roller shutter and its
accessories.
1
7KH URWDWLRQ GLUHFWLRQ RI WKH GULYH VHOIDGMXVWV DXWRPDWLFDOO\ GXULQJ WKH ¿UVW
few cycles. 'XULQJ WKH ¿UVW IHZ PRYHPHQWV RI WKH UROOHU VKXWWHU WKH RUGHUV 9 may
be inverted (they adjust automatically without the need for any settings, after a
maximum of 2 complete cycles, from one end limit to the other). For a roller shutter
below 0.5 m² (0.6 mx 0.7 m), see Questions on the S&SO-RS100 io? section.
Copyright © 2014 - 2015 Somfy SAS. All rights reserved.

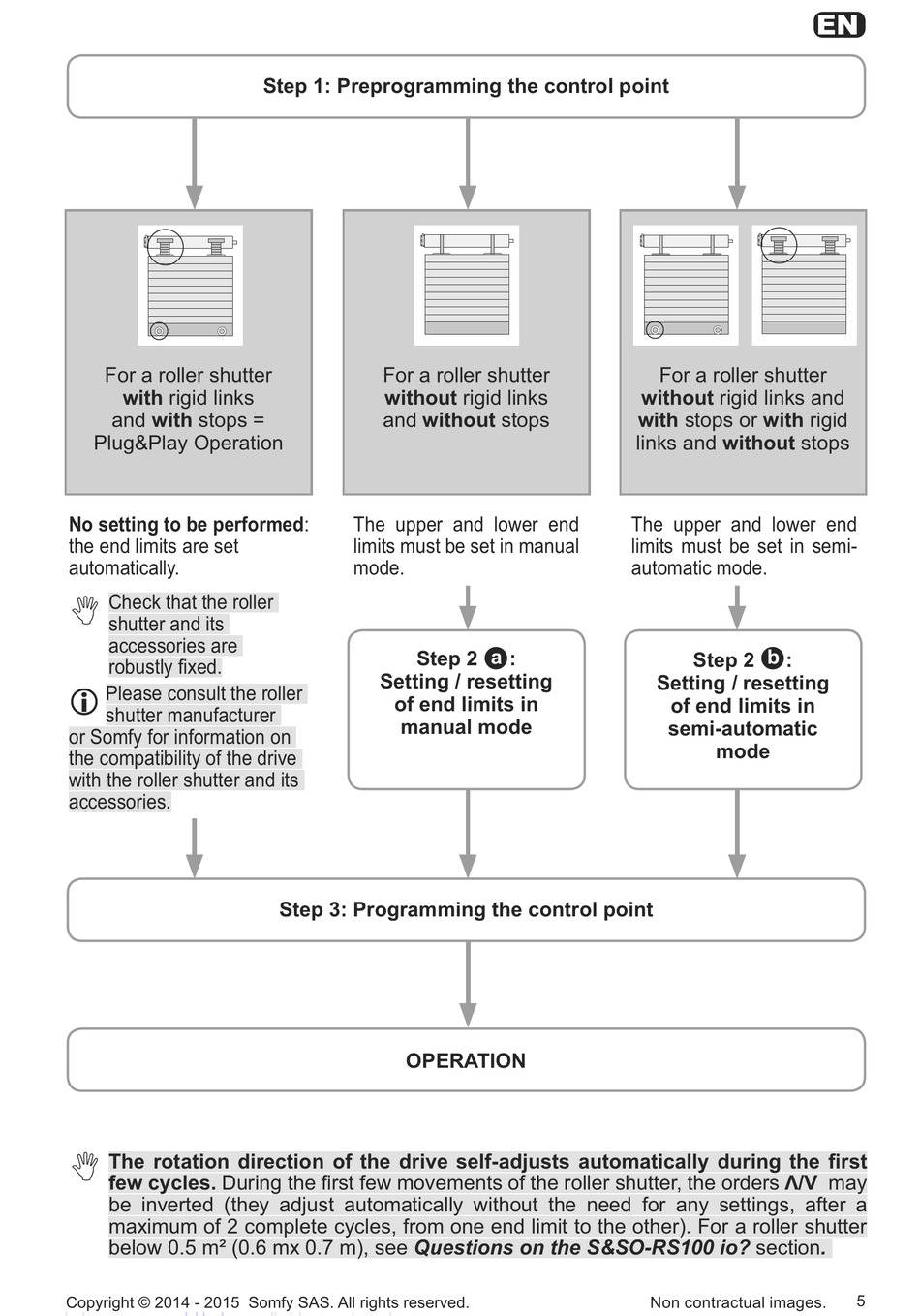

Step 1: Preprogramming the control point
For a roller shutter
without rigid links
and without stops
The upper and lower end
limits must be set in manual
mode.
Step 2
Setting / resetting
of end limits in
manual mode
Step 3: Programming the control point
OPERATION
For a roller shutter
without rigid links and
with stops or with rigid
links and without stops
The upper and lower end
limits must be set in semi-
automatic mode.
a
:
Setting / resetting
Non contractual images.
EN
b
Step 2 :
of end limits in
semi-automatic
mode
5
