EN

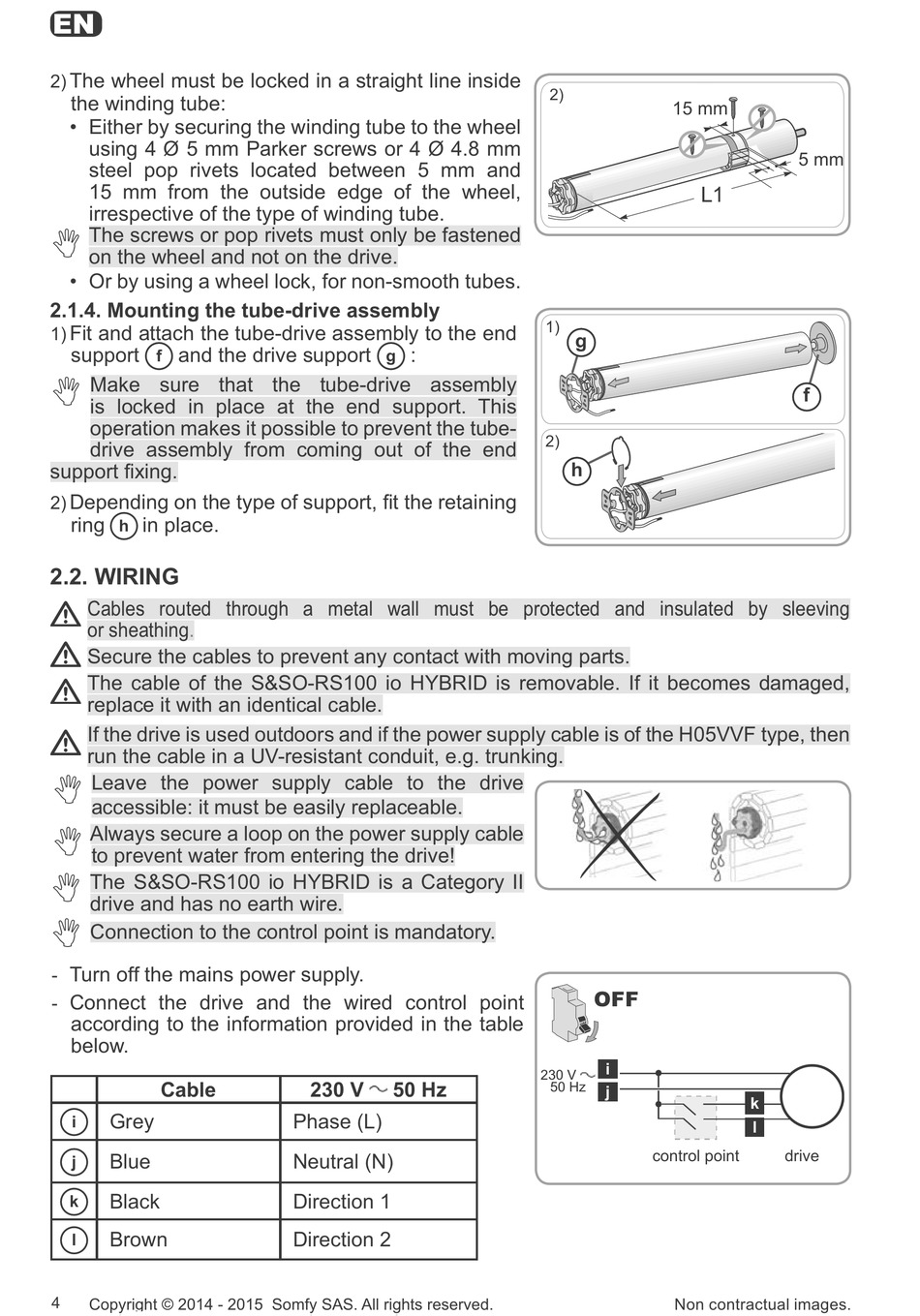

The wheel must be locked in a straight line inside
2)
the winding tube:
‡ Either by securing the winding tube to the wheel
using 4 Ø 5 mm Parker screws or 4 Ø 4.8 mm
steel pop rivets located between 5 mm and
15 mm from the outside edge of the wheel,
irrespective of the type of winding tube.
1
The screws or pop rivets must only be fastened
on the wheel and not on the drive.
‡ Or by using a wheel lock, for non-smooth tubes.
2.1.4. Mounting the tube-drive assembly
Fit and attach the tube-drive assembly to the end
1)
support and the drive support
f
1
Make sure that the tube-drive assembly
is locked in place at the end support. This
operation makes it possible to prevent the tube-
drive assembly from coming out of the end
VXSSRUW ¿[LQJ
'HSHQGLQJ RQ WKH W\SH RI VXSSRUW ¿W WKH UHWDLQLQJ
2)
ring in place.
h

2.2. WIRING

Cables routed through a metal wall must be protected and insulated by sleeving
or sheathing.
Secure the cables to prevent any contact with moving parts.
The cable of the S&SO-RS100 io HYBRID is removable. If it becomes damaged,
replace it with an identical cable.
If the drive is used outdoors and if the power supply cable is of the H05VVF type, then
run the cable in a UV-resistant conduit, e.g. trunking.
1
Leave the power supply cable to the drive
accessible: it must be easily replaceable.
1
Always secure a loop on the power supply cable
to prevent water from entering the drive!
1
The S&SO-RS100 io HYBRID is a Category II
drive and has no earth wire.
1
Connection to the control point is mandatory.
Turn off the mains power supply.
-
Connect the drive and the wired control point
-
according to the information provided in the table
below.
Cable
Grey
i
Blue
j
Black
k
Brown
l
4
Copyright © 2014 - 2015 Somfy SAS. All rights reserved.
:
g
230 V 50 Hz
Phase (L)
Neutral (N)
Direction 1
Direction 2
2)
15 mm
L1
1)
g
2)
h
OFF
i
230 V
50 Hz
j
control point
Non contractual images.
5 mm
f
k
l
drive
