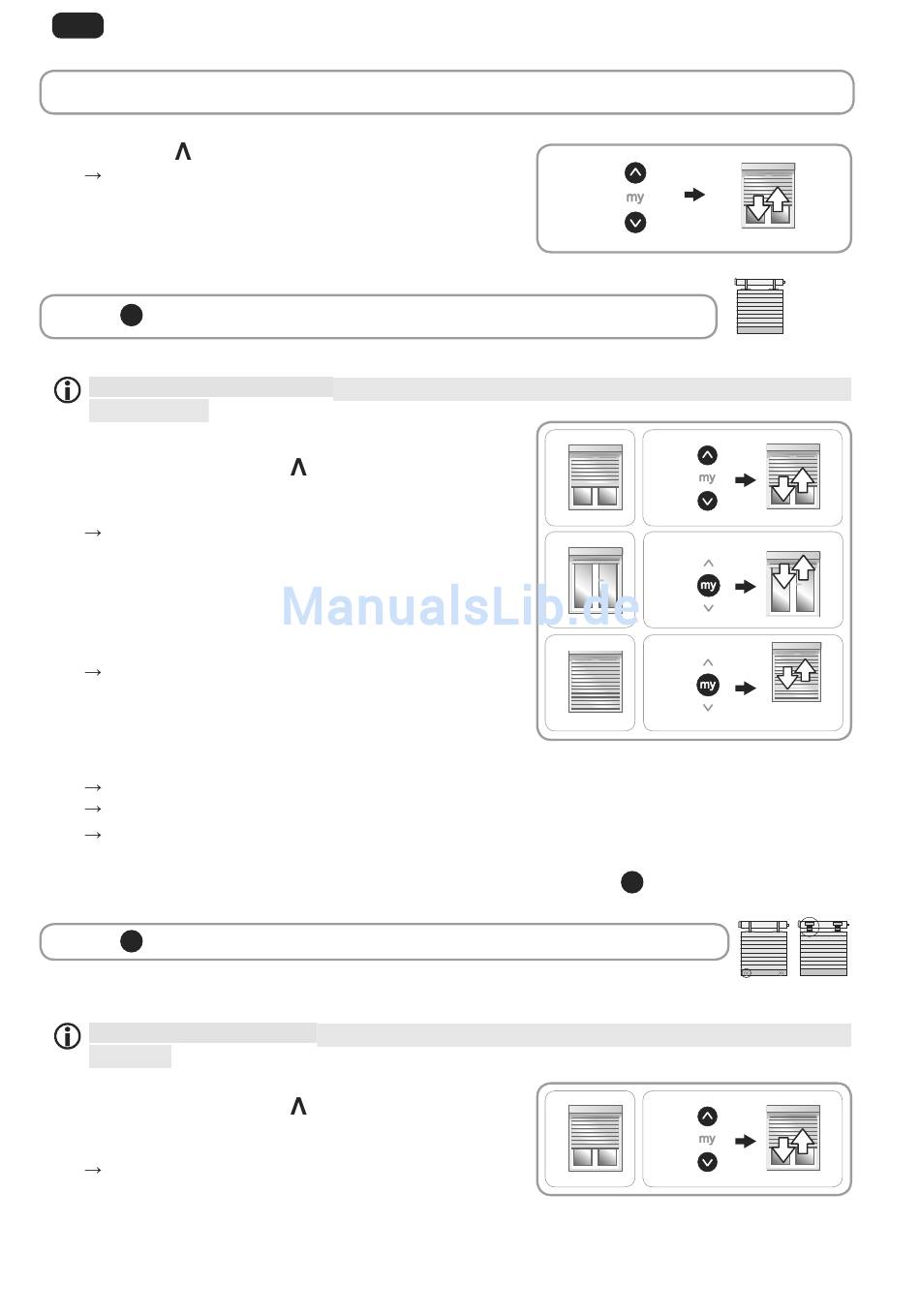

Step 1: Preprogramming the Somfy io-homecontrol
Turn the power supply back on
-
Press both and
-
The roller shutter moves back and forth:
this control point is now preprogrammed in
the drive.
7KH GULYH LV LQ SURJUDPPLQJ PRGH IRU §  PLQXWHV
a
Step 2 : Setting / resetting of end limits in manual mode
This procedure is only applicable to roller shutters without rigid links and without stops.
From 3), in set mode, tKH UROOHU VKXWWHU PRYHV PRUH VORZO\ GXULQJ WKH ¿UVW
few seconds.
Position the roller shutter at its half-way position.
1)
Simultaneously press
2)
there is back and forth movement by the roller
shutter.
The drive is in set mode.
7KH GULYH UHPDLQV LQ VHW PRGH IRU §  PLQ
Move the roller shutter to the desired upper (or
3)
lower) end limit.
my
Press , for § 2 s, until there is back and
4)
forth movement by the roller shutter.
7KH VHWWLQJ IRU WKH ¿UVW HQG OLPLW LV FRQ¿UPHG
Move the roller shutter to the desired lower (or
5)
upper) end limit.
my
Press , for § 2 s, until there are two back
6)
and forth movements by the roller shutter.
7KH VHWWLQJ IRU WKH VHFRQG HQG OLPLW LV FRQ¿UPHG
The settings for the end limits are programmed.
The drive enters programming mode for § 10 min. if no control point is programmed.
The procedure for modifying the end limit settings is identical to the initial setting
procedure. To modify the settings at a later time, repeat step 2
b
Step 2 : Setting / resetting of end limits in semi-automatic mode
This procedure is only applicable to roller shutters without rigid links and
with stops, and roller shutters with rigid links and without stops.
From 3), in set mode, tKH UROOHU VKXWWHU PRYHV PRUH VORZO\ GXULQJ WKH ¿UVW IHZ
seconds.
Position the roller shutter at its half-way position.
1)
Simultaneously press
2)
there is back and forth movement by the roller
shutter.
The drive is in set mode.
7KH GULYH UHPDLQV LQ VHW PRGH IRU §  PLQ
