EN

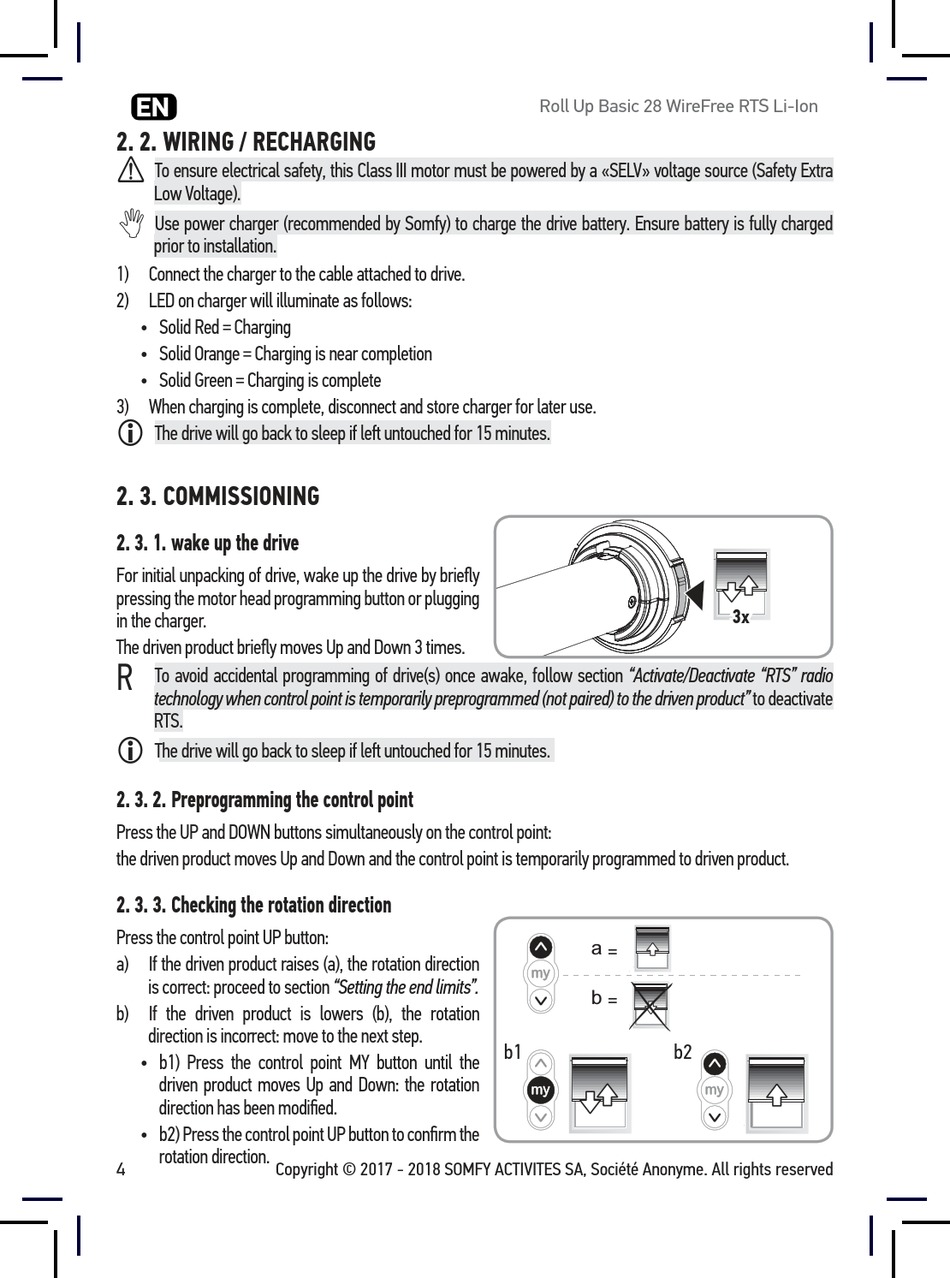

2. 2. WIRING / RECHARGING

⚠
To ensure electrical safety, this Class III motor must be powered by a «SELV» voltage source (Safety Extra
Low Voltage).
1
Use power charger (recommended by Somfy) to charge the drive battery. Ensure battery is fully charged
prior to installation.
1) Connect the charger to the cable attached to drive.
2) LED on charger will illuminate as follows:
• Solid Red = Charging
• Solid Orange = Charging is near completion
• Solid Green = Charging is complete
3) When charging is complete, disconnect and store charger for later use.
Β
The drive will go back to sleep if left untouched for 15 minutes.

2. 3. COMMISSIONING

2. 3. 1. wake up the drive
For initial unpacking of drive, wake up the drive by briefly
pressing the motor head programming button or plugging
in the charger.
The driven product briefly moves Up and Down 3 times.
R
To avoid accidental programming of drive(s) once awake, follow section "Activate/Deactivate "RTS" radio
technology when control point is temporarily preprogrammed (not paired) to the driven product" to deactivate
RTS.
Β
The drive will go back to sleep if left untouched for 15 minutes.
2. 3. 2. Preprogramming the control point
Press the UP and DOWN buttons simultaneously on the control point:
the driven product moves Up and Down and the control point is temporarily programmed to driven product.

2. 3. 3. Checking the rotation direction

Press the control point UP button:
a) If the driven product raises (a), the rotation direction
is correct: proceed to section "Setting the end limits".
b) If the driven product is lowers (b), the rotation
direction is incorrect: move to the next step.
• b1) Press the control point MY button until the
driven product moves Up and Down: the rotation
direction has been modified.
• b2) Press the control point UP button to confirm the
rotation direction.
Copyright © 2017 - 2018 SOMFY ACTIVITES SA, Société Anonyme. All rights reserved
4
Roll Up Basic 28 WireFree RTS Li-Ion
a
=
b
=
b1 b2
3x
