DMX-controlled operation

You can control the projectors individually via your DMX-controller.
The device has six different DMX channel modes.
Every DMX-channel has a different occupation with different features. The individual channels and their
features are listed under DMX-protocol.

Addressing

The Control Board allows you to assign the DMX starting address, which is defined as the first channel from
which the LED MFX-9 Beam Effect will respond to the controller.
If you set, for example, the address in the 49 channel mode to channel 50, the device will use the channels
50 to 98 for control.
Please, be sure that you don't have any overlapping channels in order to control each LED MFX-9 Beam
Effect correctly and independently from any other fixture on the DMX-chain.
If several LED MFX-9 Beam Effects are addressed similarly, they will work synchronically.
Press the Up/Down-buttons for setting the desired starting address. Now you can start operating the LED
MFX-9 Beam Effect via your lighting controller.
The individual channels and their features are listed under DMX-protocol.
7
1
2
3
Note:
After switching on, the device will automatically detect whether DMX 512 data is received or not. If the data
is received at the DMX-input, the display will not blink. If there is no data received at the DMX-input, the
display will blink.
This situation can occur if:
- the XLR plug (cable with DMX signal from controller) is not connected with the input of the device.
- the controller is switched off or defective,
- the cable or connector is defective or the signal wires are swap in the input connector.
8
9
4

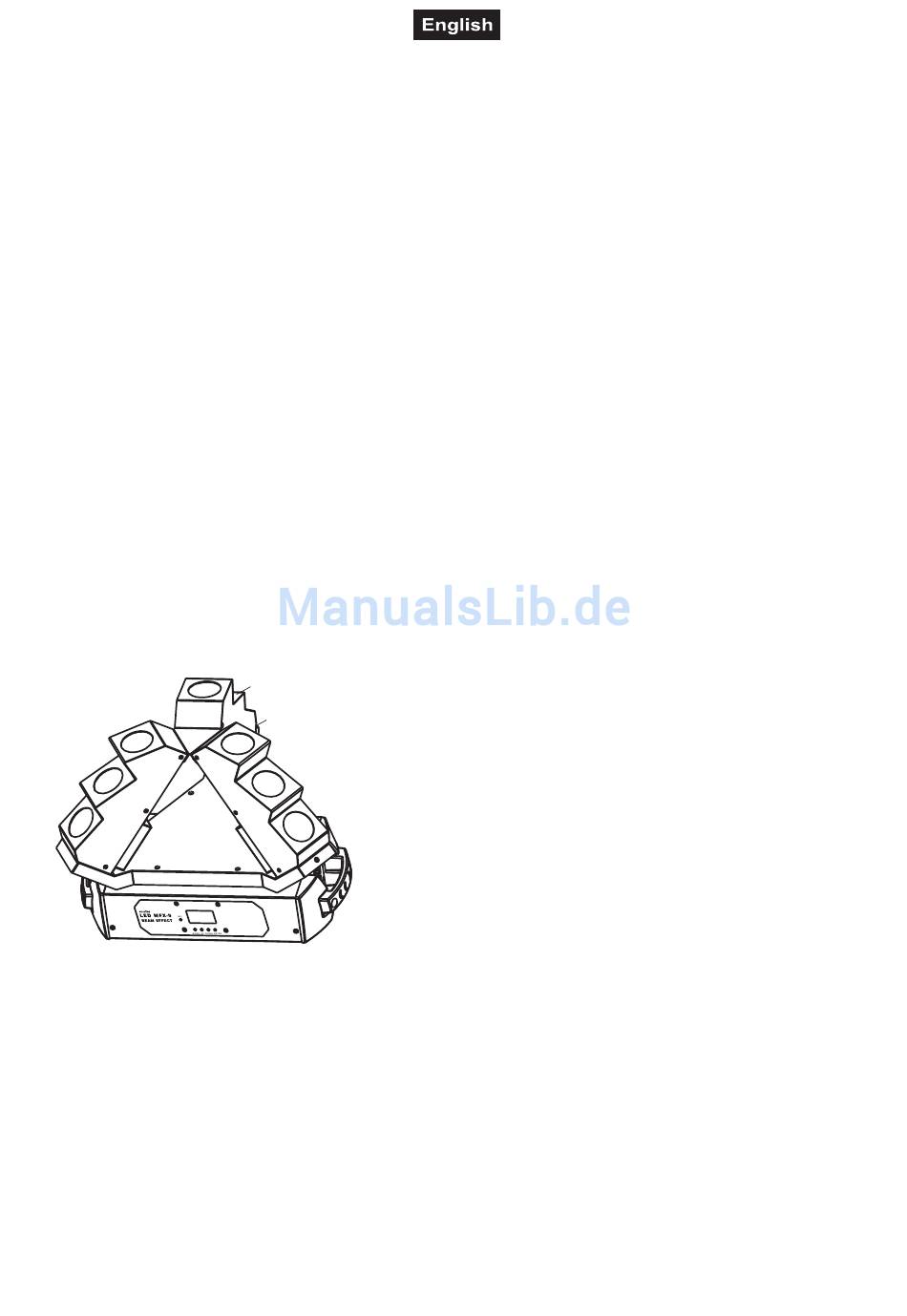

The LEDs of the device are arranged in the following order
5 (see graphic) and can be individually controlled with the
following DMX-protocol.
6
