The machine can work at all the tilted positions described by the engine manufacturer provided that the attendant is able to lead it safely for both him

and his surroundings.



Safe climbing ability of the machine is 10º.

Protective devices meet the requirements of EN 12733 and ČSN EN 12733 standards. These standards focus primarily on the attending persons'

safety, as they may not be hit by stones and other subjects flying form the machine rotary system. Therefore, the attending person must always be in

normal operating position, i.e. behind the mower, holding the handles firmly with both hands.



It is forbidden to remove any protective devices and covers from the machines.

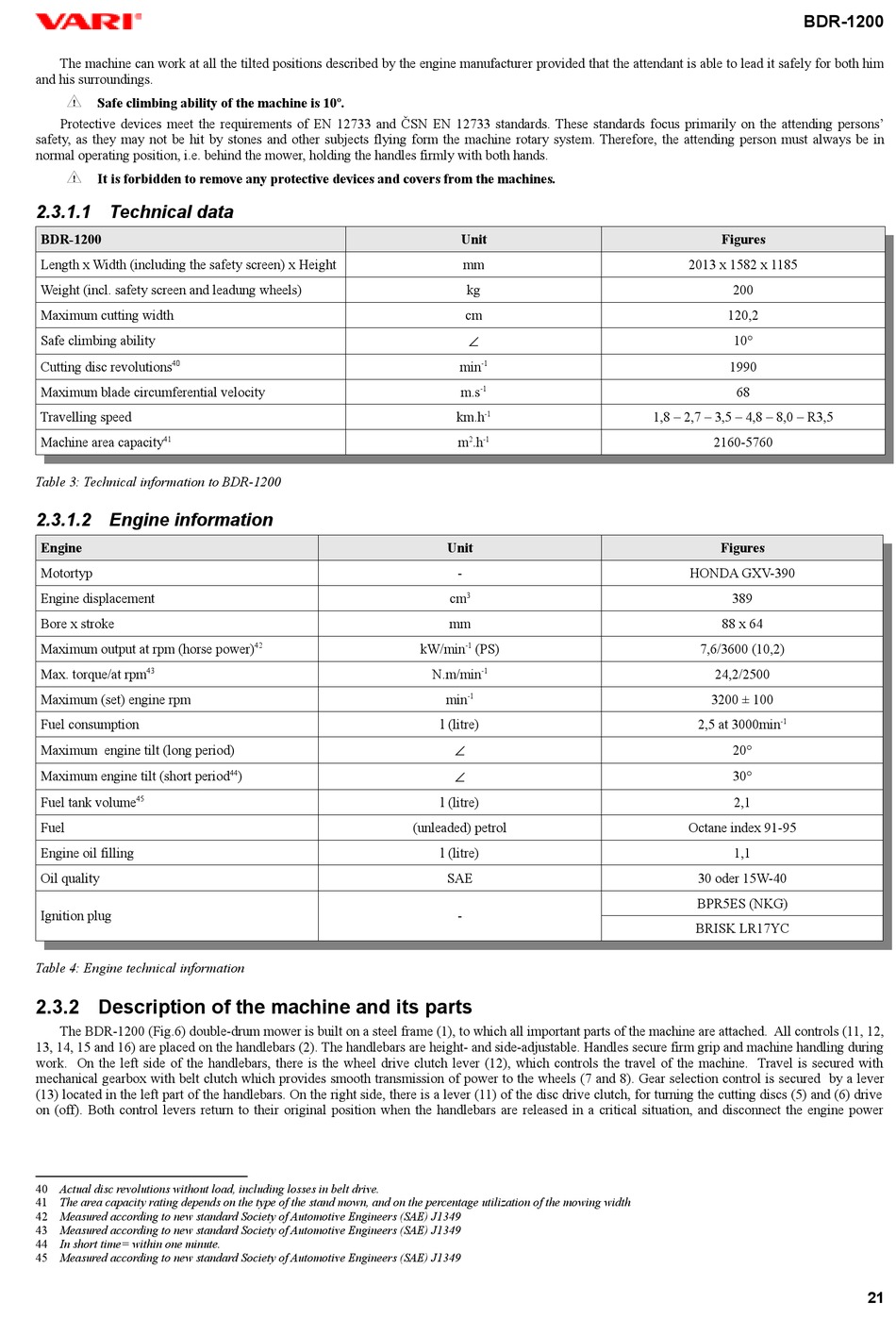

2.3.1.1 Technical data

BDR-1200

Length x Width (including the safety screen) x Height

Weight (incl. safety screen and leadung wheels)

Maximum cutting width

Safe climbing ability

Cutting disc revolutions

Maximum blade circumferential velocity

Travelling speed

Machine area capacity

Table 3: Technical information to BDR-1200

2.3.1.2 Engine information

Engine

Motortyp

Engine displacement

Bore x stroke

Maximum output at rpm (horse power)

Max. torque/at rpm

Maximum (set) engine rpm

Fuel consumption

Maximum engine tilt (long period)

Maximum engine tilt (short period

Fuel tank volume

Fuel

Engine oil filling

Oil quality

Ignition plug

Table 4: Engine technical information

2.3.2 Description of the machine and its parts

The BDR-1200 (Fig.6) double-drum mower is built on a steel frame (1), to which all important parts of the machine are attached. All controls (11, 12,

13, 14, 15 and 16) are placed on the handlebars (2). The handlebars are height- and side-adjustable. Handles secure firm grip and machine handling during

work. On the left side of the handlebars, there is the wheel drive clutch lever (12), which controls the travel of the machine. Travel is secured with

mechanical gearbox with belt clutch which provides smooth transmission of power to the wheels (7 and 8). Gear selection control is secured by a lever

(13) located in the left part of the handlebars. On the right side, there is a lever (11) of the disc drive clutch, for turning the cutting discs (5) and (6) drive

on (off). Both control levers return to their original position when the handlebars are released in a critical situation, and disconnect the engine power

40 Actual disc revolutions without load, including losses in belt drive.

41 The area capacity rating depends on the type of the stand mown, and on the percentage utilization of the mowing width

42 Measured according to new standard Society of Automotive Engineers (SAE) J1349

43 Measured according to new standard Society of Automotive Engineers (SAE) J1349

44 In short time= within one minute.

45 Measured according to new standard Society of Automotive Engineers (SAE) J1349

)

Unit

∠

min

-1

m.s
