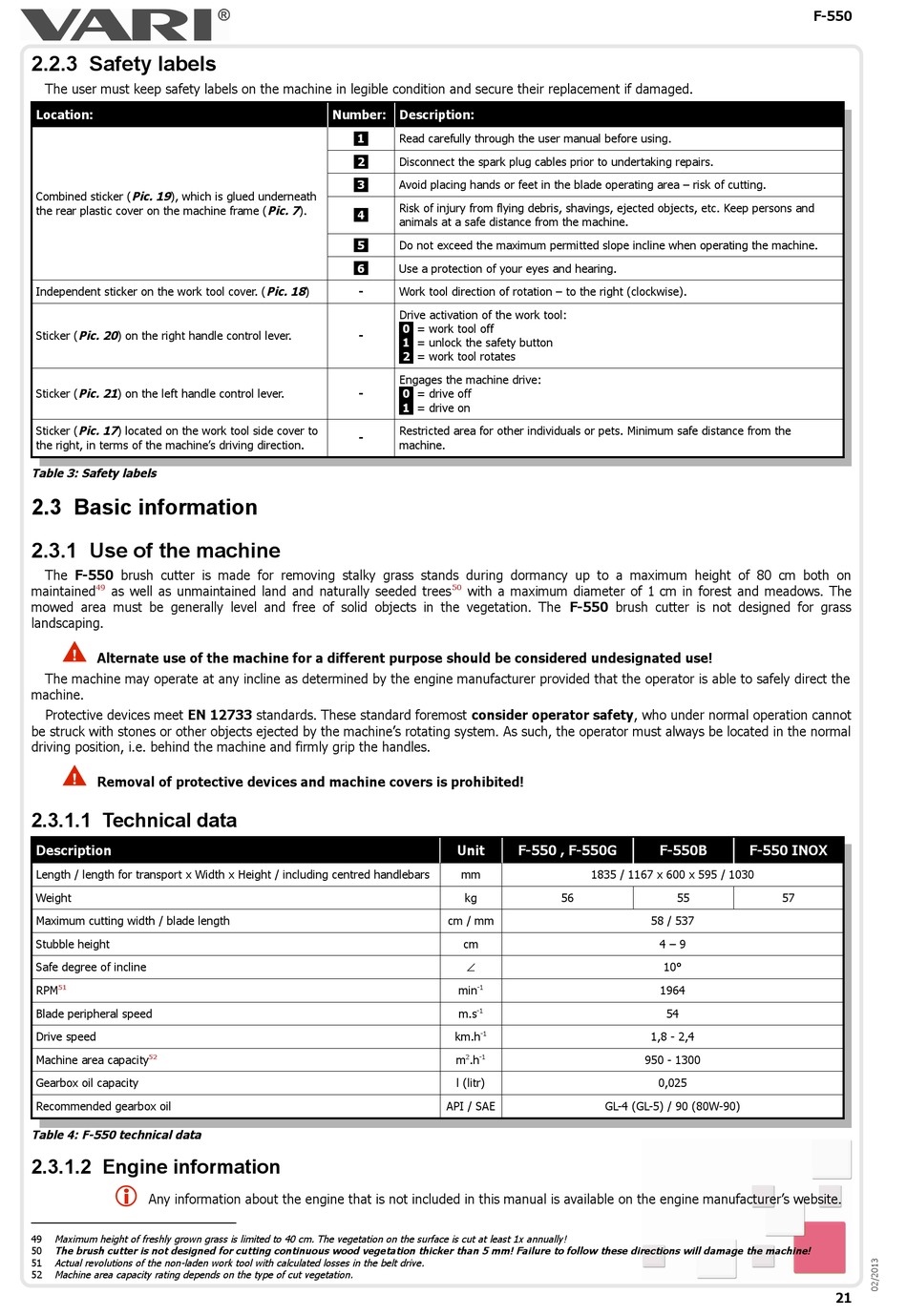

2.2.3 Safety labels

The user must keep safety labels on the machine in legible condition and secure their replacement if damaged.
Location:
Combined sticker ( Pic. 19 ), which is glued underneath
the rear plastic cover on the machine frame ( Pic. 7 ).
Independent sticker on the work tool cover. ( Pic. 18 )
Sticker ( Pic. 20 ) on the right handle control lever.
Sticker ( Pic. 21 ) on the left handle control lever.
Sticker ( Pic. 17 ) located on the work tool side cover to
the right, in terms of the machine's driving direction.
Table 3: Safety labels

2.3 Basic information

2.3.1 Use of the machine

The F-550 brush cutter is made for removing stalky grass stands during dormancy up to a maximum height of 80 cm both on
maintained 49 as well as unmaintained land and naturally seeded trees
mowed area must be generally level and free of solid objects in the vegetation. The F-550 brush cutter is not designed for grass
landscaping.

Alternate use of the machine for a different purpose should be considered undesignated use!
The machine may operate at any incline as determined by the engine manufacturer provided that the operator is able to safely direct the
machine.
Protective devices meet EN 12733 standards. These standard foremost consider operator safety, who under normal operation cannot
be struck with stones or other objects ejected by the machine's rotating system. As such, the operator must always be located in the normal
driving position, i.e. behind the machine and firmly grip the handles.

Removal of protective devices and machine covers is prohibited!

2.3.1.1 Technical data

Description
Length / length for transport x Width x Height / including centred handlebars
Weight
Maximum cutting width / blade length
Stubble height
Safe degree of incline
RPM 51
Blade peripheral speed
Drive speed
Machine area capacity 52
Gearbox oil capacity
Recommended gearbox oil
Table 4: F-550 technical data

2.3.1.2 Engine information


Any information about the engine that is not included in this manual is available on the engine manufacturer's website.
Maximum height of freshly grown grass is limited to 40 cm. The vegetation on the surface is cut at least 1x annually!
49
50 The brush cutter is not designed for cutting continuous wood vegetation thicker than 5 mm! Failure to follow these directions will damage the machine!
Actual revolutions of the non-laden work tool with calculated losses in the belt drive.
51
52 Machine area capacity rating depends on the type of cut vegetation.
Number: Description:
1 Read carefully through the user manual before using.
2 Disconnect the spark plug cables prior to undertaking repairs.
3 Avoid placing hands or feet in the blade operating area – risk of cutting.
Risk of injury from flying debris, shavings, ejected objects, etc. Keep persons and
4
animals at a safe distance from the machine.
5 Do not exceed the maximum permitted slope incline when operating the machine.
6 Use a protection of your eyes and hearing.
- Work tool direction of rotation – to the right (clockwise).
Drive activation of the work tool:
0 = work tool off
-
1 = unlock the safety button
2 = work tool rotates
Engages the machine drive:
- 0 = drive off
1 = drive on
Restricted area for other individuals or pets. Minimum safe distance from the
-
machine.
50 with a maximum diameter of 1 cm in forest and meadows. The
Unit
mm
kg
cm / mm
cm
∠
min -1
m.s -1
km.h -1
m 2 .h -1
l (litr)
API / SAE
F-550 , F-550G F-550B
1835 / 1167 x 600 x 595 / 1030
56 55
58 / 537
4 – 9
10°
1964
54
1,8 - 2,4
950 - 1300
0,025
GL-4 (GL-5) / 90 (80W-90)
F-550
F-550 INOX
57
21
