Bedienelemente - SPL Passeq 1654 Handbuch

HF -
1
Hz
2
MF -
dB
3 4
dB
Hz
6
LF -
dB
5
Hz

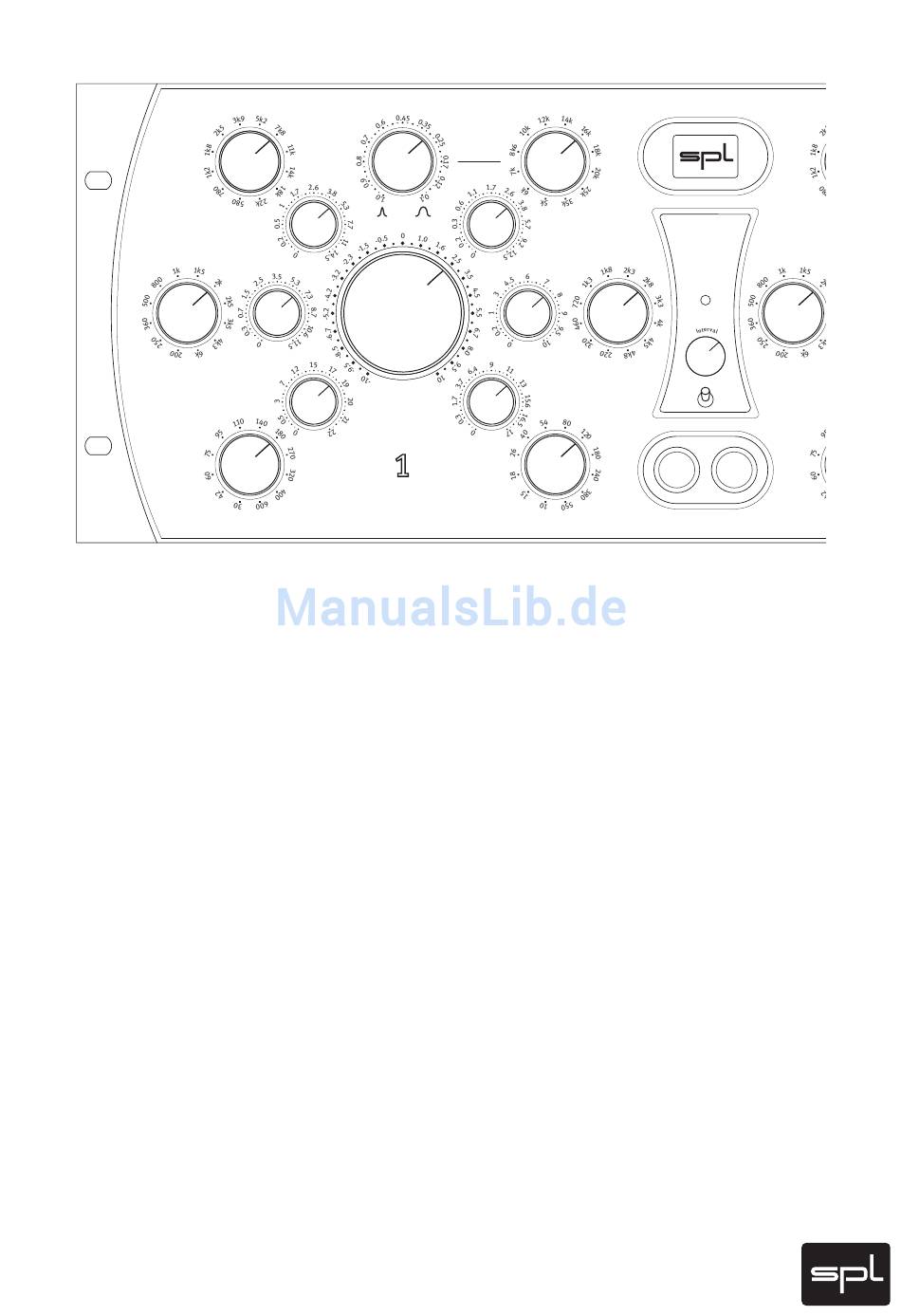

1 HF- Frequenz
2 HF- Gain
3 MF- Frequenz
4 MF- Gain
5 LF- Frequenz
6 LF- Gain
7 HF+ Frequenz
8 HF+ Gain
9 HF+ Q
10 MF+ Frequenz
11 MF+ Gain
12 LF+ Frequenz
13 LF+ Gain
Q
9
8
dB
14 11
dB
dB
13
Output
dB
Sound Performance Lab
14 Output
15 Power-LED
16 Auto Bypass
17 Kanalschalter

Bedienelemente
