Er5
The time is taken to recognise that the sensor has not been placed
in the medium when the heating is switched on.
Note: The user can set a value from 1 to 30 min for this time limit
depending on the application.
If time limit is set to 0 min, the Error 5 detection is disabled.
Settings
Languages:
The "Languages" option allows the user to select the desired lan-
guage by turning and pressing the rotary/push knob (D). A tick
indicates the language that is set for the system.
Units:
The "Units" option allows the user to select the desired unit for
displaying the temperature. The choice is between "°C" or "°F"
and is made by turning and pressing the rotary/push knob (D). A
tick indicates the unit that is set for the system.
Display:
The "Display" option allows the user to change the background
color between "Black" and "White", and display "Firmware Update
Information". A tick shows that the option is activated.
Sound:
The "Sound" option allows the user to activate/deactivate the key
tone. A tick shows that the option is activated.
Micro-USB
This function will only be active if:
- Sensor temperature is < 50 °C
- Difference target temperature / sensor temperature > 5 K
Factory Settings:
Select the "Factory Settings" option by turning and pressing the
rotary/push knob. The system requests confirmation to restore the
factory settings. Pressing the "OK" button resets all the system
settings to the original standard values set at dispatch from the
factory (see "Menu structure").
Communication:
The "Bluetooth" option allows the user to activate/deactivate the
"Bluetooth" function. A tick shows that the option is activated.
The device allows the user to establish a connection to a wireless
controller box.
The device can then be operated via a wireless controller box
within a range of 10 m (without obstructions).
Please refer to the separate instruction manual for the wireless
controller box for more details.
Information:
The "Information" option offers the user an overview of the most
important system settings of the stirrer RET control-visc.

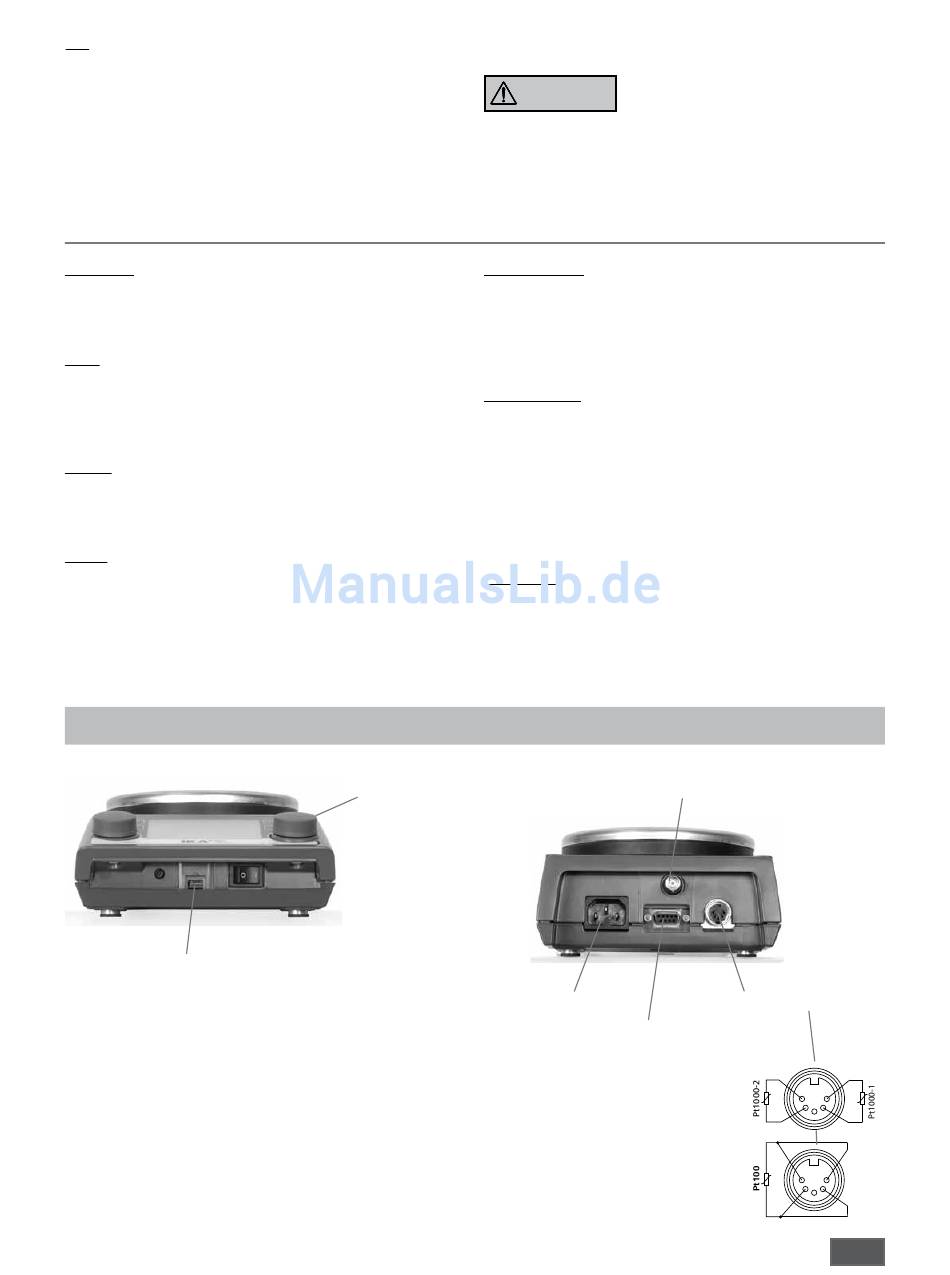

Connections and interfaces

Bluetooth
Power supply con-
CAUTION
BNC connector (only for pH probe)
nection
RS 232
9-pin connector
PT 100 / PT 1000 plug
