12

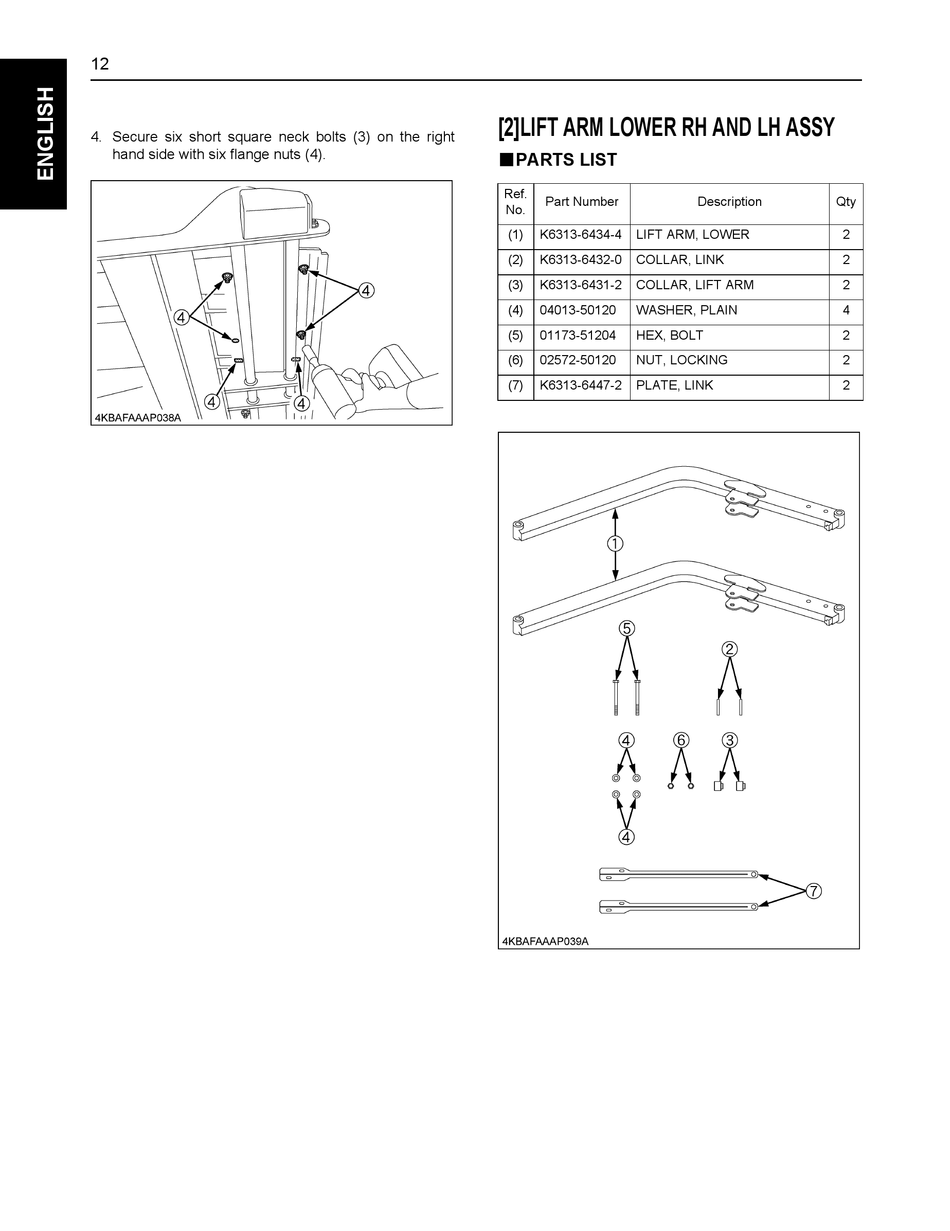

4. Secure six short square neck bolts (3) on the right
hand side with six flange nuts (4).
[2]LIFT ARM LOWER RH AND LH ASSY
BPARTS LIST
Ref.
Part Number
No.
(1) K6313-6434-4 LIFT ARM, LOWER
(2) K6313-6432-0 COLLAR, LINK
(3) K6313-6431-2 COLLAR, LIFT ARM
(4) 04013-50120 WASHER, PLAIN
(5) 01173-51204 HEX, BOLT
(6) 02572-50120 NUT, LOCKING
(7) K6313-6447-2 PLATE, LINK
Description Qty
2
2
2
4
2
2
2
