8.2

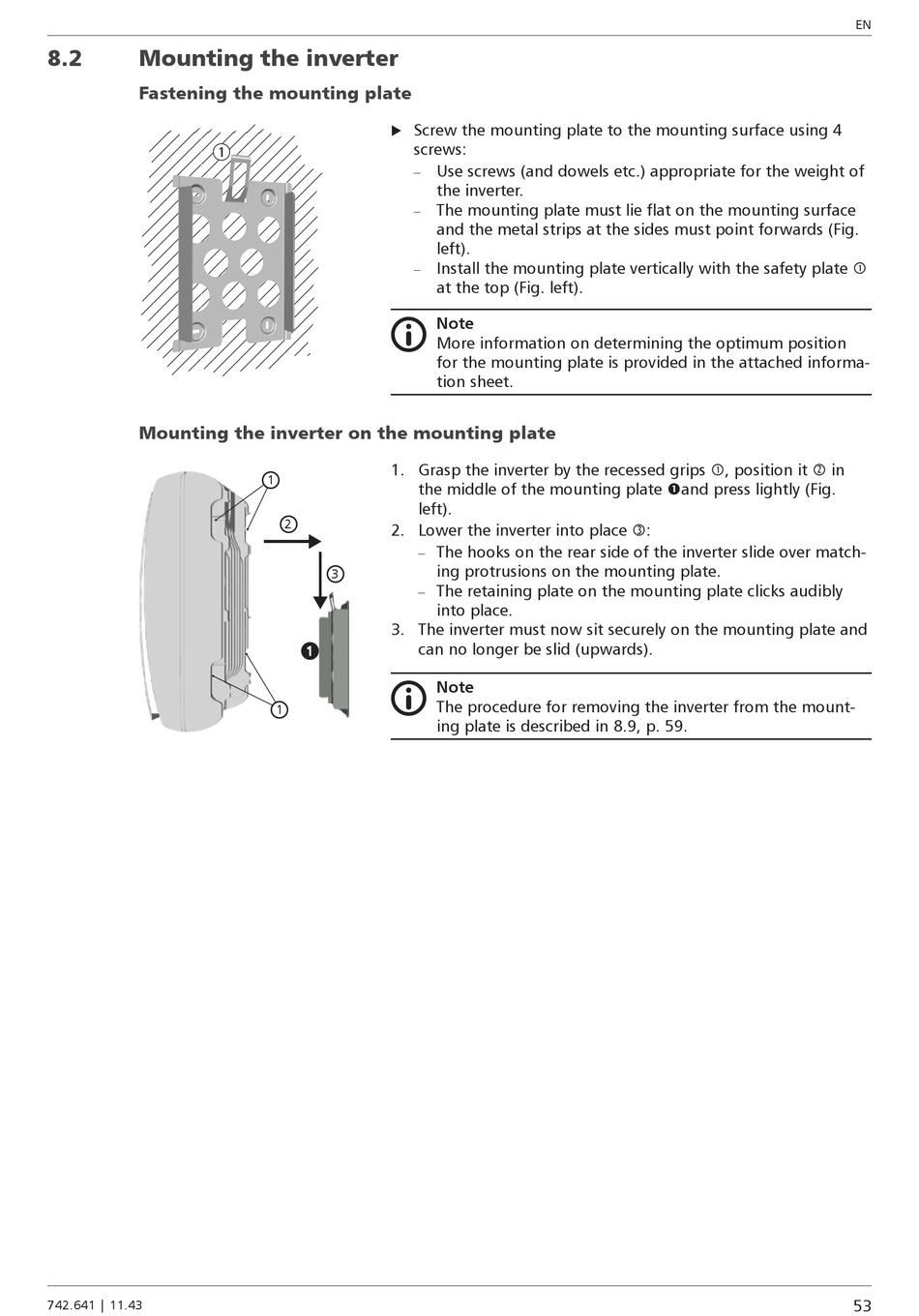

Mounting the inverter

Fastening the mounting plate
1
Mounting the inverter on the mounting plate
742.641 | 11.43
Screw the mounting plate to the mounting surface using 4

screws:
Use screws (and dowels etc.) appropriate for the weight of
–
the inverter.
The mounting plate must lie flat on the mounting surface
–
and the metal strips at the sides must point forwards (Fig.
left).
Install the mounting plate vertically with the safety plate 
–
at the top (Fig. left).
Note
More information on determining the optimum position
for the mounting plate is provided in the attached informa-
tion sheet.
1. Grasp the inverter by the recessed grips , position it  in
1
the middle of the mounting plate and press lightly (Fig.
left).
2
2. Lower the inverter into place :
The hooks on the rear side of the inverter slide over match-
–
ing protrusions on the mounting plate.
3
The retaining plate on the mounting plate clicks audibly
–
into place.
3. The inverter must now sit securely on the mounting plate and
can no longer be slid (upwards).
1
Note
The procedure for removing the inverter from the mount-
1
ing plate is described in 8.9, p. 59.
EN
53
