Identification

General information
Feature
Type
Issue version of the manual
Manufacturer's address
Certificates
Optional accessories
Tab. 1: Identifying characteristics of the inverter

Type plate

Company:
Art. number: 742.644
4
Model: High Efficiency 3.6
DC Input:
Voltage: 350 - 800V
3
MPP Voltage: 300 - 650V
Current: max. 10A
According to: VDE 0126-1-1
2
1

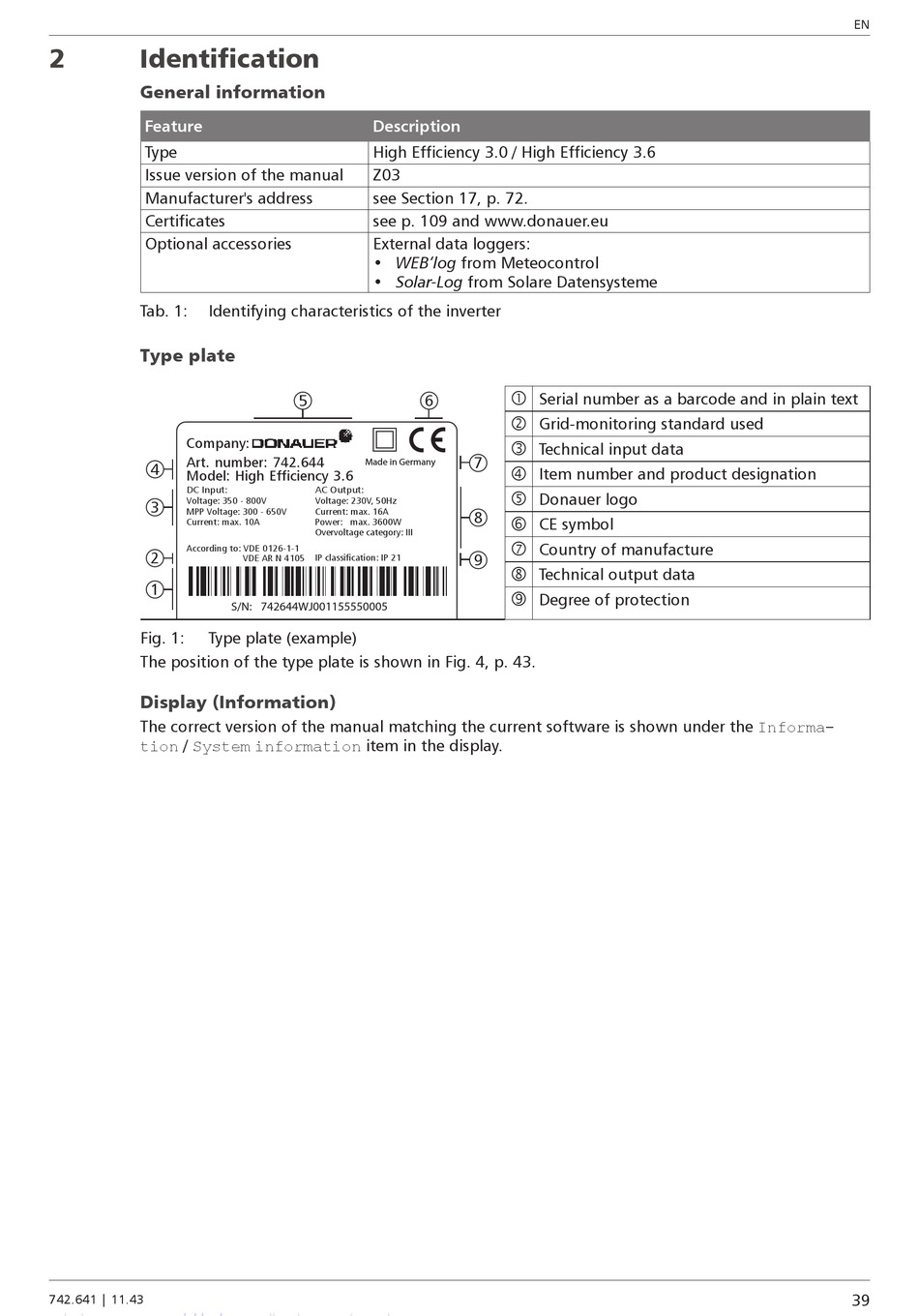

Fig. 1: Type plate (example)
The position of the type plate is shown in Fig. 4, p. 43.
Display (Information)
The correct version of the manual matching the current software is shown under the Informa-
tion / System information item in the display.
742.641 | 11.43
Description
High Efficiency 3.0 / High Efficiency 3.6
Z03
see Section 17, p. 72.
see p. 109 and www.donauer.eu
External data loggers:
• WEB'log from Meteocontrol
• Solar-Log from Solare Datensysteme
5
Made in Germany
AC Output:
Voltage: 230V, 50Hz
Current: max. 16A
Power: max. 3600W
Overvoltage category: III
VDE AR N 4105 IP classification: IP 21
S/N: 742644WJ001155550005
S/N: 742644WJ001155550005

Serial number as a barcode and in plain text
6

Grid-monitoring standard used

Technical input data
7

Item number and product designation

Donauer logo
8

CE symbol

Country of manufacture
9

Technical output data

Degree of protection
