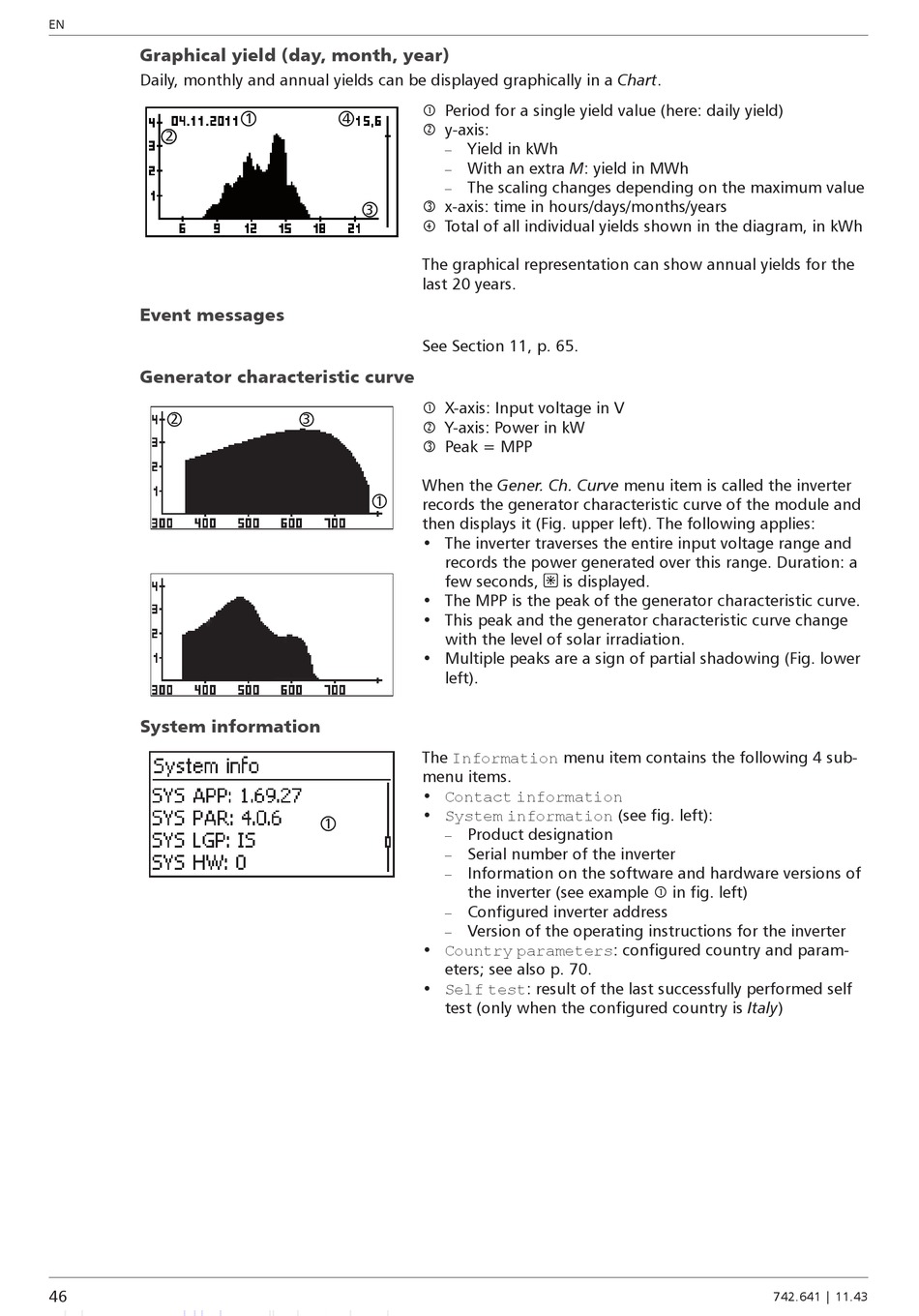

Graphical yield (day, month, year)
Daily, monthly and annual yields can be displayed graphically in a Chart.
2 2

Event messages

Generator characteristic curve
2
System information
46
1
4
3
3
1
1
 Period for a single yield value (here: daily yield)
 y-axis:
Yield in kWh
–
With an extra M: yield in MWh
–
The scaling changes depending on the maximum value
–
 x-axis: time in hours/days/months/years
 Total of all individual yields shown in the diagram, in kWh
The graphical representation can show annual yields for the
last 20 years.
See Section 11, p. 65.
 X-axis: Input voltage in V
 Y-axis: Power in kW
 Peak = MPP
When the Gener. Ch. Curve menu item is called the inverter
records the generator characteristic curve of the module and
then displays it (Fig. upper left). The following applies:
• The inverter traverses the entire input voltage range and
records the power generated over this range. Duration: a
few seconds, is displayed.
• The MPP is the peak of the generator characteristic curve.
• This peak and the generator characteristic curve change
with the level of solar irradiation.
• Multiple peaks are a sign of partial shadowing (Fig. lower
left).
The Information menu item contains the following 4 sub-
menu items.

• Contact information

• System information (see fig. left):
Product designation
–
Serial number of the inverter
–
Information on the software and hardware versions of
–
the inverter (see example  in fig. left)
Configured inverter address
–
Version of the operating instructions for the inverter
–
• Country parameters: configured country and param-
eters; see also p. 70.
• Self test: result of the last successfully performed self
test (only when the configured country is Italy)
