Scope of delivery

• High Efficiency 3.0/3.6
• Wall bracket
• AC plug
• Installation and operating instructions

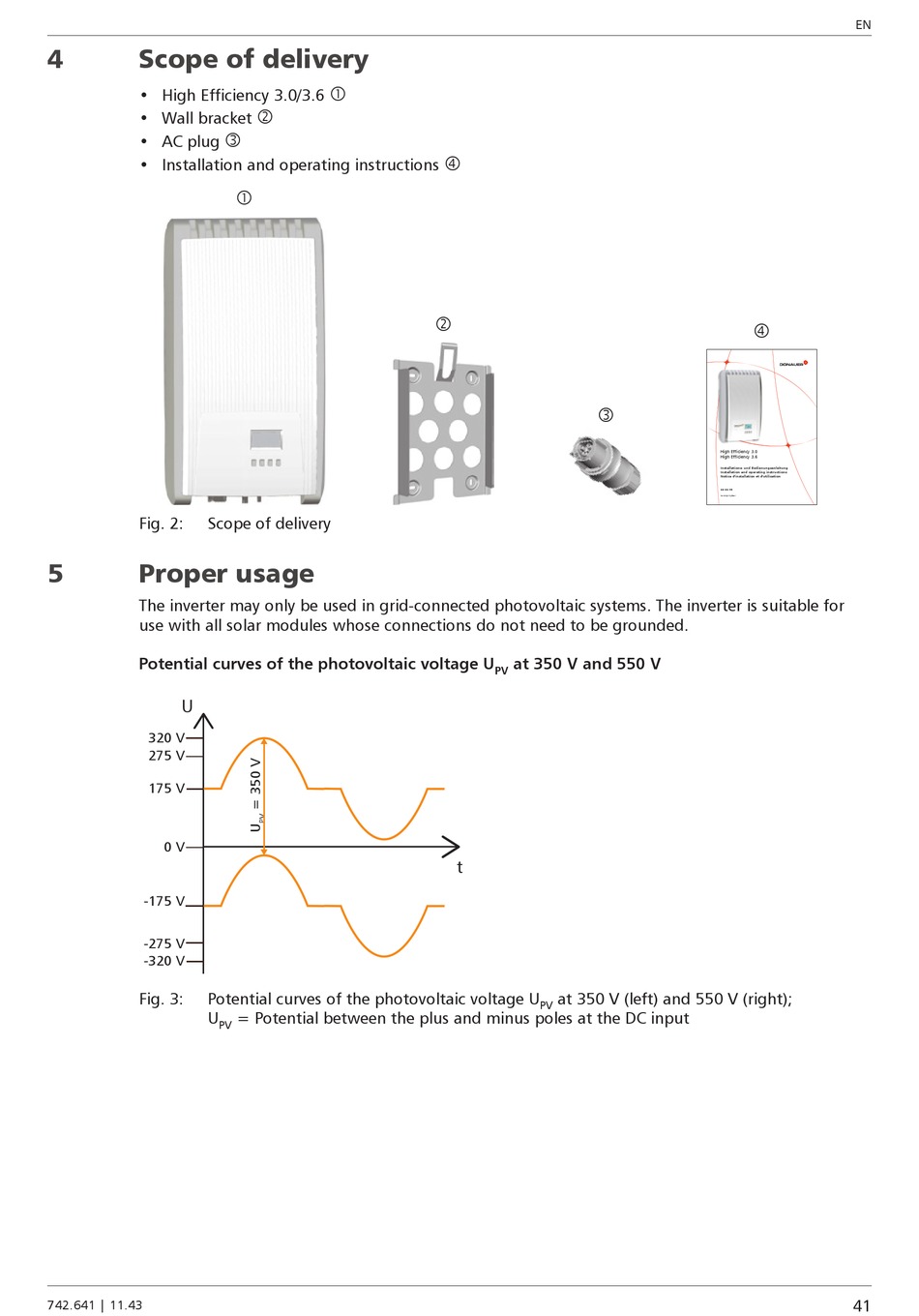

Fig. 2: Scope of delivery
5

Proper usage

The inverter may only be used in grid-connected photovoltaic systems. The inverter is suitable for
use with all solar modules whose connections do not need to be grounded.
Potential curves of the photovoltaic voltage U
U
320 V
275 V
175 V
0 V
-175 V
-275 V
-320 V
Fig. 3: Potential curves of the photovoltaic voltage U
U
PV
742.641 | 11.43




= Potential between the plus and minus poles at the DC input



at 350 V and 550 V
PV
t
at 350 V (left) and 550 V (right);
PV
