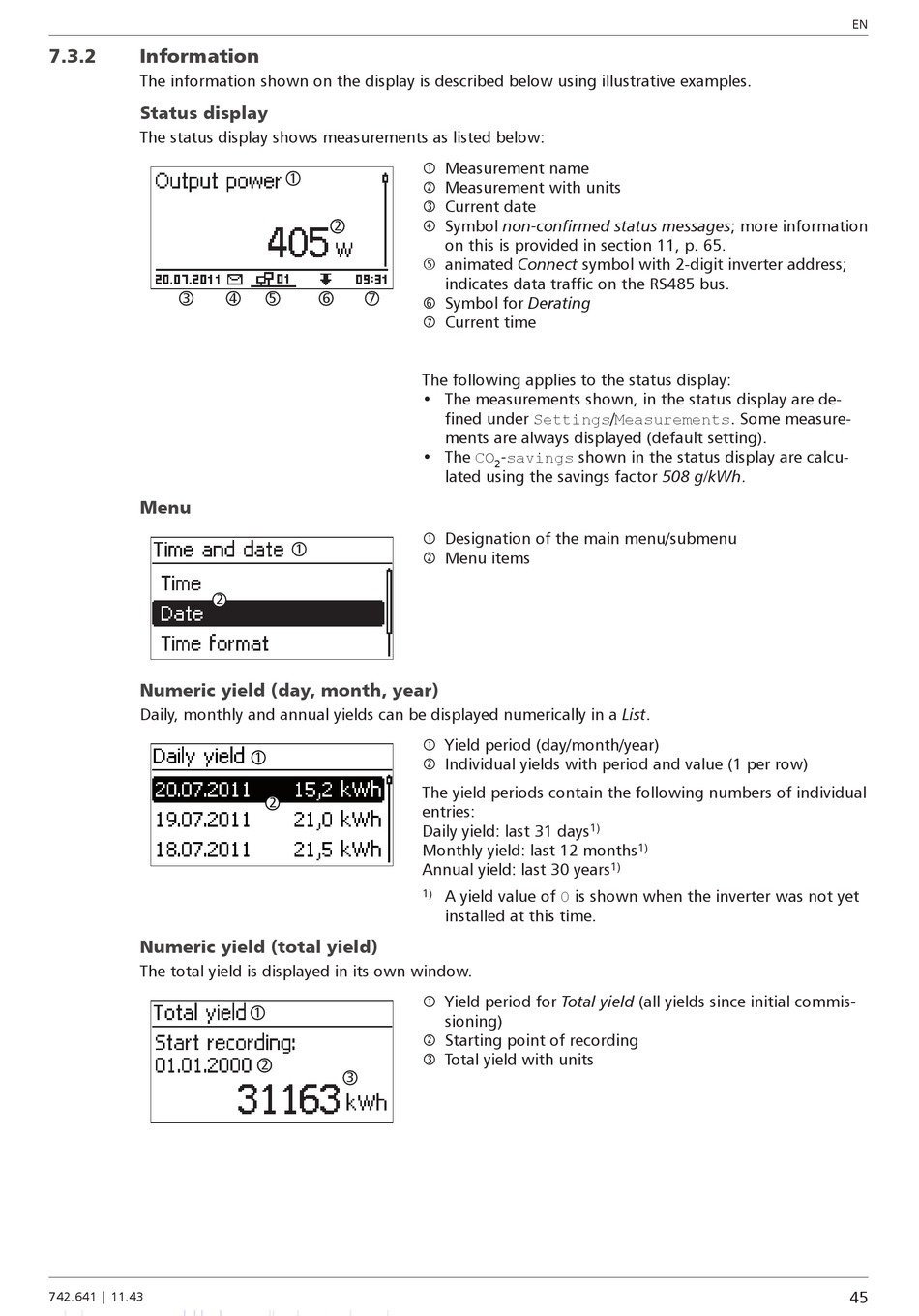

7.3.2 Information
The information shown on the display is described below using illustrative examples.

Status display

The status display shows measurements as listed below:
3
Menu
2
Numeric yield (day, month, year)
Daily, monthly and annual yields can be displayed numerically in a List.
Numeric yield (total yield)
The total yield is displayed in its own window.
742.641 | 11.43
1
2 2
4 5 6 7
1
1
2
1
2 2
3
 Measurement name
 Measurement with units
 Current date
 Symbol non-confirmed status messages; more information
on this is provided in section 11, p. 65.
 animated Connect symbol with 2-digit inverter address;
indicates data traffic on the RS485 bus.
 Symbol for Derating
 Current time
The following applies to the status display:
• The measurements shown, in the status display are de-
fined under Settings/Measurements. Some measure-
ments are always displayed (default setting).
• The CO
-savings shown in the status display are calcu-
2
lated using the savings factor 508 g/kWh.
 Designation of the main menu/submenu
 Menu items
 Yield period (day/month/year)
 Individual yields with period and value (1 per row)
The yield periods contain the following numbers of individual
entries:
Daily yield: last 31 days 1)
Monthly yield: last 12 months
Annual yield: last 30 years
A yield value of 0 is shown when the inverter was not yet
1)
installed at this time.
 Yield period for Total yield (all yields since initial commis-
sioning)
 Starting point of recording
 Total yield with units
1)
1)
