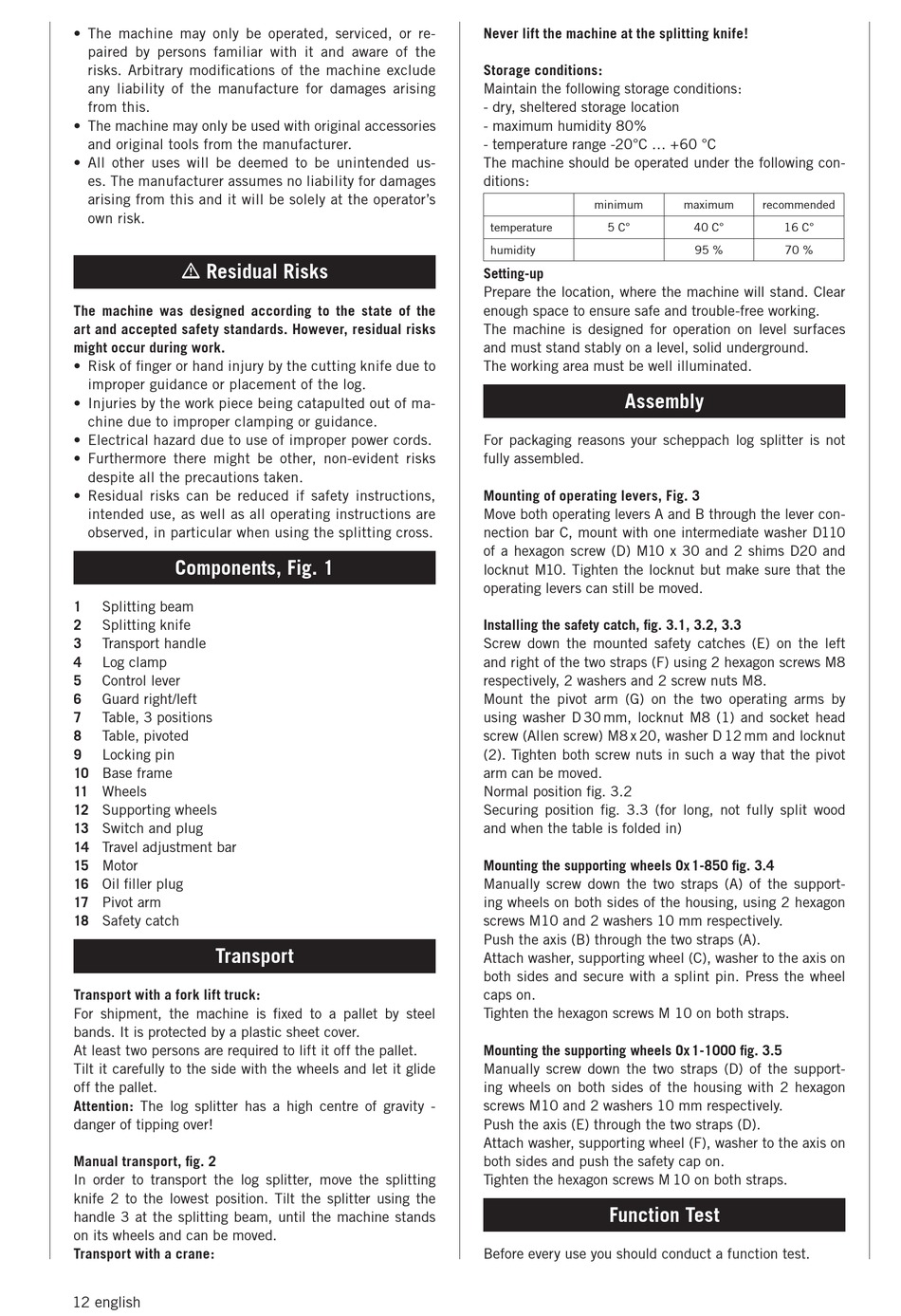

• The machine may only be operated, serviced, or re-
paired by persons familiar with it and aware of the
risks. Arbitrary modifications of the machine exclude
any liability of the manufacture for damages arising
from this.
• The machine may only be used with original accessories
and original tools from the manufacturer.
• All other uses will be deemed to be unintended us-
es. The manufacturer assumes no liability for damages
arising from this and it will be solely at the operator's
own risk.
m Residual Risks
The machine was designed according to the state of the
art and accepted safety standards. However, residual risks
might occur during work.
• Risk of finger or hand injury by the cutting knife due to
improper guidance or placement of the log.
• Injuries by the work piece being catapulted out of ma-
chine due to improper clamping or guidance.
• Electrical hazard due to use of improper power cords.
• Furthermore there might be other, non-evident risks
despite all the precautions taken.
• Residual risks can be reduced if safety instructions,
intended use, as well as all operating instructions are
observed, in particular when using the splitting cross.
Components, Fig. 1
1 Splitting beam
2 Splitting knife
3 Transport handle
4 Log clamp
5 Control lever
6 Guard right/left
7 Table, 3 positions
8 Table, pivoted
9 Locking pin
10 Base frame
11 Wheels
12 Supporting wheels
13 Switch and plug
14 Travel adjustment bar
15 Motor
16 Oil filler plug
17 Pivot arm
18 Safety catch
Transport
Transport with a fork lift truck:
For shipment, the machine is fixed to a pallet by steel
bands. It is protected by a plastic sheet cover.
At least two persons are required to lift it off the pallet.
Tilt it carefully to the side with the wheels and let it glide
off the pallet.
Attention: The log splitter has a high centre of gravity -
danger of tipping over!
Manual transport, fig. 2
In order to transport the log splitter, move the splitting
knife 2 to the lowest position. Tilt the splitter using the
handle 3 at the splitting beam, until the machine stands
on its wheels and can be moved.
Transport with a crane:
12 english
Never lift the machine at the splitting knife!
Storage conditions:
Maintain the following storage conditions:
- dry, sheltered storage location
- maximum humidity 80%
- temperature range -20°C ... +60 °C
The machine should be operated under the following con-
ditions:
minimum
temperature 5 C°
humidity
Setting-up
Prepare the location, where the machine will stand. Clear
enough space to ensure safe and trouble-free working.
The machine is designed for operation on level surfaces
and must stand stably on a level, solid underground.
The working area must be well illuminated.
Assembly
For packaging reasons your scheppach log splitter is not
fully assembled.
Mounting of operating levers, Fig. 3
Move both operating levers A and B through the lever con-
nection bar C, mount with one intermediate washer D110
of a hexagon screw (D) M10 x 30 and 2 shims D20 and
locknut M10. Tighten the locknut but make sure that the
operating levers can still be moved.
Installing the safety catch, fig. 3.1, 3.2, 3.3
Screw down the mounted safety catches (E) on the left
and right of the two straps (F) using 2 hexagon screws M8
respectively, 2 washers and 2 screw nuts M8.
Mount the pivot arm (G) on the two operating arms by
using washer D 30 mm, locknut M8 (1) and socket head
screw (Allen screw) M8 x 20, washer D 12 mm and locknut
(2). Tighten both screw nuts in such a way that the pivot
arm can be moved.
Normal position fig. 3.2
Securing position fig. 3.3 (for long, not fully split wood
and when the table is folded in)
Mounting the supporting wheels Ox 1-850 fig. 3.4
Manually screw down the two straps (A) of the support-
ing wheels on both sides of the housing, using 2 hexagon
screws M10 and 2 washers 10 mm respectively.
Push the axis (B) through the two straps (A).
Attach washer, supporting wheel (C), washer to the axis on
both sides and secure with a splint pin. Press the wheel
caps on.
Tighten the hexagon screws M 10 on both straps.
Mounting the supporting wheels Ox 1-1000 fig. 3.5
Manually screw down the two straps (D) of the support-
ing wheels on both sides of the housing with 2 hexagon
screws M10 and 2 washers 10 mm respectively.
Push the axis (E) through the two straps (D).
Attach washer, supporting wheel (F), washer to the axis on
both sides and push the safety cap on.
Tighten the hexagon screws M 10 on both straps.

Function Test

Before every use you should conduct a function test.
maximum recommended
40 C° 16 C°
95 % 70 %
