PCL Air and AdBlue Tower
Coin vault
Drawer
25mm max
www.pclairtechnology.com

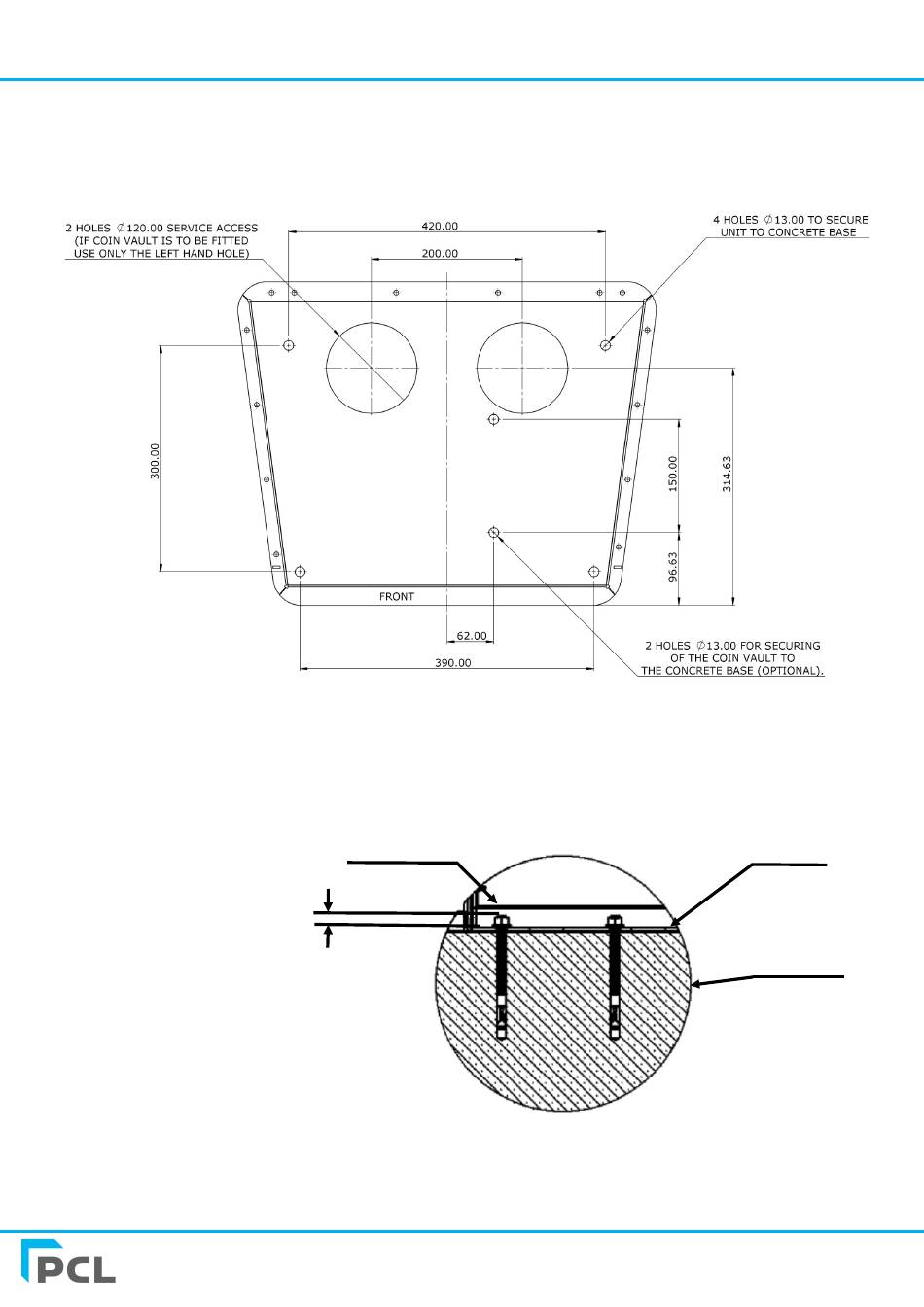

The hole template for mounting the cabinet to the floor.
Use 12mm mechanical anchor bolts or similar.
For units without coin vault fitted use the four outer fixing holes and
either service entry hole can be used.
If coin vault is used 2 extra holes are required for securing vault and
only the left-hand service entry hole can be used.
When coin vault is fitted the two bolts must not exceed 25mm
above the concrete base, this allows the drawer to operate with-
out interference.
Coin vault
base
Concrete base
