PCL Air and AdBlue Tower

General Specifications

Max operating pressure:
Min operating pressure:
Display resolution:
Units of measurement:
Max permissible error (MPE):
Voltage and power:
Operating temperature range:
Max weight:
Max overall dimensions (w x d x h)
(with boom):
(without boom):
Maximum Sound Level Pressure:
Ingress Protection rating:
Installation
In order to provide a trouble free operation it is necessary to
connect the power supply from the main switchboard with a MAX
10amp fuse/RCB protection device. This must be grounded.
The circuit breaker should be marked as the disconnecting device
for the equipment.
The compressor producing the air should have the necessary
water and dirt filtration, to minimise accumulation of debris at the
inflator line filter strainer.
For efficient tyre inflation, ensure that the air supply is 10 psi, 0.7
bar or 70kpa above the intended maximum inflation range.
Inside installations
Use 3 pin connecting plugs or 2 pin + Earth with the Earth Ground
wire installed on electrical infrastructure.
Outdoor installations
The unit can be connected to an earth conductor or conducting
metal work (metal pipe conduit or sheathing) which has equi-
potential bonding to the main Earthing point of the installation.
The unit is designed to run with the earth connection installed.
"According to Class 1 - Basic insulation in conjunction with
protective Earthing"
80psi / 5.50 bar / 550kPa
4 psi / 0.3 bar / 30 kPa
1 psi / 0.1 bar / 10 kPa
psi / bar / kPa / kg/cm
0.08 bar
see product rating label
-10 °C to +40 °C
120 kg
550mm x 650mm x 2165mm
550mm x 650mm x 1200mm
80dBa
IP44, suitable for outdoor
installation
www.pclairtechnology.com

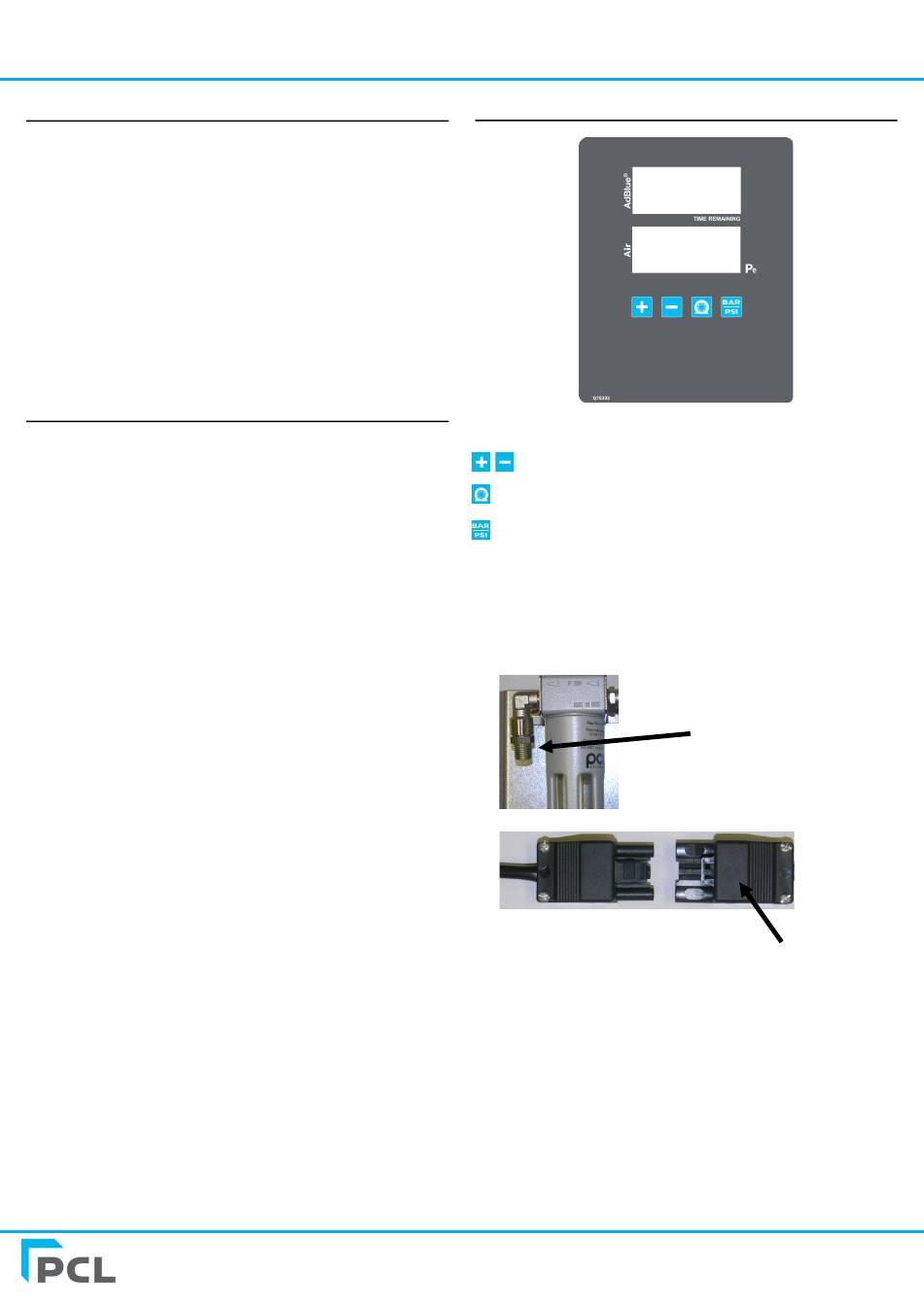

Control Panel

4 user touch type buttons
Key Legend
Increase or decrease to set pressure
Start flat tyre inflation
Switch pressure unit
Note:
Key legend above is for standard PCL decal, symbols used may
vary by individual part number but functionality remains the same
Air supply port
R1/4
(Mains air only)
Electrical supply
ST-18 Socket
