- Remove the nut (7) and the ring (8).
- Remove the end plate (9) as well as the swathboard.
- Slide the mower elements and intermediate spacers from
the connecting rod (3).
Assembly of the cutter bar takes place in the reversed order.
Mind the directions listed hereafter.
- Clean the centring rings (10) and the contact areas of the
mower elements and intermediate spacers.
- Make sure that there is no contamination between those
elements and spacers which were not dismounted.

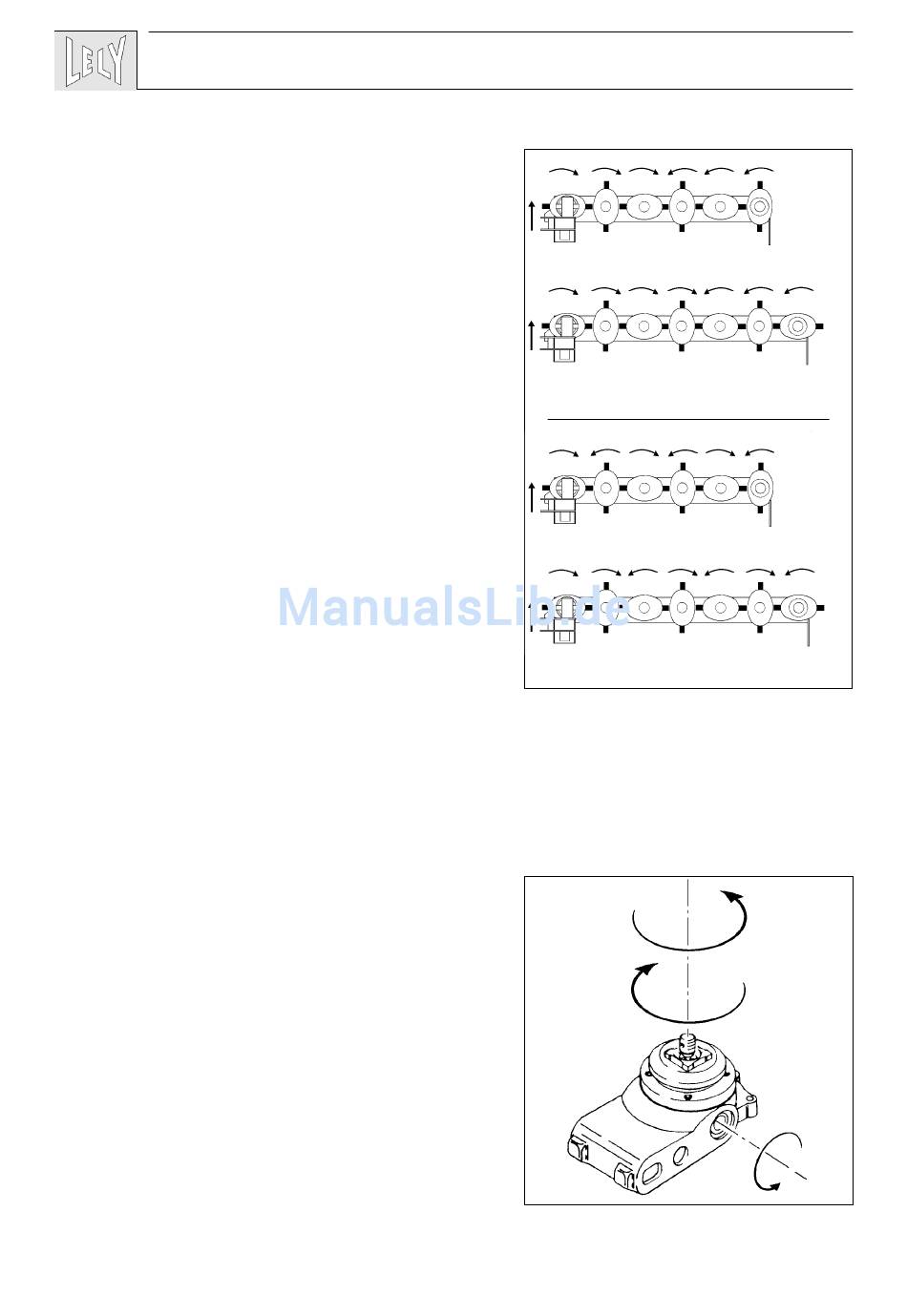

- Fit the elements in the standard configuration of directions
of rotation (fig. A-3) or in a configuration at your choice.
• A RH rotation SPLENDIMO TC mower/ conditioner
element can be identified as follows.
When the hub is turned to the right (R, fig. A-4) the drive
gear on the RH side will turn anti-clockwise (viewed
from the rear).
• A LH rotation element can be identified as follows.
When the hub is turned to the left (L, fig. A-4), the drive
gear on the RH side will also turn anti-clockwise
Make sure that the mower discs are turned 90° in respect
!
of one another. If a unit can not be slid onto the drive shaft
in one go, its disc needs to be turned a semi-turn one or
several times until the unit can be placed.
- After disassembly of a mower disc, check the following:
Castellated nut: check the presence of the O-ring in the
pressure piece.
- Tighten the castellated nut (12, fig. A-1) with a torque of
150-250 Nm (15-25 kgm) and secure it with a split pin.
Make sure that the split pin does not protrude above the
pressure piece.
- The securing disc (13) and supporting ring have to be fitted
in the outer mowing element. If this element is replaced,
these parts need to be moved over to the new unit.
- Apply some grease (Molykote BR 2 Plus) to the ring (8) as
well as to the threaded part of the connecting rod (3) and
nut (7). Fit the nut on the rod.
Supplement A
SPLENDIMO 240 TCS
SPLENDIMO 280 TCS
SPLENDIMO 240 TCN
SPLENDIMO 280 TCN
L
R
45
A-3
A-4
