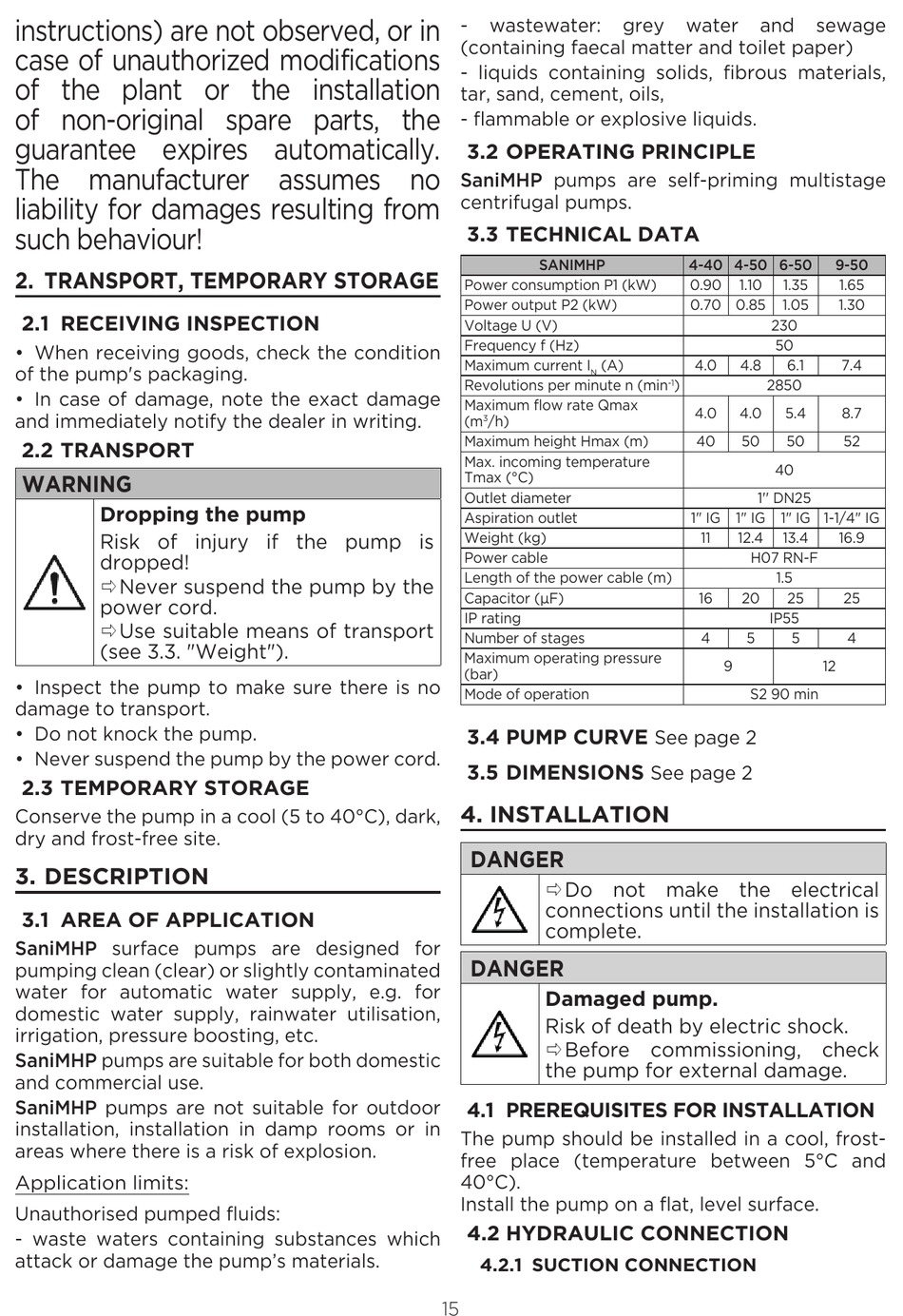

instructions) are not observed, or in
case of unauthorized modifications
of the plant or the installation
of non-original spare parts, the
guarantee expires automatically.
The manufacturer assumes no
liability for damages resulting from
such behaviour!
2. TRANSPORT, TEMPORARY STORAGE
2.1 RECEIVING INSPECTION
• When receiving goods, check the condition
of the pump's packaging.
• In case of damage, note the exact damage
and immediately notify the dealer in writing.
2.2 TRANSPORT
WARNING
Dropping the pump
Risk of injury if the pump is
dropped!
ÖNever suspend the pump by the
power cord.
ÖUse suitable means of transport
(see 3.3. "Weight").
• Inspect the pump to make sure there is no
damage to transport.
• Do not knock the pump.
• Never suspend the pump by the power cord.
2.3 TEMPORARY STORAGE
Conserve the pump in a cool (5 to 40°C), dark,
dry and frost-free site.
3. DESCRIPTION
3.1 AREA OF APPLICATION
SaniMHP surface pumps are designed for
pumping clean (clear) or slightly contaminated
water for automatic water supply, e.g. for
domestic water supply, rainwater utilisation,
irrigation, pressure boosting, etc.
SaniMHP pumps are suitable for both domestic
and commercial use.
SaniMHP pumps are not suitable for outdoor
installation, installation in damp rooms or in
areas where there is a risk of explosion.
Application limits:
Unauthorised pumped fluids:
- waste waters containing substances which
attack or damage the pump's materials.
-
wastewater:
(containing faecal matter and toilet paper)
- liquids containing solids, fibrous materials,
tar, sand, cement, oils,
- flammable or explosive liquids.
3.2 OPERATING PRINCIPLE
SaniMHP pumps are self-priming multistage
centrifugal pumps.
3.3 TECHNICAL DATA
SANIMHP
Power consumption P1 (kW)
Power output P2 (kW)
Voltage U (V)
Frequency f (Hz)
Maximum current I
(A)
N
Revolutions per minute n (min
Maximum flow rate Qmax
(m
/h)
3
Maximum height Hmax (m)
Max. incoming temperature
Tmax (°C)
Outlet diameter
Aspiration outlet
Weight (kg)
Power cable
Length of the power cable (m)
Capacitor (µF)
IP rating
Number of stages
Maximum operating pressure
(bar)
Mode of operation
3.4 PUMP CURVE
3.5 DIMENSIONS
4. INSTALLATION
DANGER
ÖDo not make the electrical
connections until the installation is
complete.
DANGER
Damaged pump.
Risk of death by electric shock.
ÖBefore commissioning, check
the pump for external damage.
4.1 PREREQUISITES FOR INSTALLATION
The pump should be installed in a cool, frost-
free place (temperature between 5°C and
40°C).
Install the pump on a flat, level surface.
4.2 HYDRAULIC CONNECTION
4.2.1 SUCTION CONNECTION
15
grey
water
and
4-40 4-50 6-50
0.90
1.10
1.35
0.70 0.85
1.05
230
50
4.0
4.8
6.1
)
2850
-1
4.0
4.0
5.4
40
50
50
40
1'' DN25
1" IG 1" IG 1" IG 1-1/4" IG
11
12.4
13.4
H07 RN-F
1.5
16
20
25
IP55
4
5
5
9
S2 90 min
See page 2
See page 2
sewage
9-50
1.65
1.30
7.4
8.7
52
16.9
25
4
12
