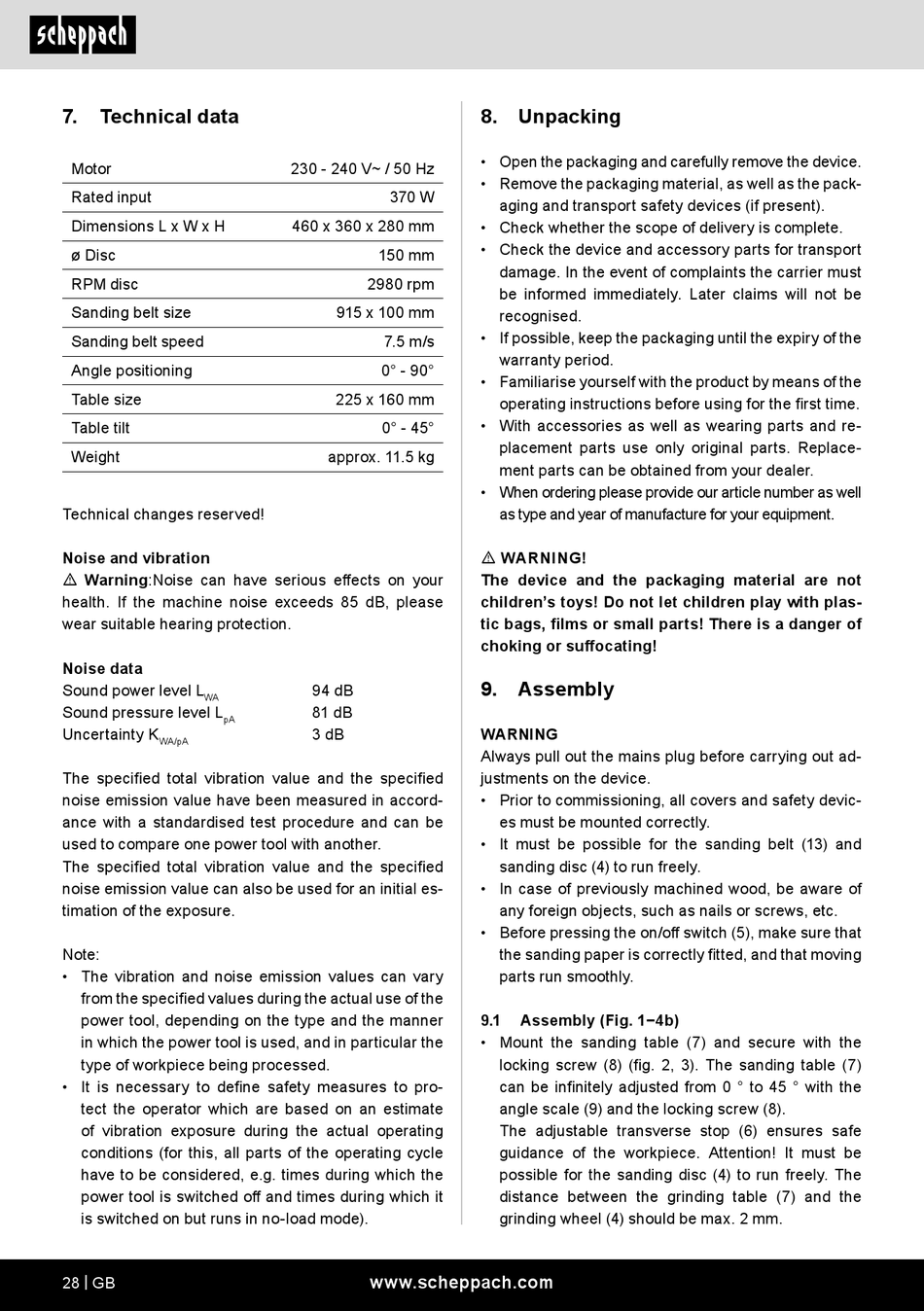

Scheppach 5903306901 Originalbetriebsanleitung Seite 28

7. Technical data
Motor
Rated input
Dimensions L x W x H
ø Disc
RPM disc
Sanding belt size
Sanding belt speed
Angle positioning
Table size
Table tilt
Weight
Technical changes reserved!
Noise and vibration
m Warning:Noise can have serious effects on your
health. If the machine noise exceeds 85 dB, please
wear suitable hearing protection.
Noise data
Sound power level L
WA
Sound pressure level L
pA
Uncertainty K
WA/pA
The specified total vibration value and the specified
noise emission value have been measured in accord-
ance with a standardised test procedure and can be
used to compare one power tool with another.
The specified total vibration value and the specified
noise emission value can also be used for an initial es-
timation of the exposure.
Note:
• The vibration and noise emission values can vary
from the specified values during the actual use of the
power tool, depending on the type and the manner
in which the power tool is used, and in particular the
type of workpiece being processed.
• It is necessary to define safety measures to pro-
tect the operator which are based on an estimate
of vibration exposure during the actual operating
conditions (for this, all parts of the operating cycle
have to be considered, e.g. times during which the
power tool is switched off and times during which it
is switched on but runs in no-load mode).
28 | GB
230 - 240 V~ / 50 Hz
370 W
460 x 360 x 280 mm
150 mm
2980 rpm
915 x 100 mm
7.5 m/s
0° - 90°
225 x 160 mm
0° - 45°
approx. 11.5 kg
94 dB
81 dB
3 dB
www.scheppach.com
8. Unpacking
• Open the packaging and carefully remove the device.
• Remove the packaging material, as well as the pack-
aging and transport safety devices (if present).
• Check whether the scope of delivery is complete.
• Check the device and accessory parts for transport
damage. In the event of complaints the carrier must
be informed immediately. Later claims will not be
recognised.
• If possible, keep the packaging until the expiry of the
warranty period.
• Familiarise yourself with the product by means of the
operating instructions before using for the first time.
• With accessories as well as wearing parts and re-
placement parts use only original parts. Replace-
ment parts can be obtained from your dealer.
• When ordering please provide our article number as well
as type and year of manufacture for your equipment.
m WARNING!
The device and the packaging material are not
children's toys! Do not let children play with plas-
tic bags, films or small parts! There is a danger of
choking or suffocating!
9. Assembly
WARNING
Always pull out the mains plug before carrying out ad-
justments on the device.
• Prior to commissioning, all covers and safety devic-
es must be mounted correctly.
• It must be possible for the sanding belt (13) and
sanding disc (4) to run freely.
• In case of previously machined wood, be aware of
any foreign objects, such as nails or screws, etc.
• Before pressing the on/off switch (5), make sure that
the sanding paper is correctly fitted, and that moving
parts run smoothly.
9.1 Assembly (Fig. 1−4b)
• Mount the sanding table (7) and secure with the
locking screw (8) (fig. 2, 3). The sanding table (7)
can be infinitely adjusted from 0 ° to 45 ° with the
angle scale (9) and the locking screw (8).
The adjustable transverse stop (6) ensures safe
guidance of the workpiece. Attention! It must be
possible for the sanding disc (4) to run freely. The
distance between the grinding table (7) and the
grinding wheel (4) should be max. 2 mm.
