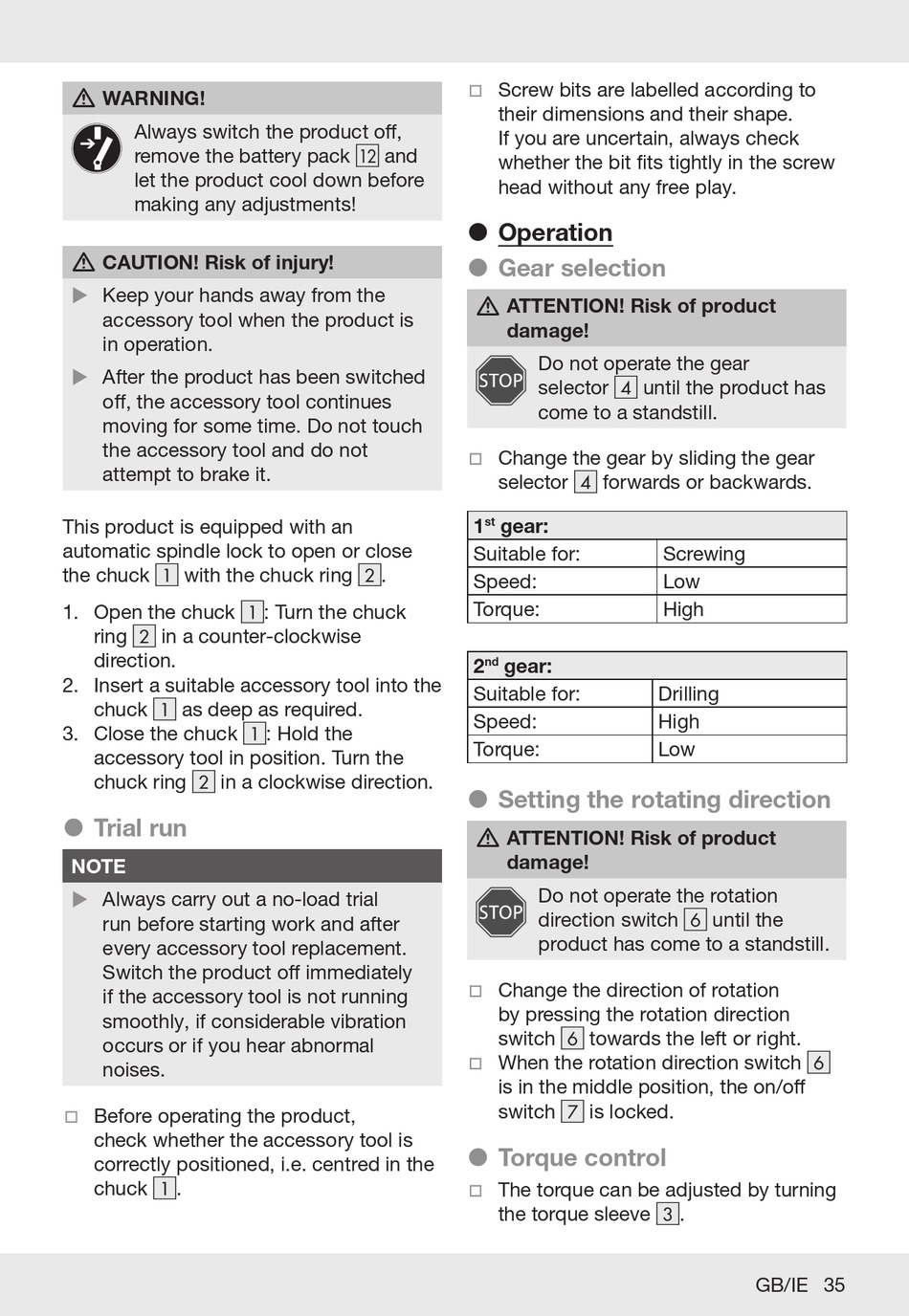

Parkside PABS 20-LI I9 Bedienungsanleitung Und Originalbetriebsanleitung Seite 37

WARNING!
m
Always switch the product off
remove the battery pack
let the product cool down before
making any adjustments!
CAUTION! Risk of injury!
m
Keep your hands away from the
u
accessory tool when the product is
in operation.
After the product has been switched
u
off the accessory tool continues
moving for some time. Do not touch
the accessory tool and do not
attempt to brake it.
This product is equipped with an
automatic spindle lock to open or close
the chuck with the chuck ring
1 ] [
1. Open the chuck
ring in a counter-clockwise
[ 2 ]
direction.
2. Insert a suitable accessory tool into the
chuck as deep as required.
1 ] [
3. Close the chuck
accessory tool in position. Turn the
chuck ring in a clockwise direction.
2 ] [
˜ Trial run
NOTE
Always carry out a no-load trial
u
run before starting work and after
every accessory tool replacement.
Switch the product off immediately
if the accessory tool is not running
smoothly, if considerable vibration
occurs or if you hear abnormal
noises.
Before operating the product,
o
check whether the accessory tool is
correctly positioned, i.e. centred in the
chuck .
[ 1 ]
and
[ ]
.
2 ] [
: Turn the chuck
1 ] [
: Hold the
1 ] [
Screw bits are labelled according to
o
their dimensions and their shape.
If you are uncertain, always check
whether the bit fits tightly in the screw
head without any free play.
˜ Operation
˜ Gear selection
ATTENTION! Risk of product
m
damage!
Do not operate the gear
selector
4 ] [
come to a standstill.
Change the gear by sliding the gear
o
selector forwards or backwards.
4 ] [
gear:
st
Suitable for:
Speed:
Torque:
2 gear:
nd
Suitable for:
Speed:
Torque:
˜ Setting the rotating direction
ATTENTION! Risk of product
m
damage!
Do not operate the rotation
direction switch
product has come to a standstill.
Change the direction of rotation
o
by pressing the rotation direction
switch towards the left or right.
6 ] [
When the rotation direction switch
o
is in the middle position the on/off
switch is locked.
7 ] [
˜ Tor e control
The torque can be adjusted by turning
o
the torque sleeve
until the product has
Screwing
Low
High
Drilling
High
Low
until the
6 ] [
6 ] [
.
3 ] [
GB/IE 35
