3 Scope of delivery

3 Scope of delivery
— 1× operator box
— 1× operating instructions
► Order the equipment parts and wear parts separately.
► The order data and ID numbers for the equipment parts and wear parts can be found in the current
catalog.
► For more information about points of contact, consultation, and orders, visit www.binzel-abicor.com.
Although the items delivered are carefully checked and packaged, it is not possible to fully rule out the risk
of transport damage.
Goods-in inspection
► Use the delivery note to check that everything has been delivered.
► Check the delivery for damage (visual inspection).
Complaints
► If goods are damaged, contact the final carrier.
► Keep the packaging for possible checks by the carrier.
Returns
► Use the original packaging and packing material for returns.
► If you have questions concerning packaging and safety during shipment, contact your supplier, carrier,
or transport company.

4 Product description

4.1 Structure and function

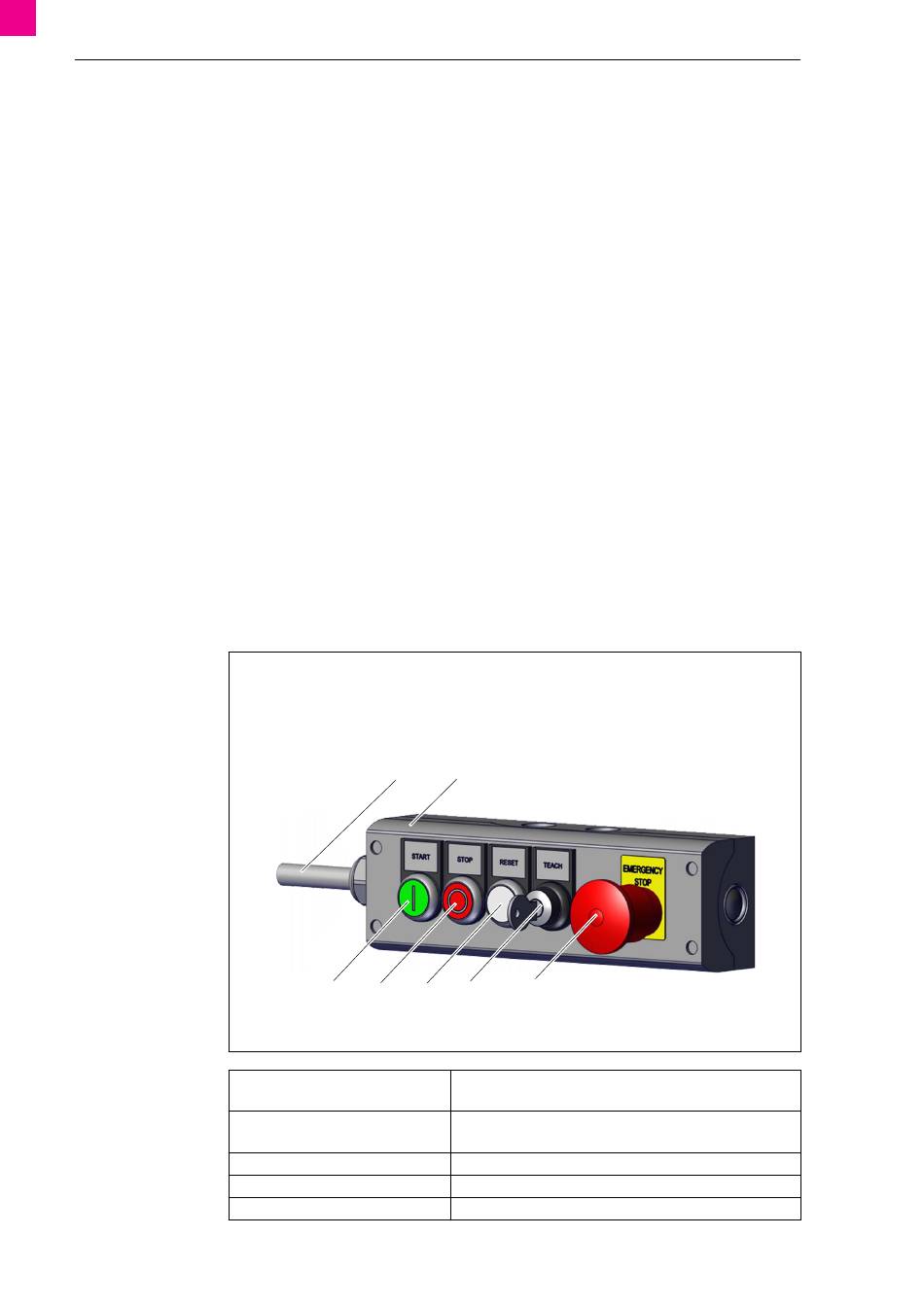

Fig. 1
A Connection cable
B Operator box
C <Emergency Stop>
D <Teach/Automatic>
Emergency stop button
<Emergency Stop> (C)
<Automatic/Teach> switch (D)
<Reset> button (E)
<Stop> button (F)
<Start> button (G)
EN - 6
Structure and function
A B
F D
G
E
Emergency stop button for interrupting the electrical power
supply in a hazardous situation.
Switch for toggling between teach (ZeroG) and automatic
mode (running a program).
Button for resetting an error.
Button for stopping a program.
Button for starting a program.
E <Reset>
F <Stop>
G <Start>
C
Operator box
