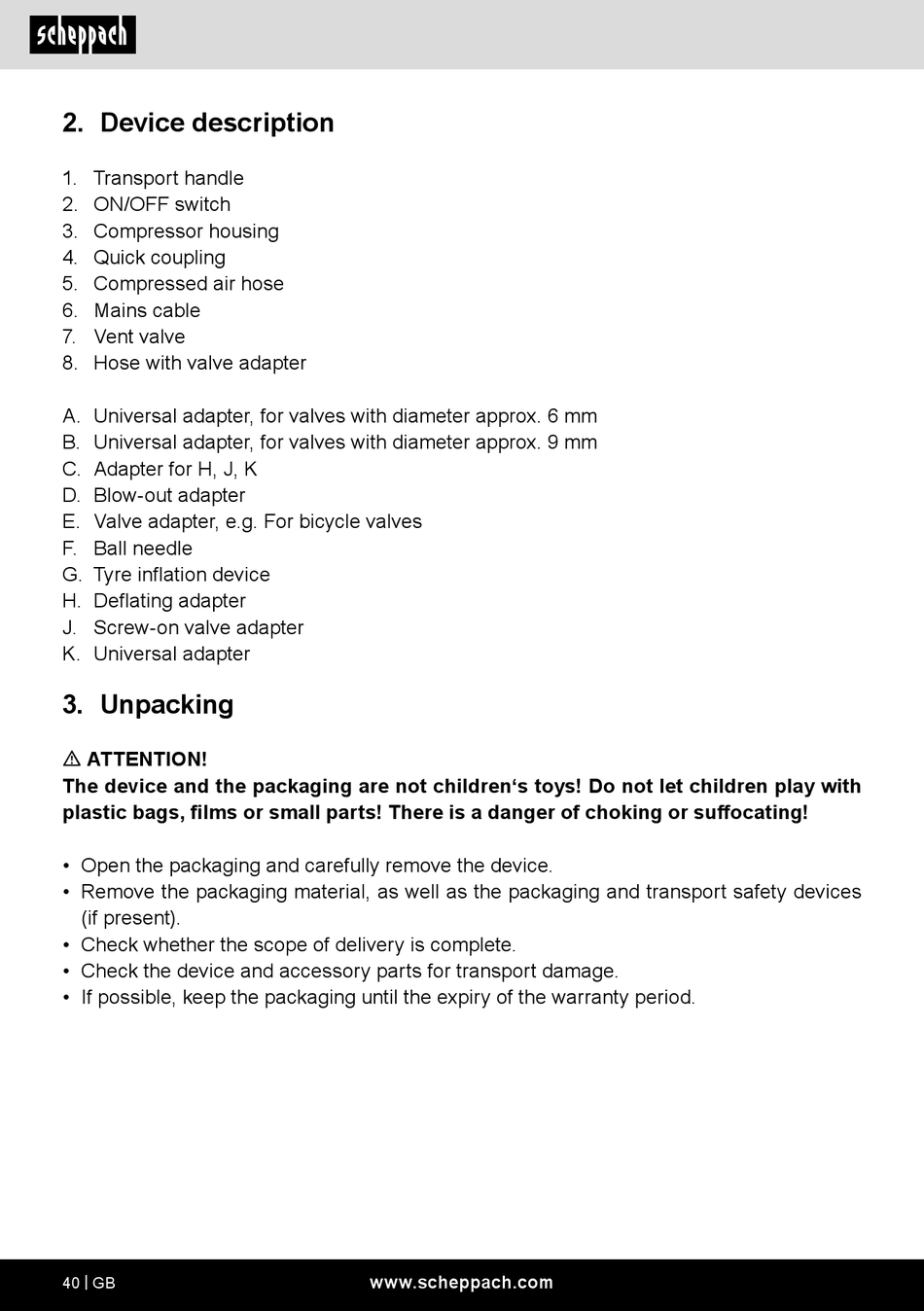

2. Device description
1. Transport handle
2. ON/OFF switch
3. Compressor housing
4. Quick coupling
5. Compressed air hose
6. Mains cable
7. Vent valve
8. Hose with valve adapter
A. Universal adapter, for valves with diameter approx. 6 mm
B. Universal adapter, for valves with diameter approx. 9 mm
C. Adapter for H, J, K
D. Blow-out adapter
E. Valve adapter, e.g. For bicycle valves
F. Ball needle
G. Tyre inflation device
H. Deflating adapter
J. Screw-on valve adapter
K. Universal adapter
3. Unpacking
m ATTENTION!
The device and the packaging are not children's toys! Do not let children play with
plastic bags, films or small parts! There is a danger of choking or suffocating!
• Open the packaging and carefully remove the device.
• Remove the packaging material, as well as the packaging and transport safety devices
(if present).
• Check whether the scope of delivery is complete.
• Check the device and accessory parts for transport damage.
• If possible, keep the packaging until the expiry of the warranty period.
