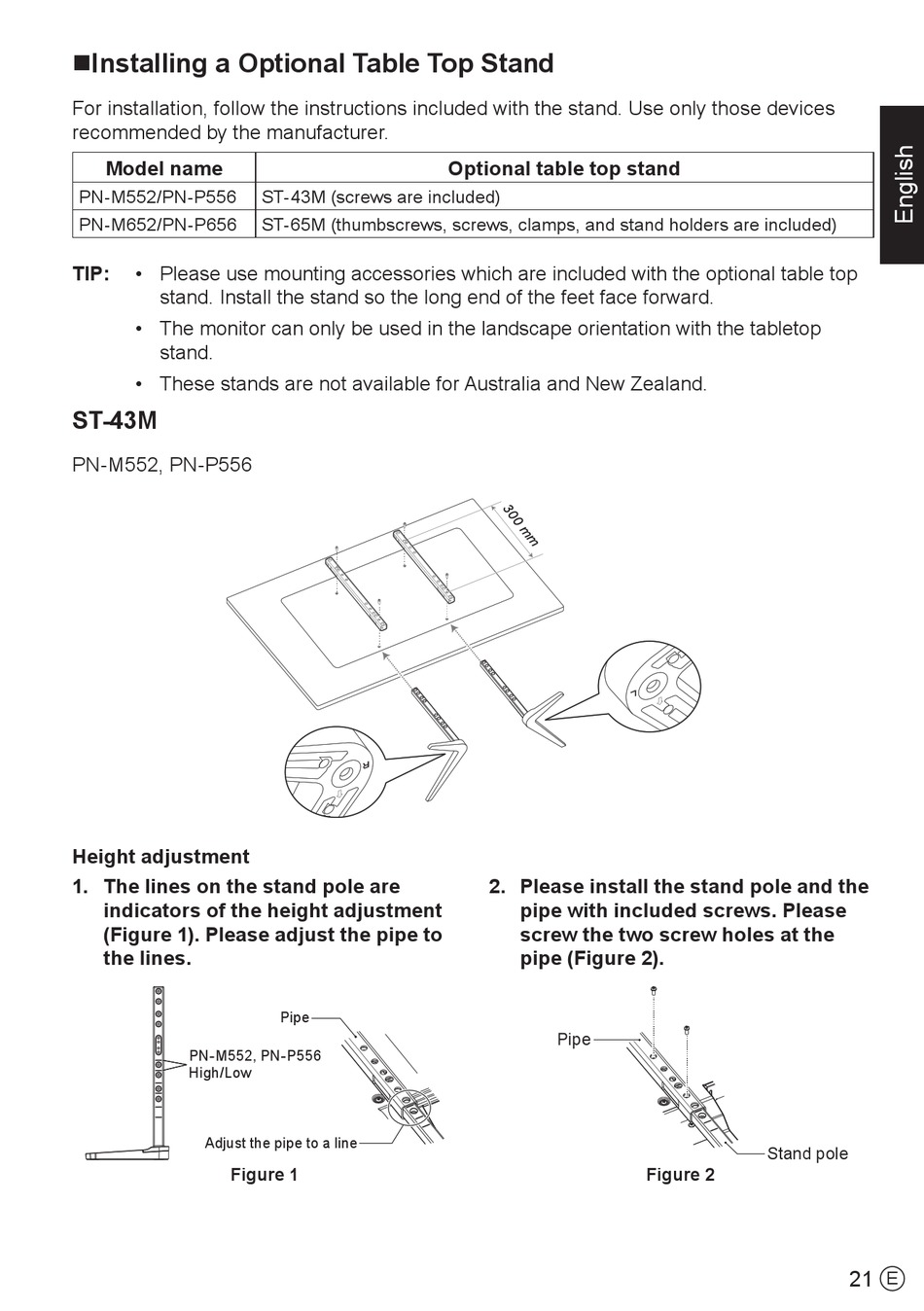

nInstalling a Optional Table Top Stand
For installation, follow the instructions included with the stand. Use only those devices
recommended by the manufacturer.
Model name
PN-M552/PN-P556
PN-M652/PN-P656
TIP:
• Please use mounting accessories which are included with the optional table top
stand. Install the stand so the long end of the feet face forward.

• The monitor can only be used in the landscape orientation with the tabletop
stand.

• These stands are not available for Australia and New Zealand.
ST-43M
PN-M552, PN-P556
Height adjustment
1. The lines on the stand pole are
indicators of the height adjustment
(Figure 1). Please adjust the pipe to
the lines.
PN-M552, PN-P556
High/Low
Adjust the pipe to a line
Figure 1
ST-43M (screws are included)
ST-65M (thumbscrews, screws, clamps, and stand holders are included)
Pipe
Optional table top stand
2. Please install the stand pole and the
pipe with included screws. Please
screw the two screw holes at the
pipe (Figure 2).
Pipe
Stand pole
Figure 2
21
E
